Home / Transmissions / Aisin Warner / Toyota / TB-61SN
Aisin Warner / Toyota Source-verified model

Aisin Warner / Toyota TB-61SN Transmission

Speeds 6
Type Automatic
Max torque 480 Nm
ATF type Toyota ATF WS
ATF capacity (L) 10.8
ATF change (L) 4.0
Weight 109 kg
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

TB-61SN
0.0/10
Support & Market Presence Index

How widely this transmission is used, documented and supported across the Go4Trans graph.

3resources
Diagram Parts Fitment Aliases Symptoms Sources Contribute

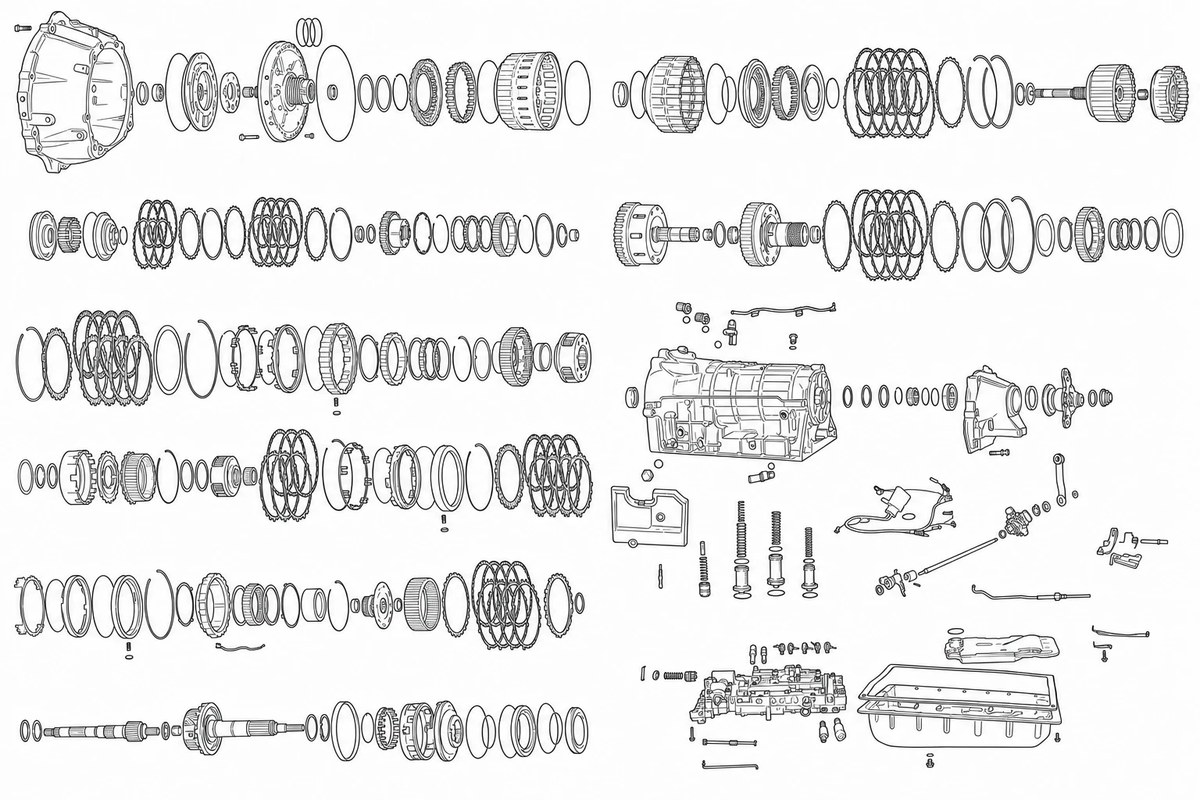

Exploded diagram & parts

Full TB-61SN parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

776 776 · No. 1 179 179 · No. 2 750 750 · No. 3 070 070 · No. 4 034 034 · No. 5 530/311 530, 311 · No. 6 530 530 · No. 7 036 +2 036, 520, 310 · No. 8 210 210 · No. 9 211 211 · No. 10 893/957 893, 957 · No. 11 339-1 +2 339-1, 966, 976 · No. 12 339 339 · No. 13 219 219 · No. 14 555 +3 555, 337, 336, 338 · No. 15 975/965 975, 965 · No. 16 985 985 · No. 17 879 879 · No. 18 126/106 126, 106 · No. 19 878/146 878, 146 · No. 20 229 +2 229, 554, 228 · No. 21 048 048 · No. 22 559 559 · No. 23 777 777 · No. 24 974/964 974, 964 · No. 25 877 +2 877, 335-1, 984 · No. 26 122/102 122, 102 · No. 27 864 +2 864, 129, 142 · No. 28 128/108 128, 108 · No. 29 148 148 · No. 30 876 876 · No. 31 232 232 · No. 32 233 233 · No. 33 571 571 · No. 34 886/283 886, 283 · No. 35 650-1 +3 650-1, 661, 650, 886 · No. 36 234 234 · No. 37 235 235 · No. 38 051 051 · No. 39 575 575 · No. 40 41 41 · No. 41 42 42 · No. 42 576/052 576, 052 · No. 43 052-1 052-1 · No. 44 130 +3 130, 110, 150, 151 · No. 45 549 +3 549, 891, 245, 854 · No. 46 285 285 · No. 47 663 663 · No. 48 652/652-1 652, 652-1 · No. 49 285/652-1 285, 652-1 · No. 50 247 247 · No. 51 144/872 144, 872 · No. 52 124/104 124, 104 · No. 53 145 145 · No. 54 332 +6 332, 962, 972, 874, 333, 632, 883 · No. 55 654-1 +3 654-1, 665, 654, 286 · No. 56 887 887 · No. 57 579 +2 579, 053, 249 · No. 58 582 582 · No. 59 996 996 · No. 60 378 378 · No. 61 996 996 · No. 62 378 378 · No. 63 370 370 · No. 64 438 438 · No. 65 490 490 · No. 66 493 493 · No. 67 262 262 · No. 68 760 760 · No. 69 263 263 · No. 70 264 264 · No. 71 265 265 · No. 72 897 897 · No. 73 270 270 · No. 74 272 272 · No. 75 272 272 · No. 76 271 271 · No. 77 770 770 · No. 78 074 074 · No. 79 841 841 · No. 80 084 084 · No. 81 798 798 · No. 82 238 238 · No. 83 240 240 · No. 84 241 241 · No. 85 602 +3 602, 590, 592, 868 · No. 86 215 215 · No. 87 216 216 · No. 88 580 580 · No. 89 610 610 · No. 90 132/112 132, 112 · No. 91 340 +5 340, 969, 341, 979, 547, 871 · No. 92 861 861 · No. 93 100 +2 100, 120, 140 · No. 94 493-1 493-1 · No. 95 388-1 388-1 · No. 96 436 436 · No. 97 370 370 · No. 98 446 446 · No. 99 781 781 · No. 100 207 207 · No. 101 797-1 797-1 · No. 102 992 992 · No. 103 797 797 · No. 104 761-4 761-4 · No. 105 761C 761C · No. 106 925 925 · No. 107 108 108 · No. 108 945 945 · No. 109 110 110 · No. 110 111 111 · No. 111 950 950 · No. 112 113 113 · No. 113 114 114 · No. 114 935 935 · No. 115 116 116 · No. 116 991-8 991-8 · No. 117 991-4 991-4 · No. 118 072 072 · No. 119 410 410 · No. 120 995-1 995-1 · No. 121 995-6 995-6 · No. 122 995-3 995-3 · No. 123 995-4 995-4 · No. 124 960 +4 960, 331, 330, 545, 970 · No. 125 890 890 · No. 126 284 284 · No. 127 658-1 +2 658-1, 658, 669 · No. 128 284-1 284-1 · No. 129 668 668 · No. 130 889 889 · No. 131 060 060 · No. 132 604 604 · No. 133 060 060 · No. 134 594 594 · No. 135 154 154 · No. 136 134/114 134, 114 · No. 137 155 155 · No. 138 253 253 · No. 139 140 140 · No. 140 141 141 · No. 141 142 142 · No. 142 143 143 · No. 143 072 072 · No. 144 991-3 991-3 · No. 145 379 379 · No. 146 994 994 · No. 147 638 638 · No. 148 149 149 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 428 428 · No. 153 453 453 · No. 154 421/426 421, 426 · No. 155 421 421 · No. 156 440 440 · No. 157 422 422 · No. 158 423 423 · No. 159 010 010 · No. 160 991-2 991-2 · No. 161 799 799 · No. 162 991-2 991-2 · No. 163 254 254 · No. 164 255 255 · No. 165 674 674 · No. 166 058/248 058, 248 · No. 167 058 058 · No. 168 584 584 · No. 169 250 250 · No. 170 251/548-1 251, 548-1 · No. 171 884 884 · No. 172 548 +2 548, 977, 967 · No. 173 328-1/329 328-1, 329 · No. 174 967-1 +3 967-1, 328-2, 329-2, 329-1 · No. 175 176 176 · No. 176 782 782 · No. 177 741M 741M · No. 178 740 740 · No. 179 450 450 · No. 180 425 425 · No. 181 300/765 300, 765 · No. 182 991-7 991-7 · No. 183 492 492 · No. 184

Parts categories

View all parts →
Kits
Kits
35 parts
Valve body & solenoids
Valve body & solenoids
37 parts
Electrical
Electrical
7 parts
Filters & pans
Filters & pans
5 parts
Seals & gaskets
Seals & gaskets
12 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
63 parts
Pump
Pump
4 parts
Friction & steel
Friction & steel
69 parts
Planetary & hard parts
Planetary & hard parts
56 parts
Hardware & other
Hardware & other
47 parts
Sell TB-61SN parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

30 applications · 7 makes · 2004–2016 Lexus 15 · Toyota 4 · Chevrolet 3 · GMC 3 · Geo 3

Make Model Year Drive Engine
Chevrolet COLORADO 2013-2014 6 Spd RWD/4X4 L4 2.8L
Chevrolet D-MAX 2013-2016 6 Spd R/4WD L4 3.0L
Chevrolet TRAILBLAZER 2012-2014 6 Spd RWD/4X4 L4 2.8L
Geo COLORADO 2013-2014 6 Spd RWD/4X4 L4 2.8L
Geo D-MAX 2013-2016 6 Spd R/4WD L4 3.0L
Geo TRAILBLAZER 2012-2014 6 Spd RWD/4X4 L4 2.8L
GMC COLORADO 2013-2014 6 Spd RWD/4X4 L4 2.8L
GMC D-MAX 2013-2016 6 Spd R/4WD L4 3.0L
GMC TRAILBLAZER 2012-2014 6 Spd RWD/4X4 L4 2.8L
Hyundai EQUUS 2009-2010 6 Spd RWD V6 3.8L
Lexus GS 2005-2011 6 Spd R/AWD V6 3.0L/3.5L
Lexus GS 2005-2011 6 Spd RWD V8 4.3L
Lexus GS300 2006-2008 6 Spd AWD V6 3.0L
Lexus GS300 2006 6 Spd RWD/AWD V6 3.0L
Lexus GS350 2007-2013 3.5
Lexus GS350 2007 6 Spd RWD/AWD V6 3.5L
Lexus GS430 2006-2007 6 Spd RWD V8 4.3L
Lexus GS430 2006-2007 4.3
Lexus IS 2005-2014 6 Spd RWD V6 2.5/3.5L
Lexus IS250 2006-2007 6 Spd AWD V6 2.5L
Lexus IS350 2006-2007 6 Spd RWD V6 3.5L
Lexus LS430 2004-2006 6 Spd RWD V8 4.3L
Lexus LS430 2004-2006 4.3
Lexus SC430 2006-2011 4.3
Lexus SC430 2006-2007 6 Spd RWD V8 4.3L
Renault MASTER 2010-2011 6 Spd R/AWD L4 2.2L
Toyota CENTURY 2005-2014 6 Spd RWD V12 5.0L
Toyota MARK II 2005-2016 6 Spd RWD V6 2.5/3.0/3.5L
Toyota MARK X 2009-2014 6 Spd RWD V6 3.5L
Toyota Sequoia 2009-2016 6 Spd R/4WD V8 4.6L

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

No aliases recorded yet — be the first to contribute one. Contribute →

verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Oil pump bushing wear/leak
Extended operation with a worn torque converter lockup clutch wears out the oil pump bushing, leading to pressure loss, seal leakage and pump noise.
?
Friction clutch slipping/burning smell
Overheated or rarely changed ATF leads to friction clutch pack slippage, lost gears and a burnt smell.
?
B1 brake clutch pack burns
The B1 brake friction pack and its steel plates are the most commonly burnt clutch components found during repair of this unit.
?
C1/C3 clutch packs burn
Depending on valve body calibration, the C1 forward clutch and C3 reverse clutch packs can burn instead of B1.
!
Torque converter lockup clutch wear
Active or aggressive driving accelerates wear of the torque converter lockup clutch, contaminating the ATF with friction debris and causing vibration or shudder.
!
Oil pump bushing and seal wear
Prolonged oil starvation and torque-converter lock-up wear first damages the oil pump bushing and seal before friction clutches start to burn.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

Sources & Contribution

＋ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
link
A760E, A760F, A760H, A761E, TB-61SN, SJ6A-EL - Toyota | Transmissions
—
View →
manual
Sonnax A750E-A761E ZIP Kit Quick Guide & Installation Booklet
—
View →
link
Diagnosing Solenoid Performance Faults in A761, AB60 & A960 6-Speed Transmissions
—
