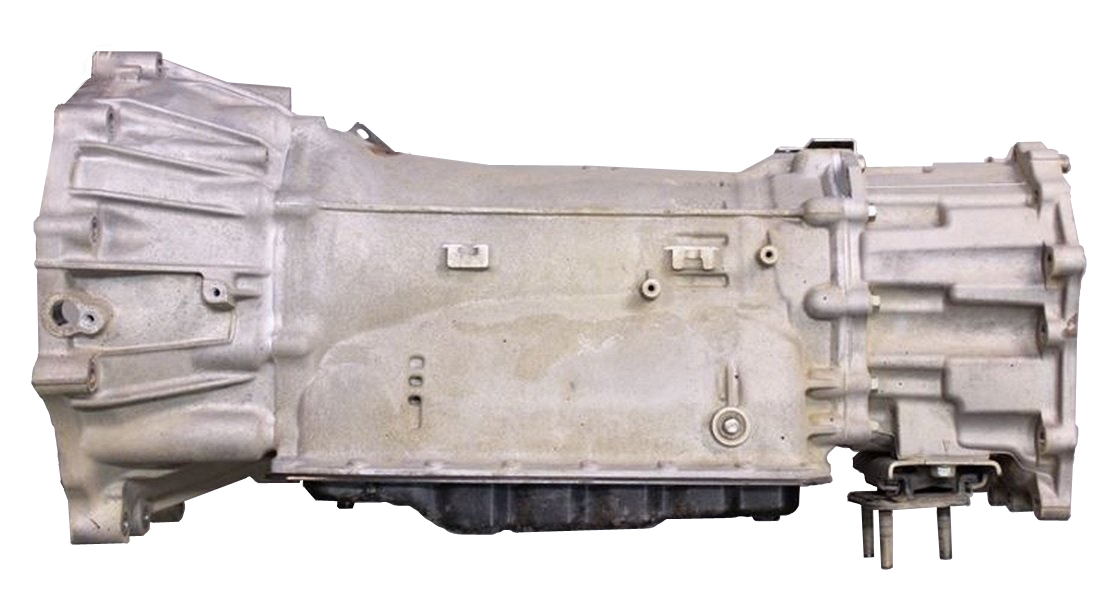

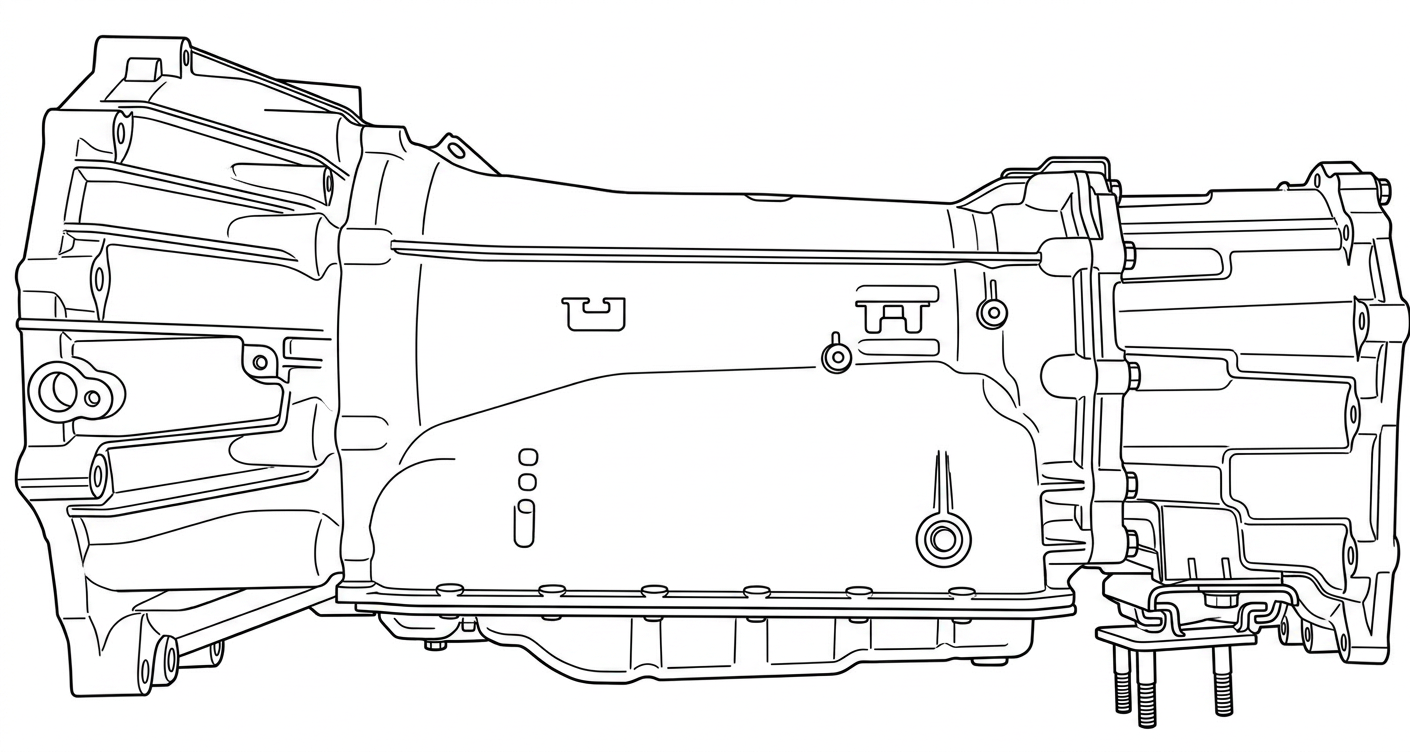

Nissan RE7R01A Transmission
The 7-speed automatic transmission RE7R01A with longitudinal positioning for rear drive (according to Jatco classification - JR710E) was produced by Jatco. It was unitized since 2009 with all engines of Infinity and Nissan from V6 3.0 liters up to V8 5.6 liters (RE7R01B \ JR711E). In addition to Infinity, this transmission is installed on the following SUVs: Nissan Fuga, Pathfinder, Patrol etc.The modification named RE7R01B (Patrol/ QX56/ M56) is intended for high torque models (up to 600 Nm), in contrast with 400 Nm for the RE7R01A.RE7R01A model is a worthy competitor on price and fuel…
Speeds
7
Type
AT
Drive
RWD/AWD
Max torque
400
ATF capacity (L)
9,2
ATF change (L)
5
ATF type
NISSAN Matic S
Browse parts → Find transmission shops
Report a mistake on this page
Contribute info
This feature is in progress and will be available soon.
6.8/10
Support & Market Presence Index
Well covered
How widely this transmission is used, documented and supported across the Go4Trans graph.
Market presence7.4
Documentation depth10.0
Knowledge & support0.0
Exploded diagram & parts
Parts categories
Marketplace products
Products listed here are sold by independent sellers approved by Go4Trans and tagged to RE7R01A in the Go4Trans marketplace.
Sell RE7R01A parts on Go4TransStart selling →
Vehicle fitment explorer
Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.
32 applications · 2 makes · 2008–2016 Infiniti 20 · Nissan 12
| Make | Model | Year | Drive | Engine |
|---|---|---|---|---|
| Infiniti | E-SEDAN | 2012-2014 | 7 Spd RWD/4X4 | V6 2.5/3.5/3.7L |
| Infiniti | EX | 2010-2012 | 7 Spd R/AWD | L4 2.0/2.2/2.5/3.5/3.7L |
| Infiniti | EX 30 | 2011-2012 | 7 Spd R/AWD | V6 3.0L |
| Infiniti | EX/QX50 | 2012-2014 | 7 Spd R/AWD | V6 2.5/3.0/3.5/3.7L |
| Infiniti | EX35 | 7 Spd R/AWD | V6 3.5L | |
| Infiniti | FX | 2008-2016 | 7 Spd R/AWD | V6 3.0/3.7L |
| Infiniti | FX/QX70 | 2009-2014 | 7 Spd RWD/4X4 | V6 3.0/3.5L V8 5.0/5.6L |
| Infiniti | FX35 | 2009-2012 | 7 Spd R/AWD | V6 3.5L |
| Infiniti | FX50/FX56 | 2009-2012 | 7 Spd AWD | V8 5.0L/5.6L |
| Infiniti | G | 2010-2012 | 7 Spd R/AWD | V6 2.5L/3.7L |
| Infiniti | G/Q60 | 2008-2016 | 7 Spd R/4WD | V6 2.5/3.7L |
| Infiniti | G25 | 2010-2012 | 7 Spd R/AWD | V6 2.5L |
| Infiniti | G37 | 2009-2012 | 7 Spd R/AWD | V6 3.7L |
| Infiniti | M/Q70 | 2009-2012 | 7 Spd R/AWD | L4 2.0/2.2 V6 2.5/3.0/3.5L |
| Infiniti | M35 | 2009 | 7 Spd R/AWD | V6 3.5L |
| Infiniti | M37 | 2009-2012 | 7 Spd R/AWD | V6 3.7L |
| Infiniti | M56 | 2010-2012 | 7 Spd R/AWD | V8 5.6L |
| Infiniti | Q50 | 2012-2016 | 7 Spd R/AWD | L4 1.6L V6 3.5/3.7L |
| Infiniti | QX/QX80 | 2010-2014 | 7 Spd RWD/4X4 | V6 3.0L V8 5.6L |
| Infiniti | QX56 | 2009-2012 | 7 Spd RWD/4X4 | V8 5.6L |
| Nissan | CARAVAN | 2016 | 7 Spd R/4WD | L4 2.0L 2.5L |
| Nissan | CIMA | 2012-2016 | 7 Spd RWD | V6 3.0/3.5L |
| Nissan | FAIRLADY Z/ROADSTER | 2008-2012 | 7 Spd RWD | V6 3.7L |
| Nissan | Frontier | 2014 | 7 Spd RWD/4X4 | L4 2.3L |
| Nissan | FUGA | 2016 | 7 Spd R/4WD | V6 3.0L |
| Nissan | FUGA | 2009-2016 | 7 Spd R/AWD | V6 3.5/3.7L V8 5.6L |
| Nissan | NAVARA | 2015-2016 | 7 Spd R/4WD | V6 4.0L |
| Nissan | NAVARA | 2008-2016 | 7 Spd R/AWD | V6 3.0L |
| Nissan | Patrol | 2010-2016 | 7 Spd RWD/4X4 | V8 5.6L |
| Nissan | Skyline | 2008-2016 | 7 Spd RWD | V6 2.5L/3.5/3.7L |
| Nissan | Titan | 2015-2016 | 7 Spd RWD/4X4 | V6 4.0L V8 5.0L 5.6L |
| Nissan | Z | 2009-2012 | 7 Spd RWD | V6 3.7L |
Other and alternative codes of this transmission
+ Contribute
This feature is in progress and will be available soon.
RE7R01A
RE7R01-A
7R01
verified naming
OEM designation
source name
Common problems & symptoms
Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.
!
Contaminated Fluid Chain Reaction
Dirty ATF causes worn teflon rings, clogged valve body, worn solenoids, and oil starvation of friction packs.
!
B3 Brake Pack Failure
Brake pack B3 (2-3-4-6) is first to experience reduced oil pressure, causing burnt frictions and steel discs.
!
C1 Input Pack Burnout
C1 Input friction pack is second to burn out due to oil starvation; requires full friction set replacement.
!
Clogged Valve Body
Valve body becomes clogged from contaminated fluid, disrupting hydraulic pressure and shift control.
!
Worn Solenoids
Solenoids wear out as result of contaminated ATF, leading to inadequate oil supply to friction clutches.
!
Teflon Rings Wear
Teflon sealing rings degrade with contaminated fluid, causing internal oil pressure loss across circuits.
!
Torque Converter Wear
Torque converter components commonly require repair or replacement during transmission overhaul.
!
Electrical Control Unit Issues
Electrical problems in RE7R01 are linked to valve body malfunctions and TCU/control unit faults.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom
This feature is in progress and will be available soon.
About this transmission
Transmission general data
The 7-speed automatic transmission RE7R01A with longitudinal positioning for rear drive (according to Jatco classification - JR710E) was produced by Jatco. It was unitized since 2009 with all engines of Infinity and Nissan from V6 3.0 liters up to V8 5.6 liters (RE7R01B \ JR711E). In addition to Infinity, this transmission is installed on the following SUVs: Nissan Fuga, Pathfinder, Patrol etc.The modification named RE7R01B (Patrol/ QX56/ M56) is intended for high torque models (up to 600 Nm), in contrast with 400 Nm for the RE7R01A.RE7R01A model is a worthy competitor on price and fuel economy with transmissions produced by Aisin and ZF. There are possibilities for the mode of fast and economical car acceleration with switched on "slippery" of the torque converter clutch.
Technical issues and repair guidelines
Like in all RWD automatic transmissions of Jatco, the design of RE7R01A elements implies a very long resource for this gearbox under the condition of preventing operation with contaminated fluid, which leads to the chain reaction: contaminated oil results in worn-out teflon rings, clogged valve body, worn-out solenoids leading to oil starvation of frictions.
It is common to replace torque converter spare parts in the course of overhaul of this transmission. Traditionally, the JR710 reassembly includes the repair kit of gaskets and seals. All rings, gaskets, and seals get replaced. The brake pack B3 (2-3-4-6) is the first to sense reduced oil pressure. Frictions with steel discs get burnt. The pack of C1 (Input) frictions is the second to get burnt. In this case, it is required to replace the whole set of frictions. Regular cleaning of the valve body and repair of the torque converter are performed together with replacement of the hydraulic clutch frictions. Problems in the RE7R01 electrical part are related to the valve body and the control unit.
