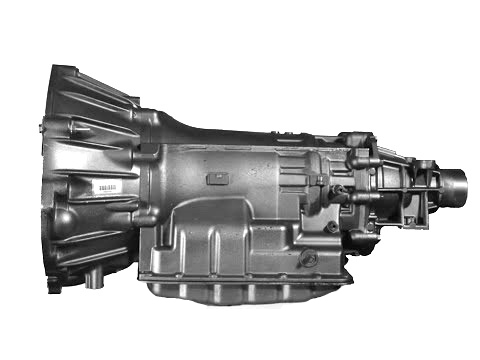

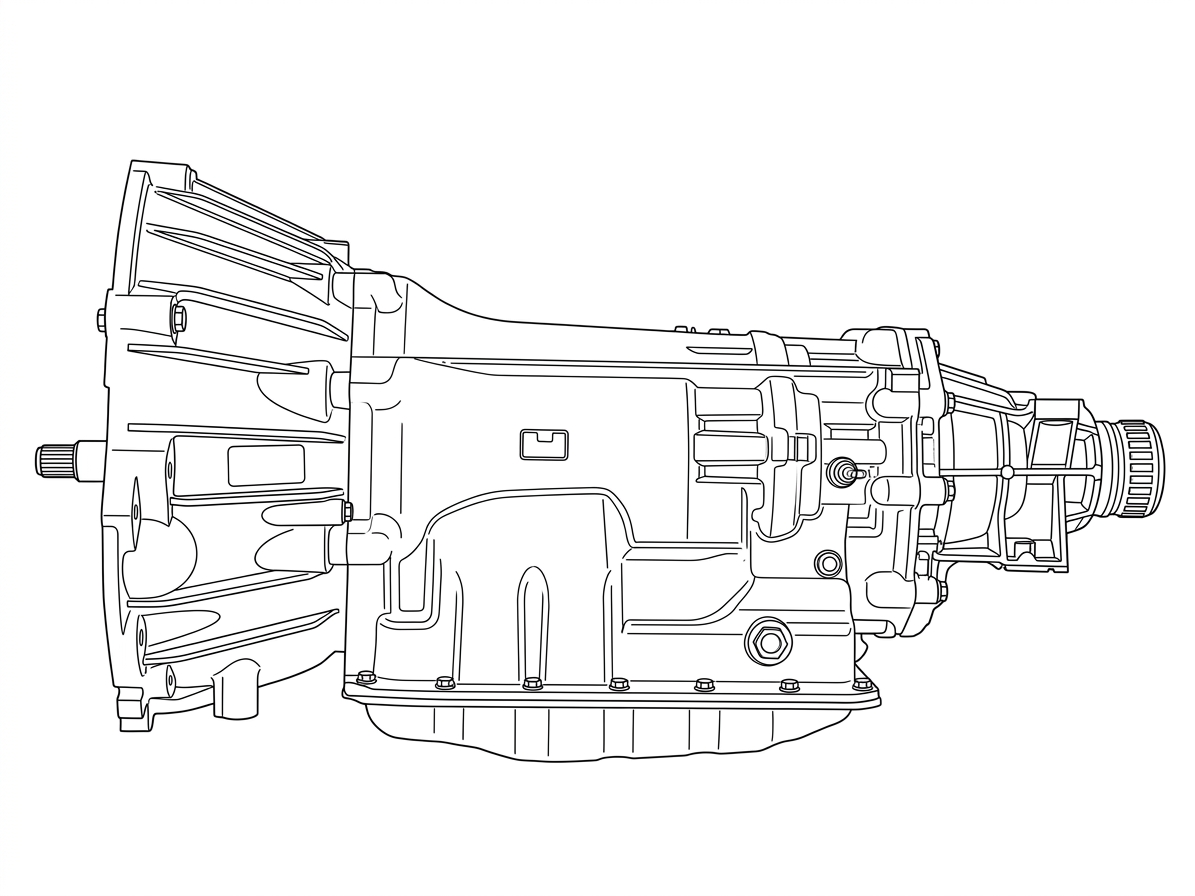

Nissan RE5R05A Transmission

The 5-speed automatic gearbox RE5R05A with the longitudinal positioning was used since 2000 on all powerful RWD models of Nissan as well as on Infinity with engine capacities 2.5 -6 lit.

Speeds 5
Type AT
Drive RWD/AWD
ATF capacity (L) 10,5
ATF change (L) 4,2-5
ATF type Nissan Matic-J
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
RE5R05A
8.3/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence7.8
Documentation depth10.0
Knowledge & support8.6

Exploded diagram & parts

Full RE5R05A parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

918 918 · No. 1 750 750 · No. 2 070 070 · No. 3 034 034 · No. 4 311 311 · No. 5 530 530 · No. 6 530 530 · No. 7 520 520 · No. 8 778 778 · No. 9 209 209 · No. 10 344 344 · No. 11 210* 210* · No. 12 211 211 · No. 13 866 866 · No. 14 212 212 · No. 15 656 656 · No. 16 610 610 · No. 17 040 040 · No. 18 020 020 · No. 19 867 867 · No. 20 214 214 · No. 21 580 580 · No. 22 215 215 · No. 23 217 217 · No. 24 380 380 · No. 25 177 177 · No. 26 552 552 · No. 27 047 047 · No. 28 332/333 332, 333 · No. 29 962 962 · No. 30 972 972 · No. 31 982 982 · No. 32 874 874 · No. 33 124/104 124, 104 · No. 34 776 776 · No. 35 777 777 · No. 36 144* 144* · No. 37 873 873 · No. 38 39 39 · No. 39 40 40 · No. 40 41 41 · No. 41 42 42 · No. 42 43 43 · No. 43 44 44 · No. 44 594 594 · No. 45 232 232 · No. 46 582 582 · No. 47 238 238 · No. 48 239 239 · No. 49 881 881 · No. 50 592 592 · No. 51 889 889 · No. 52 584 584 · No. 53 251 251 · No. 54 052 052 · No. 55 612 612 · No. 56 183 183 · No. 57 183 183 · No. 58 052B 052B · No. 59 056 056 · No. 60 614 614 · No. 61 658 658 · No. 62 286 286 · No. 63 888 888 · No. 64 248 248 · No. 65 577 577 · No. 66 882 882 · No. 67 255 255 · No. 68 256* 256* · No. 69 257 257 · No. 70 258 258 · No. 71 885 885 · No. 72 154 154 · No. 73 134/114 134, 114 · No. 74 886 886 · No. 75 987 987 · No. 76 977 977 · No. 77 967 967 · No. 78 328/329 328, 329 · No. 79 043 043 · No. 80 043 043 · No. 81 557 557 · No. 82 83 83 · No. 83 260 260 · No. 84 878* 878* · No. 85 146 146 · No. 86 126/106 126, 106 · No. 87 879 879 · No. 88 985 985 · No. 89 975 975 · No. 90 965 965 · No. 91 336 336 · No. 92 337 337 · No. 93 046 046 · No. 94 95 95 · No. 95 555 555 · No. 96 229 229 · No. 97 892 892 · No. 98 150* 150* · No. 99 130/110 130, 110 · No. 100 131 131 · No. 101 857 857 · No. 102 891 891 · No. 103 986 986 · No. 104 976 976 · No. 105 966 966 · No. 106 339 339 · No. 107 883 883 · No. 108 179 179 · No. 109 632 632 · No. 110 226 226 · No. 111 233* 233* · No. 112 890 890 · No. 113 285 285 · No. 114 654 654 · No. 115 639 639 · No. 116 436 436 · No. 117 783 783 · No. 118 665 665 · No. 119 285 285 · No. 120 890 890 · No. 121 234 234 · No. 122 579 579 · No. 123 236 236 · No. 124 235 235 · No. 125 876* 876* · No. 126 148 148 · No. 127 128/108 128, 108 · No. 128 853 853 · No. 129 152* 152* · No. 130 132/112 132, 112 · No. 131 871 871 · No. 132 979 979 · No. 133 969 969 · No. 134 341 341 · No. 135 340 340 · No. 136 559 559 · No. 137 334/335 334, 335 · No. 138 760 760 · No. 139 064 064 · No. 140 263 263 · No. 141 690 690 · No. 142 184 184 · No. 143 184 184 · No. 144 678 678 · No. 145 270 270 · No. 146 272 272 · No. 147 410 410 · No. 148 843 843 · No. 149 444 444 · No. 150 347 347 · No. 151 770/305 770, 305 · No. 152 066 066 · No. 153 074 074 · No. 154 493 493 · No. 155 494 494 · No. 156 902 902 · No. 157 901 901 · No. 158 366 366 · No. 159 367 367 · No. 160 072 072 · No. 161 422 +3 422, 425, 450, 428 · No. 162 446C 446C · No. 163 421 421 · No. 164 423 423 · No. 165 433 433 · No. 166 446B 446B · No. 167 446A 446A · No. 168 437 437 · No. 169 991-3 991-3 · No. 170 991-4 991-4 · No. 171 994 994 · No. 172 991-6 991-6 · No. 173 995-1/995-3 995-1, 995-3 · No. 174 896 896 · No. 175 904 904 · No. 176 366 366 · No. 177 010 +2 010, 300, 765 · No. 178 740 740 · No. 179 992-6 992-6 · No. 180 992 992 · No. 181 991-2 991-2 · No. 182 995-2 995-2 · No. 183 371/494-1 371, 494-1 · No. 184 327 327 · No. 185

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to RE5R05A in the Go4Trans marketplace.
Sell RE5R05A parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

77 applications · 5 makes · 1999–2018 Nissan 42 · Infiniti 30 · Kia 3 · Mazda 1 · Suzuki 1

Make Model Year Drive Engine
Infiniti CX35 2007-2008 3.5
Infiniti EX35 2008-2009 3.5
Infiniti EX35 2007-2016 5 Spd R/AWD V6 3.5L
Infiniti FX35 2005-2009 3.5
Infiniti FX35 2003-2008 5 Spd RWD/AWD V6 3.5L
Infiniti FX35 2003-2007 5 Spd RWD/AWD V6 3.5L
Infiniti FX35 2003-2004 3.5
Infiniti FX45 2003-2008 5 Spd AWD V8 4.5L
Infiniti FX45 2003-2008 4.5
Infiniti FX45 2003-2007 5 Spd AWD V8 4.5L
Infiniti G/Q60 2007-2016 5 Spd R/4WD V6 3.5/3.7L
Infiniti G35 2005-2008 3.5
Infiniti G35 2003-2011 5 Spd RWD/AWD V6 3.5L
Infiniti G35 2003-2007 5 Spd RWD/AWD V6 3.5L
Infiniti G35 2003-2004 3.5
Infiniti G37 2008 3.7
Infiniti G37 2007-2008 5 Spd R/AWD V6 3.7L
Infiniti M35 2005-2007 5 Spd RWD/AWD V6 3.5L
Infiniti M35 2004-2009 5 Spd R/AWD V6 3.5L
Infiniti M35/X 2005-2009 3.5
Infiniti M45 2006-2009 4.5
Infiniti M45 2003-2007 5 Spd RWD V8 4.5L
Infiniti M45 2003-2004 4.5
Infiniti Q45 2005-2007 4.5
Infiniti Q45 2002-2007 5 Spd RWD V8 4.5L
Infiniti Q45 2002-2004 4.5
Infiniti QX56 2005-2010 5.6
Infiniti QX56 2004-2009 5 Spd RWD/4X4 V8 5.6L
Infiniti QX56 2004-2007 5 Spd RWD/4X4 V8 5.6L
Infiniti QX56 2004 5.6
Kia Borrego 2009-2011 3.8
Kia Sorento 2005-2006 5 Spd RWD/4x4 V6 3.5L
Kia Sorento 2005-2006 5 Spd RWD/4x4 V6 3.8L
Mazda BONGO 2016 5 Spd R/4WD JR507E
Nissan 350Z 2005-2009 3.5
Nissan 350Z 2003-2006 5 Spd RWD V6 3.5L
Nissan 350Z 2003-2004 3.5
Nissan 350Z 2001-2010 5 Spd RWD V6 3.5L
Nissan Armada 2005-2015 5.6
Nissan Armada 2004-2012 5 Spd RWD/4X4 V8 5.6L
Nissan Armada 2004-2007 5 Spd RWD/4x4 V8 5.6L
Nissan Armada 2004 5.6
Nissan ATLAS 2007-2016 5 Spd RWD/4X4 L4 2.0L
Nissan CARAVAN 2012-2016 5 Spd RWD L4 2.0/2.5L
Nissan CIMA 2000-2011 5 Spd RWD V6 3.0L V8 4.5L
Nissan Elgrand 2000-2010 5 Spd R/AWD V6 2.5/3.5L
Nissan FAIRLADY Z/ROADSTER 2002-2008 5 Spd RWD V6 3.5L
Nissan Frontier 2005-2013 2.5
Nissan Frontier 2005-2013 4.0
Nissan Frontier 2005-2007 5 Spd RWD/4x4 L4 2.5L; V6 4.0L
Nissan Frontier 1999-2016 5 Spd RWD/4X4 L4 2.5L V6 4.0L
Nissan FUGA 2004-2009 5 Spd RWD V6 3.5L V8 4.5L
Nissan NAVARA 2005-2016 5 Spd R/AWD L4 2.5L V6 4.0L
Nissan NV VAN 2011-2012 5 Spd R/AWD V6 4.0L V8 5.6L
Nissan Pathfinder 2005-2012 5 Spd RWD/4X4 L4 2.5 V6 4.0L V8 5.6L
Nissan Pathfinder 2005-2012 4.0
Nissan Pathfinder 2005-2012 5.6
Nissan Pathfinder 2005-2007 5 Spd RWD/4X4 V6 4.0L
Nissan Pathfinder 2004 5.6
Nissan Patrol (Non-USA) 2001-2004 4.5
Nissan SAFARI 2003-2012 5 Spd R/AWD V6 4.8L
Nissan Skyline 2001-2009 5 Spd RWD V6 3.0L 3.5L
Nissan Skyline (Non-USA) 2005-2009 3.0, 3.5
Nissan Skyline (Non-USA) 2001-2004 3.0, 3.5
Nissan STAGEA 2001-2007 5 Spd R/AWD V6 2.5L 3.0L 3.5L
Nissan Terrano / Pathfinder 2005-2007 5 Spd RWD/4x4 V6 4.0L
Nissan Terrano / Pathfinder 2004-2007 5 Spd RWD/4x4 V8 5.6L
Nissan Titan 2005-2015 5.6
Nissan Titan 2004-2014 5 Spd RWD/4X4 V8 5.6L
Nissan Titan 2004-2007 5 Spd RWD/4x4 V8 5.6L
Nissan Titan 2004 5.6
Nissan Xterra 2018 5 Spd R/4WD L4 2.3L/2.5L
Nissan Xterra 2005-2015 4.0
Nissan Xterra 2005-2012 5 Spd RWD/4X4 V6 4.0L
Nissan Xterra XE 2005-2007 5 Spd RWD/4x4 V6 4.0L
Nissan Z 2003-2008 5 Spd RWD V6 3.5L
Suzuki Equator 2009-2013 2.5, 4.0

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

RE5R05A
(RE5R05A)
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Lockup Wear
Aggressive acceleration causes fast wear of TC locking unit, leading to valve body channel and valve degradation.
!
Valve Body Channel Wear
Wear of valve body channels and solenoids causes oil pressure loss in various gearbox areas, accelerating friction wear.
!
Solenoid Breakdown
Electrical failure of solenoids within valve body, one of three primary valve body failure modes reported.
!
Friction and Steel Disc Burn
Burnt fluid leads to burnt friction elements and steel discs, requiring full overhaul of the transmission.
?
Oil Pressure Loss
Pressure shortage occurs in different clutch packs depending on vehicle model and driving style due to valve body wear.
!
Brake Band Distortion
On powerful/heavy vehicles, brake band can distort the drum; typically replaced at major overhaul.
?
Check Engine Light Triggered
Valve body failure in Nissan Pathfinder and Infiniti models commonly presents as a Check Engine warning code.
!
Valve Body Sensor Wiring Failure
Electrical issues including sensor failure, wiring faults, and circuit board breakdown on valve body assembly.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic gearbox RE5R05A with the longitudinal positioning was used since 2000 on all powerful RWD models of Nissan as well as on Infinity with engine capacities 2.5 -6 lit.

There are a lot of various sub-versions of the RE5RO5A solution for various torque and various types of cars, which are distinct in filters, friction components, steel discs, hard parts, and valve body. All sub-versions are founded on very fail-safe construction of RWD Nissan 4-speed automatic gearboxes, which were modified with the Overdrive planetary gear and more intellectual electronic control.

Technical issues and repair guidelines

Typical major repairs of this transmission involve the torque converter (TC) repair, reassembly, cleaning and change of friction elements, oil and filter, and repair kit of gaskets and seals. The main repoair issue of this transmission is caused by aggressive accelerations leading to fast wear-out of the TC locking unit, resulting in wear-out of channels and valves of the valve body. Consequently, the pressure shortage takes place in different packs depending on the computer settings provided by the automaker and driving style of the car owner. The brake band is also considered to be a spare part in this gear shifting unit. On powerful and heavy vehicles, the brake band may distort the drum. This part is commonly replaced during major repairs, when the car comes to the repair service after travelling 200 thousand kilometers or gets for repair with burnt fluid, burnt frictions and steel discs.

The unpredictability of vulnerabilities of this transmission is attributed to the point that this smart system was adjusted for many various cars. The wear-out of channels of the valve body and solenoids takes place in distinct areas for different models resulting in the oil pressure loss in various areas of the gearbox. The abovementioned issue results in rapid wear-out of frictions. In Nissan Pathfinder, Infinity etc, the valve body failure is specified by the following caption "Check Engine". It is one of three typical problems with the valve body and sensors. The other two problems are breakdown of solenoids and wear-out of valve body channels.

It is advisable to change fluid in this transmission more frequently, not waiting before it becomes opaque. When performing the fluid change on a timely basis, the valve body may operate properly even after 200 thousand kilometers and the overhaul may be delayed until 300 thousand kilometers. The valve body rebuilding is performed in rare cases. More frequently, this component is cleaned or changed by the new one. Issues of the valve body may be divided into mechanical (wear-out) and electrical – breakdown of sensors, wiring, solenoids, circuit boards of the valve body.
