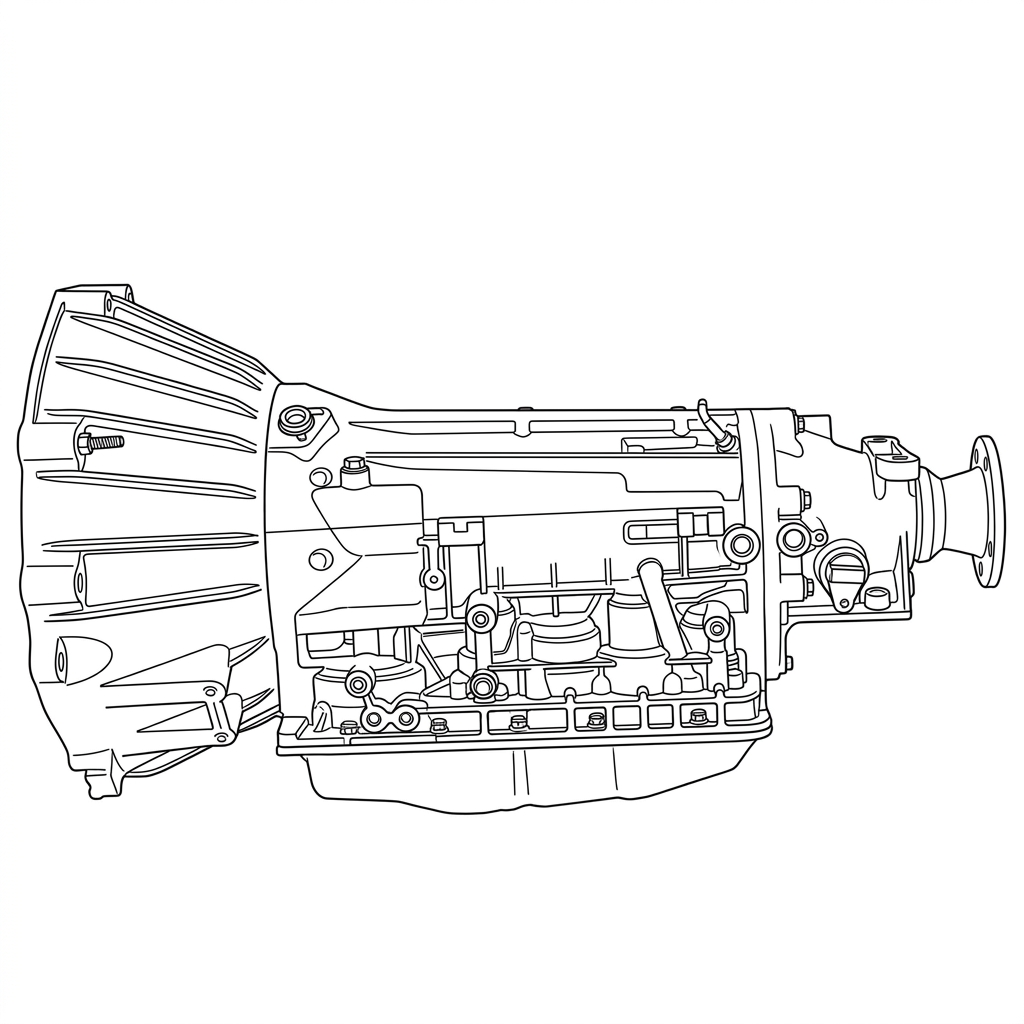

Mazda R4A-EL (RE4R01A) Transmission

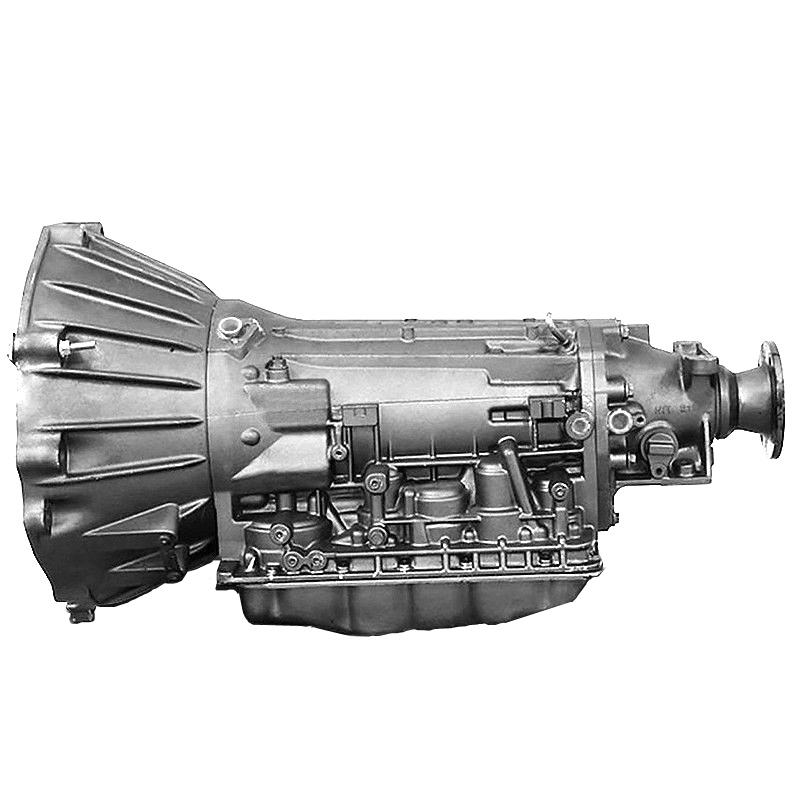

The 4-speed automatic transmission RE4R01A\B (medium-duty class) RL4R01A (JR402A) found application in RWD and 4WD vehicles (Pathfinder, PickUp X-Terra) with engine capacity from 2 up to 4.5 liters. This gearbox rarely fails and traditionally is considered to be an “invincible” RWD transmission. The RE4R01A\B transmission was produced by Jatco-Nissan in 1987. The design of this transmission was updated several times and as a result it got an electronic control unit (and letter E in its name instead of hydraulic "L" - RL4R01A). All these modifications have the same structural design and…

Speeds 4
Type AT
Drive RWD/AWD
ATF capacity (L) 6,9
ATF change (L) 3,1
ATF type Matic-D
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
R4A-EL
7.4/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence7.4
Documentation depth10.0
Knowledge & support4.0

Exploded diagram & parts

Full R4A-EL parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

535 535 · No. 1 315 315 · No. 2 3 3 · No. 3 179 179 · No. 4 180 180 · No. 5 089 089 · No. 6 750 750 · No. 7 070 070 · No. 8 034 034 · No. 9 510 510 · No. 10 538 538 · No. 11 532 +2 532, 538, 533 · No. 12 538 538 · No. 13 176 176 · No. 14 313 313 · No. 15 534 534 · No. 16 536 536 · No. 17 535 535 · No. 18 036 036 · No. 19 520 520 · No. 20 037 037 · No. 21 311 311 · No. 22 310 310 · No. 23 211* 211* · No. 24 220 220 · No. 25 221* 221* · No. 26 020 020 · No. 27 046 046 · No. 28 556 556 · No. 29 339 339 · No. 30 338 338 · No. 31 966 966 · No. 32 33 33 · No. 33 34 34 · No. 34 35 35 · No. 35 976 976 · No. 36 37 37 · No. 37 38 38 · No. 38 986 986 · No. 39 893 893 · No. 40 854 854 · No. 41 130/110 130, 110 · No. 42 150* 150* · No. 43 776 776 · No. 44 312 312 · No. 45 312 312 · No. 46 537 537 · No. 47 778 778 · No. 48 892 892 · No. 49 380 380 · No. 50 670 670 · No. 51 555 555 · No. 52 331 331 · No. 53 330 330 · No. 54 965 965 · No. 55 56 56 · No. 56 975 975 · No. 57 58 58 · No. 58 59 59 · No. 59 60 60 · No. 60 985 985 · No. 61 879 879 · No. 62 147 147 · No. 63 126/106 126, 106 · No. 64 146* 146* · No. 65 878 878 · No. 66 228 228 · No. 67 229 229 · No. 68 049 049 · No. 69 575 575 · No. 70 049 049 · No. 71 241 241 · No. 72 622 622 · No. 73 052 052 · No. 74 243 243 · No. 75 244 244 · No. 76 582 582 · No. 77 883 883 · No. 78 238 238 · No. 79 614 614 · No. 80 888 888 · No. 81 247 247 · No. 82 584 584 · No. 83 243 243 · No. 84 244 244 · No. 85 060 060 · No. 86 594 594 · No. 87 254 254 · No. 88 574 574 · No. 89 881 881 · No. 90 656 656 · No. 91 656 656 · No. 92 656 656 · No. 93 881 881 · No. 94 254 254 · No. 95 579 579 · No. 96 876 876 · No. 97 148* 148* · No. 98 128/108 128, 108 · No. 99 853 853 · No. 100 870 870 · No. 101 156* 156* · No. 102 136/116 136, 116 · No. 103 856 856 · No. 104 877 877 · No. 105 974 974 · No. 106 969 969 · No. 107 340 340 · No. 108 341 341 · No. 109 964 964 · No. 110 335 335 · No. 111 334 334 · No. 112 554 554 · No. 113 048 048 · No. 114 438 438 · No. 115 996 996 · No. 116 117 117 · No. 117 235 235 · No. 118 889 889 · No. 119 658 658 · No. 120 286 286 · No. 121 890 890 · No. 122 885 885 · No. 123 154* 154* · No. 124 134 +2 134, 639, 114 · No. 125 857 857 · No. 126 260 260 · No. 127 232 232 · No. 128 181 181 · No. 129 668 668 · No. 130 987 987 · No. 131 132 132 · No. 132 133 133 · No. 133 977 977 · No. 134 135 135 · No. 135 136 136 · No. 136 137 137 · No. 137 138 138 · No. 138 967 967 · No. 139 332 332 · No. 140 333 333 · No. 141 760 760 · No. 142 790 790 · No. 143 064 064 · No. 144 263 263 · No. 145 690 690 · No. 146 894 894 · No. 147 062 062 · No. 148 690 690 · No. 149 680 680 · No. 150 678 678 · No. 151 781 781 · No. 152 445 445 · No. 153 992 992 · No. 154 410 410 · No. 155 156 156 · No. 156 157 157 · No. 157 158 158 · No. 158 159 159 · No. 159 160 160 · No. 160 161 161 · No. 161 162 162 · No. 162 163 163 · No. 163 164 164 · No. 164 165 165 · No. 165 166 166 · No. 166 996 996 · No. 167 740 740 · No. 168 428/420 428, 420 · No. 169 010 010 · No. 170 903 +7 903, 361B, 901B, 909, 361, 906, 901, 903-1 · No. 171 305 305 · No. 172 770 770 · No. 173 066 066 · No. 174 074 074 · No. 175 072 072 · No. 176 177 177 · No. 177 178 178 · No. 178 179 179 · No. 179 180 180 · No. 180 181 181 · No. 181 425 425 · No. 182 366/907 366, 907 · No. 183 436 436 · No. 184 185 185 · No. 185 186 186 · No. 186 187 187 · No. 187 188 188 · No. 188 189 189 · No. 189 190 190 · No. 190 191 191 · No. 191 437 437 · No. 192 427 427 · No. 193 300/765 300, 765 · No. 194 367 +3 367, 307, 902, 904 · No. 195

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to R4A-EL in the Go4Trans marketplace.
Sell R4A-EL parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

46 applications · 6 makes · 1987–2012 Nissan 27 · Mazda 9 · Infiniti 7 · Ford 1 · Isuzu 1

Make Model Year Drive Engine
Ford Ranger 2000-2007 4 Spd RWD/4X4 L4 2.5L
Infiniti J30 1993-1997 3.0
Infiniti J30 1992-1997 4 Spd RWD V6 3.0L
Infiniti M30 1990-1992 4 Spd RWD V6 3.0L
Infiniti M30 1990-1992 3.0
Infiniti QX4 1997-2003 4 Spd RWD/4X4 V6 3.3L 3.5L
Infiniti QX4 1997-2003 4 Spd 4X4 V6 3.3/3.5L
Infiniti QX4 1997-2003 3.3, 3.5
Isuzu FASTER 2000-2003 4 Spd RWD L4 2.6L V6 2.8L
Kia Sportage 2000-2001 4 Spd RWD/4X4 L4 2.0L
Mazda 929 1992-1995 4 Spd RWD V6 3.0L
Mazda 929 1992-1995 3.0
Mazda MPV 1989-1999 3.0
Mazda MPV (Van) 1989-1999 4 Spd RWD/4X4 V6 3.0L
Mazda MPV (Van) 1989-1999 4 Spd RWD V6 3.0L
Mazda PICKUP 1990-1993 4 Spd 4X4 L4 2.6L
Mazda RX7 1993-2002 4 Spd RWD ROTARY
Mazda RX7 1993-1996 4 Spd RWD Rotary 1.3L
Mazda RX7 1993-1995 1.3
Nissan 200SX 1989-1994 4 Spd RWD 2.0L
Nissan 240SX 1989-1998 4 Spd RWD L4 2.4L
Nissan 240SX 1989-1998 2.4
Nissan 300ZX 4 Spd RWD V6 3.0L
Nissan 300ZX Non Turbo 1990-1994 4 Spd RWD V6 3.0L
Nissan CEDRIC 2000-2012 4 Spd RWD L4 2.0L L6 2.5L
Nissan CIMA 2000-2001 4 Spd RWD V6 3.0L
Nissan Frontier 1999-2011 4 Spd RWD/4X4 L4 2.4/3.2L
Nissan Frontier 1999-2004 4 Spd RWD/4x4 V6 3.3L
Nissan Frontier 1999-2004 3.3
Nissan HARD BODY 2000-2007 4 Spd RWD V6 3.3L
Nissan LAUREL 2000-2001 4 Spd R/AWD L6 2.5L
Nissan Pathfinder 1998-2004 4 Spd RWD V6 3.3L/3.5L
Nissan Pathfinder 1987-2004 2.4, 3.0, 3.3, 3.5
Nissan Pathfinder/Pickup 1990-1997 4 Spd RWD V6 3.0/3.3L
Nissan Pathfinder/Pickup 1988-1998 4 Spd 4x4 V6 3.0/3.3L
Nissan Pickup 1993-1997 4 Spd RWD/4x4 L4 2.4L; V6 3.0L
Nissan PICKUP/PATHFINDER 1990-1997 4 Spd RWD V6 3.0/3.3L
Nissan PICKUP/PATHFINDER 1988-1998 4 Spd 4X4 V6 3.0/3.3L
Nissan Skyline 2001-2006 4 Spd R/AWD V6 2.5L
Nissan STAGEA 2000-2007 4 Spd R/AWD V6 2.0L 2.5L
Nissan TERRANO 2000-2002 4 Spd R/AWD L4 2.7L V6 3.3L
Nissan Terrano / Pathfinder 1993-2004 4 Spd RWD/4x4 V6 3.0L 3.3L 3.4L 3.5L
Nissan Terrano / Pathfinder 1989-1995 4 Spd RWD/4x4 2.4Li
Nissan Xterra 2000-2004 4 Spd RWD/4X4 V6 3.3L
Nissan Xterra 2000-2004 4 Spd RWD/4X4 L4 2.4L V6 3.3L
Nissan Xterra SE 2000-2004 4 Spd RWD/4x4 V6 3.3L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

R4A-EL
RE4R01A
R4AEL
R4-AEL
RE4R01-A
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
High Clutch Package Burnt
High clutch pack is typically the first component to burn out during transmission wear cycle.
!
Worn Solenoids Pressure Loss
Worn solenoids cause insufficient oil pressure, leading to bushing wear and friction component burning.
!
Planetary Gear Assembly Wear
Assembled rear-front planetary gear is among the first hard parts to exhaust its service life.
?
Insufficient Oil Pressure
Low hydraulic pressure caused by worn solenoids; nearly unnoticeable while driving but causes internal wear.
!
Overdrive Brake Band Wear
Brake band Overdrive 37mm (Low-Reverse) requires replacement at each overhaul of RE4R01A.
!
Torque Converter Degradation
Torque converter spare parts require inspection and replacement during standard overhaul procedure.
!
Valve Body Contamination
Valve body accumulates debris and requires thorough cleaning during overhaul to restore proper function.
!
Gaskets Seals Friction Wear
Gaskets, seals, rings, and friction components degrade and require full replacement kit at overhaul.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission RE4R01A\B (medium-duty class) RL4R01A (JR402A) found application in RWD and 4WD vehicles (Pathfinder, PickUp X-Terra) with engine capacity from 2 up to 4.5 liters. This gearbox rarely fails and traditionally is considered to be an “invincible” RWD transmission. The RE4R01A\B transmission was produced by Jatco-Nissan in 1987. The design of this transmission was updated several times and as a result it got an electronic control unit (and letter E in its name instead of hydraulic "L" - RL4R01A). All these modifications have the same structural design and differ in only in some spare parts.

Technical issues and repair guidelines

The overhaul of this transmission is commonly performed after running 250-400 thousand kilometers. Well-timed and correct reassembly of this system adds a significant resource to the whole unit. In the course of reassembly, it is required to clean the valve body and fix the worn-out torque converter. Another measure is to check and replace spare parts - gaskets, rings, friction components.The package High typically is the first to get burnt. The kit of gaskets and seals (Overhaul kit) is a common order for the overhaul procedure.

Each repair of the "old" RE4R01A involves replacement of the following components:

- Brake band Overdrive 37 mm (Low-Reverse)

- Set of 4 solenoids (together with replacement of the torque converter spare parts).

The first hard part to exhaust its solid resource is the assembled planetary gear (Rear-Front) and burning High package. Worn solenoids cause insufficient oil pressure almost unnoticeable while driving, but results in wearout of all bushings and burning of friction components.
