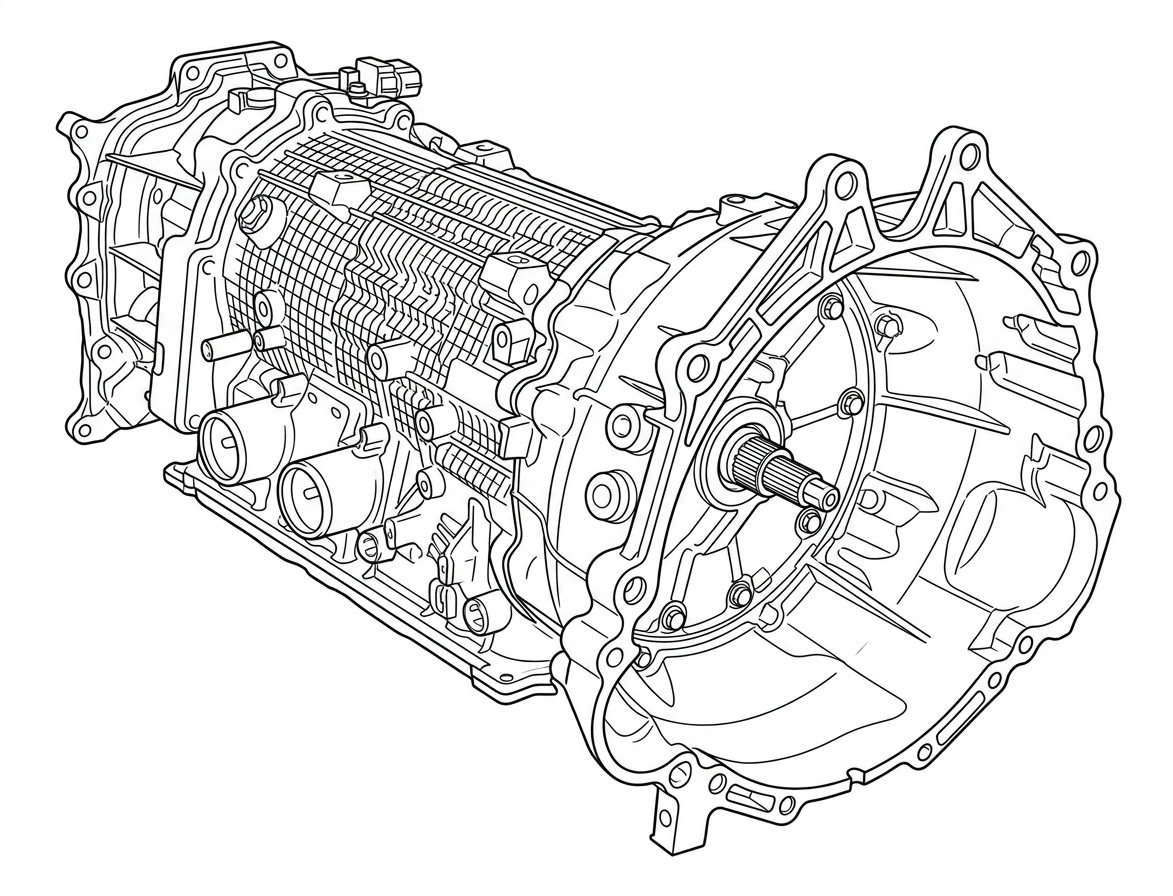

Mitsubishi R4A51 Transmission

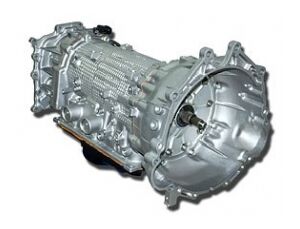

The 4-speed automatic transmission R4A51 (V4A51) was used since 1997 for RWD Montero models with engine capacity from 3-liters. In a couple of years, the new 5-speed R5A51 (2000-2006) and AWD V5A51 versions were launched. This family of automatic transmissions competed with RWD AW30-40LE by Aisin.

Speeds 4
Type AT
Drive RWD
ATF capacity (L) 9,6
ATF change (L) 4
ATF type SP III
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
R4A51
5.9/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence3.8
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full R4A51 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

750 750 · No. 1 070 070 · No. 2 034 034 · No. 3 311 311 · No. 4 5 5 · No. 5 530 530 · No. 6 036 036 · No. 7 520 520 · No. 8 179 179 · No. 9 181 181 · No. 10 310 310 · No. 11 210* 210* · No. 12 211 211 · No. 13 670 670 · No. 14 556 556 · No. 15 338 338 · No. 16 339 339 · No. 17 550 550 · No. 18 960 960 · No. 19 970 970 · No. 20 980 980 · No. 21 862 862 · No. 22 141 141 · No. 23 120/100 120, 100 · No. 24 777 777 · No. 25 309 309 · No. 26 778 778 · No. 27 140 140 · No. 28 29 29 · No. 29 130 130 · No. 30 150 150 · No. 31 892* 892* · No. 32 880 880 · No. 33 213 213 · No. 34 052 052 · No. 35 570 570 · No. 36 052 052 · No. 37 214 214 · No. 38 883 883 · No. 39 956 956 · No. 40 962 962 · No. 41 972 972 · No. 42 125 125 · No. 43 124/104 124, 104 · No. 44 45 45 · No. 45 144* 144* · No. 46 873 873 · No. 47 050 050 · No. 48 572 572 · No. 49 050 050 · No. 50 867 867 · No. 51 580 580 · No. 52 217 217 · No. 53 056 056 · No. 54 614 614 · No. 55 056 056 · No. 56 247 247 · No. 57 584 584 · No. 58 058 058 · No. 59 251 251 · No. 60 594 594 · No. 61 342A 342A · No. 62 436 436 · No. 63 781 781 · No. 64 889 889 · No. 65 652 652 · No. 66 67 67 · No. 67 694 694 · No. 68 134/114 134, 114 · No. 69 155* 155* · No. 70 857 857 · No. 71 891 891 · No. 72 885 885 · No. 73 695 695 · No. 74 662 662 · No. 75 340B 340B · No. 76 987 987 · No. 77 977 977 · No. 78 967 967 · No. 79 340 340 · No. 80 760 760 · No. 81 304 304 · No. 82 634 634 · No. 83 690 690 · No. 84 895 895 · No. 85 770 770 · No. 86 074 074 · No. 87 632 632 · No. 88 89 89 · No. 89 894 894 · No. 90 91 91 · No. 91 578 578 · No. 92 223 223 · No. 93 571 571 · No. 94 220 220 · No. 95 864* 864* · No. 96 142 142 · No. 97 122/102 122, 102 · No. 98 329B 329B · No. 99 328B 328B · No. 100 865 865 · No. 101 981 981 · No. 102 961 961 · No. 103 329 329 · No. 104 328 328 · No. 105 438 438 · No. 106 107 107 · No. 107 108 108 · No. 108 109 109 · No. 109 110 110 · No. 110 111 111 · No. 111 112 112 · No. 112 113 113 · No. 113 072 072 · No. 114 906 906 · No. 115 908 908 · No. 116 446 446 · No. 117 118 118 · No. 118 119 119 · No. 119 120 120 · No. 120 121 121 · No. 121 122 122 · No. 122 123 123 · No. 123 124 124 · No. 124 125 125 · No. 125 126 126 · No. 126 127 127 · No. 127 128 128 · No. 128 129 129 · No. 129 130 130 · No. 130 131 131 · No. 131 132 132 · No. 132 133 133 · No. 133 134 134 · No. 134 135 135 · No. 135 136 136 · No. 136 137 137 · No. 137 138 138 · No. 138 195 195 · No. 139 907 907 · No. 140 784/896 784, 896 · No. 141 347 347 · No. 142 846B 846B · No. 143 551 551 · No. 144 184 184 · No. 145 146 146 · No. 146 062 062 · No. 147 678 678 · No. 148 270 270 · No. 149 271 271 · No. 150 151 151 · No. 151 062 062 · No. 152 586 586 · No. 153 878 878 · No. 154 991-3 991-3 · No. 155 994 994 · No. 156 909 909 · No. 157 360 360 · No. 158 896 896 · No. 159 430 430 · No. 160 423 423 · No. 161 421 421 · No. 162 843 843 · No. 163 439 439 · No. 164 427 427 · No. 165 425 425 · No. 166 995-2 995-2 · No. 167 995-3 995-3 · No. 168 995-1 995-1 · No. 169 995-6 995-6 · No. 170 995-5 995-5 · No. 171 995-6 995-6 · No. 172 991-2 991-2 · No. 173 174 174 · No. 174 010 010 · No. 175 379 379 · No. 176 146 146 · No. 177 126/106 126, 106 · No. 178 179 179 · No. 179 879 879 · No. 180 985 985 · No. 181 975 975 · No. 182 337 337 · No. 183 336 336 · No. 184 555 555 · No. 185 046 046 · No. 186 271 271 · No. 187 022 022 · No. 188 897 897 · No. 189 695 695 · No. 190 259 259 · No. 191 654 654 · No. 192 259 259 · No. 193 665 665 · No. 194 695 695 · No. 195 410 410 · No. 196 197 197 · No. 197 765/300 765, 300 · No. 198 992 992 · No. 199 741-1 741-1 · No. 200

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to R4A51 in the Go4Trans marketplace.
Sell R4A51 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

13 applications · 1 make · 1997–2016 Mitsubishi 13

Make Model Year Drive Engine
Mitsubishi CHALLENGER 2001-2011 4 Spd R/AWD V6 3.0L
Mitsubishi G WAGON 2001-2005 4 Spd RWD L4 2.8L
Mitsubishi L200 2000-2012 4 Spd RWD L4 3.2L V6 3.5L
Mitsubishi L200 TRITON 2000-2014 4 Spd R/AWD L4 2.3L V6 3.5L
Mitsubishi Montero 1997-2007 3.5, 3.8
Mitsubishi Montero 1997-2004 2.4, 3.0, 3.5
Mitsubishi MONTERO SPORT 1999-2004 4 Spd RWD/4X4 V6 3.0/3.5L
Mitsubishi MONTERO XLS 2001-2002 4 Spd RWD/4X4 V6 3.5L
Mitsubishi PAJERO SPORT/WAGON 2000-2012 4 Spd R/AWD L4 2.5/2.8/3.2L
Mitsubishi PAJERO SPORT/WAGON 2000-2012 4 Spd R/AWD V6 3.0L/3.5L
Mitsubishi Shogun / Pajero/ Montero Sport 1999-2004 4 Spd RWD/4x4 V6 3.0/3.5L
Mitsubishi Shogun / Pajero/ Montero XLS 2001-2002 4 Spd RWD/4x4 V6 3.0L 3.5L
Mitsubishi TRITON 2005-2016 4 Spd R/AWD L4 2.4/2.5/2.8 V6 3.5L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

R4A51
V4A51
R4/R5A51
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Clutch Wear
Lock-up clutch friction wears out, causing beatings and eventual pump seal and bushing damage.
?
Torque Converter Beating
Untimely friction replacement leads to beating sensations and downstream pump component failure.
!
Pump Seal and Bushing Damage
Worn torque converter friction causes pump seal damage followed by pump bushing breakdown.
!
Overdrive Planetary Gear Failure
O.D. planetary gear degrades rapidly under extreme or frequent high-torque loading conditions.
!
Burnt Fluid Friction Damage
Long-term operation with burnt ATF degrades all friction discs and brake band, requiring full replacement.
!
Clogged Transmission Filter
Filters clog with wear-out debris; two filter variants exist for RWD applications requiring correct selection.
!
EPC and Lock-up Solenoid Wear
EPC solenoid and V5A51 torque converter lock-up solenoid fail due to intense operation in hot, dirty fluid.
!
Input Shaft Sensor Failure
Sensors fail due to age, oil contamination from steel shavings, or overheating of transmission fluid.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission R4A51 (V4A51) was used since 1997 for RWD Montero models with engine capacity from 3-liters. In a couple of years, the new 5-speed R5A51 (2000-2006) and AWD V5A51 versions were launched. This family of automatic transmissions competed with RWD AW30-40LE by Aisin.

Technical issues and repair guidelines

Commonly, planned overhaul of these transmissions consists in cleaning of the valve body, repair of the torque converter and ATF change. These measures are assumed to be enough for another 2-3 years of proper operation, if gaskets are intact and the oil pressure in packages conforms to requirements.The reassembly of this transmission usually includes not only the repair kit of gaskets and seals, but also the kit of frictions and the kit of steel discs. A rather long-lived clutch of the torque converter lock-up may be exposed to wearout. In some cases, it may operate until 200 thousand kilometers. The untimely replacement of the friction component results in beatings, damage of the pump seal, and later breakdown of the pump bushing.

Typical problems of R4A51 (V4A51)

Filters are clogged with wear-out products and there are two modifications of filters for transmissions applied in RWD cars. The planetary gear (O.D.) rapidly gets out of order under the condition of extreme and frequent loads close to the torque limit. In the process of reassembly, the valve body is washed and may operate properly till the end of the car lifespan. During the first overhaul, specialists replace some solenoids that operate very intensively, namely EPC solenoid and the solenoid of the clutch lock of the V5A51 torque converter operating in the dirtiest and hottest fluid. Input shaft sensors get out of order because of old age, oil contamination by steel shavings, and overheating It is recommended to replace all frictions and the brake band in case of a long-term operation with burnt fluid.
