Home / Transmissions / Honda / MPCA
Honda Source-verified model

Honda MPCA Transmission

Speeds 5
Type Automatic
ATF type Honda ATF-Z1
ATF capacity (L) 5.9
ATF change (L) 2.4
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

MPCA
0.0/10
Support & Market Presence Index

How widely this transmission is used, documented and supported across the Go4Trans graph.

1resources
Diagram Parts Fitment Aliases Symptoms Related Sources Contribute

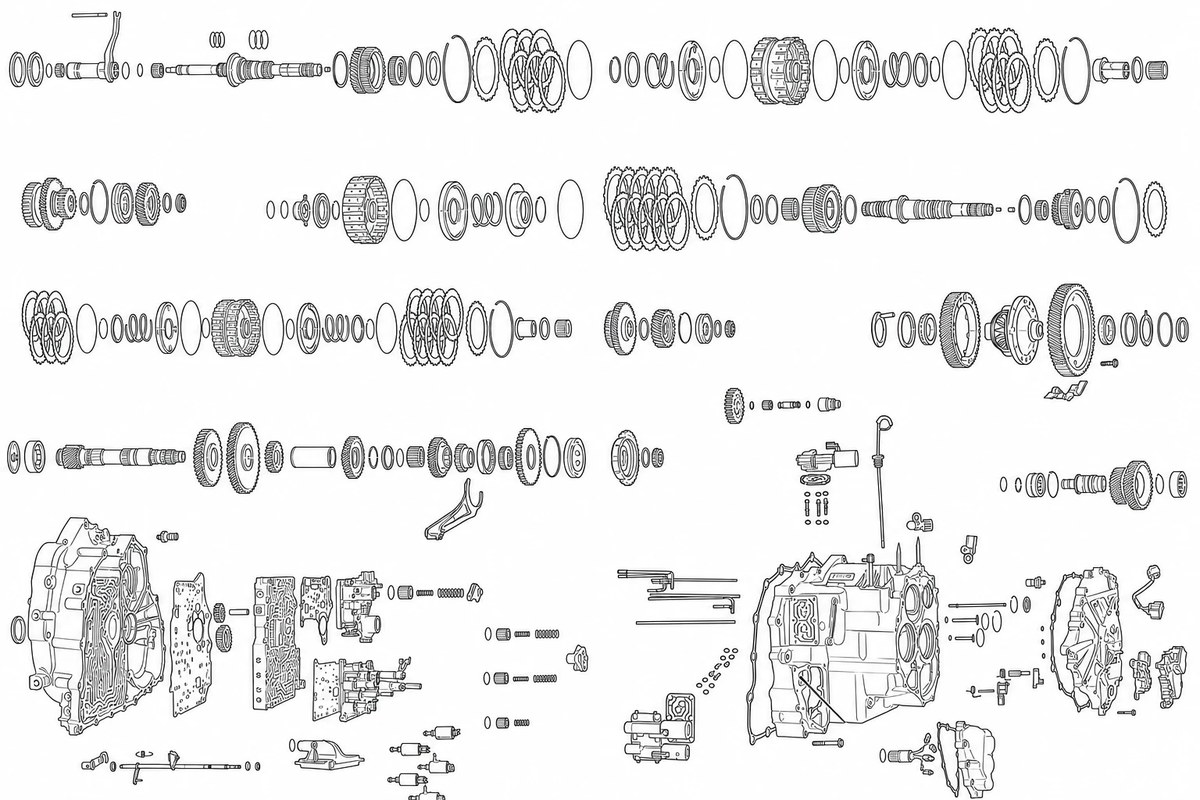

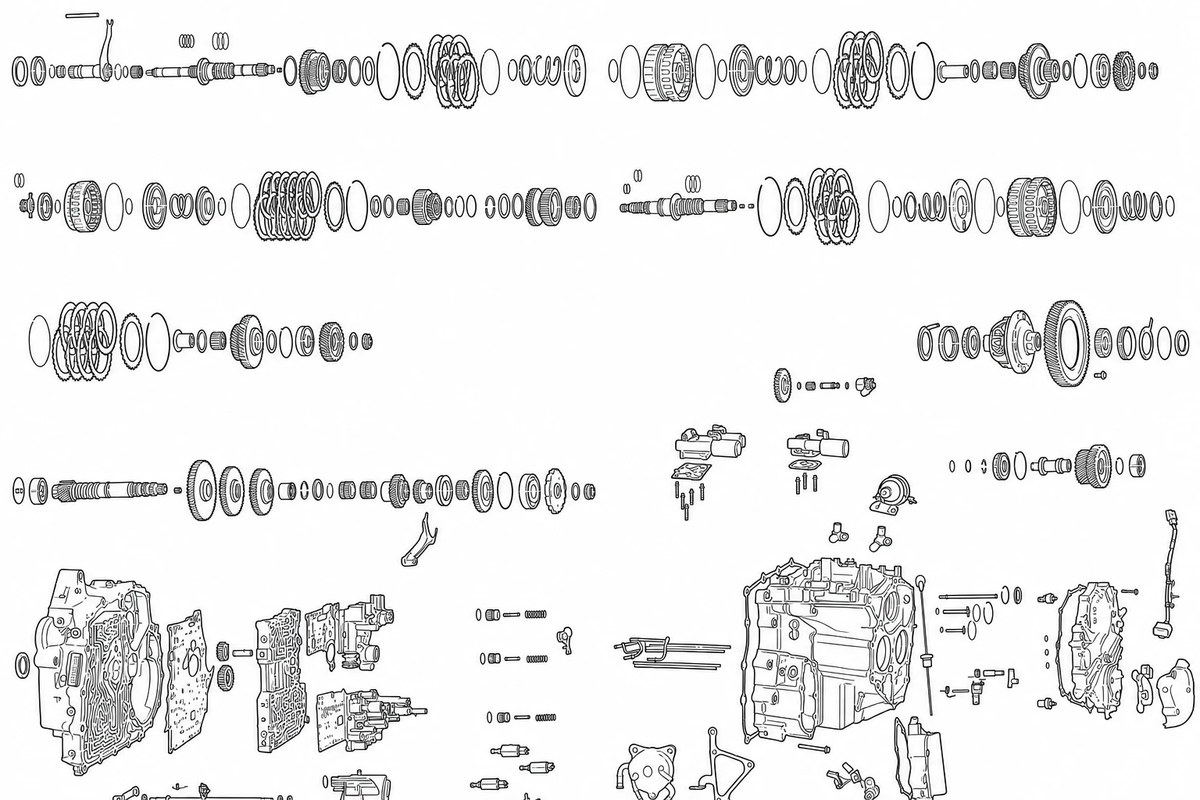

Exploded diagram & parts

Full SPCA parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 211 211 · No. 2 870 870 · No. 3 209 209 · No. 4 529-1 529-1 · No. 5 529 529 · No. 6 381 381 · No. 7 879 879 · No. 8 214 214 · No. 9 179 179 · No. 10 672 672 · No. 11 356 356 · No. 12 217 217 · No. 13 806 806 · No. 14 220 220 · No. 15 223 223 · No. 16 224* 224* · No. 17 878 878 · No. 18 146 146 · No. 19 126/106 126, 106 · No. 20 858 858 · No. 21 871 871 · No. 22 985 985 · No. 23 975 975 · No. 24 965 965 · No. 25 336 336 · No. 26 337 337 · No. 27 551 551 · No. 28 329 329 · No. 29 328 328 · No. 30 961 961 · No. 31 32 32 · No. 32 33 33 · No. 33 971 971 · No. 34 981 981 · No. 35 865 865 · No. 36 851 851 · No. 37 122/102 122, 102 · No. 38 142 142 · No. 39 864 864 · No. 40 233 233 · No. 41 232 232 · No. 42 229 229 · No. 43 229 229 · No. 44 812 812 · No. 45 226 226 · No. 46 880 880 · No. 47 235 235 · No. 48 710 710 · No. 49 207 207 · No. 50 795 795 · No. 51 391 391 · No. 52 697 697 · No. 53 238 238 · No. 54 881 881 · No. 55 554 554 · No. 56 335 335 · No. 57 334 334 · No. 58 967 967 · No. 59 977 977 · No. 60 987 987 · No. 61 877 877 · No. 62 853 853 · No. 63 128/108 128, 108 · No. 64 148 148 · No. 65 876 876 · No. 66 244 244 · No. 67 243 243 · No. 68 241 241 · No. 69 802 802 · No. 70 242 242 · No. 71 888 888 · No. 72 694-1 694-1 · No. 73 886 886 · No. 74 75 75 · No. 75 252 252 · No. 76 253 253 · No. 77 803 803 · No. 78 251 251 · No. 79 250 250 · No. 80 181 181 · No. 81 181/359 181, 359 · No. 82 675 675 · No. 83 358 358 · No. 84 873 873 · No. 85 144 144 · No. 86 124/104 124, 104 · No. 87 852 852 · No. 88 874 874 · No. 89 982 982 · No. 90 972 972 · No. 91 962 962 · No. 92 333 333 · No. 93 332 332 · No. 94 550 550 · No. 95 330 330 · No. 96 331 331 · No. 97 960 960 · No. 98 970 970 · No. 99 980 980 · No. 100 862 862 · No. 101 850 850 · No. 102 120/100 120, 100 · No. 103 140 140 · No. 104 861 861 · No. 105 282 282 · No. 106 281 281 · No. 107 285 285 · No. 108 811 811 · No. 109 280 280 · No. 110 884 884 · No. 111 286 286 · No. 112 712 712 · No. 113 206 206 · No. 114 797 797 · No. 115 695 695 · No. 116 291 291 · No. 117 292 292 · No. 118 716 716 · No. 119 720 720 · No. 120 289 289 · No. 121 288 288 · No. 122 698 698 · No. 123 290* 290* · No. 124 076 076 · No. 125 818 818 · No. 126 283 283 · No. 127 819 819 · No. 128 820 820 · No. 129 786 786 · No. 130 689 689 · No. 131 254 254 · No. 132 676 676 · No. 133 052 052 · No. 134 801 801 · No. 135 804 804 · No. 136 807 807 · No. 137 267 267 · No. 138 139 139 · No. 139 887 887 · No. 140 269 269 · No. 141 886 886 · No. 142 271 271 · No. 143 271 271 · No. 144 810 810 · No. 145 835 835 · No. 146 830 830 · No. 147 273 273 · No. 148 816 816 · No. 149 890 890 · No. 150 274 274 · No. 151 690 690 · No. 152 208 208 · No. 153 796 796 · No. 154 999-4 999-4 · No. 155 999-5 999-5 · No. 156 325 325 · No. 157 999-5 999-5 · No. 158 999-5 999-5 · No. 159 431 431 · No. 160 999-5 999-5 · No. 161 323 323 · No. 162 999-5 999-5 · No. 163 999-4 999-4 · No. 164 425 425 · No. 165 013 013 · No. 166 899 899 · No. 167 694 694 · No. 168 299-1 299-1 · No. 169 898 898 · No. 170 679 679 · No. 171 714 714 · No. 172 895 895 · No. 173 299 299 · No. 174 840 840 · No. 175 438 438 · No. 176 436 436 · No. 177 924/924-3 924, 924-3 · No. 178 353 353 · No. 179 932 932 · No. 180 931 931 · No. 181 931-1 931-1 · No. 182 934 934 · No. 183 184 184 · No. 184 185 185 · No. 185 186 186 · No. 186 187 187 · No. 187 188 188 · No. 188 189 189 · No. 189 190 190 · No. 190 191 191 · No. 191 411 411 · No. 192 780 780 · No. 193 445 445 · No. 194 077 077 · No. 195 750 750 · No. 196 747 747 · No. 197 530 530 · No. 198 530 530 · No. 199 535 535 · No. 200 740 740 · No. 201 354 354 · No. 202 203 203 · No. 203 936 936 · No. 204 936-1 936-1 · No. 205 206 206 · No. 206 760/318 760, 318 · No. 207 493 493 · No. 208 209 209 · No. 209 210 210 · No. 210 211 211 · No. 211 212 212 · No. 212 213 213 · No. 213 214 214 · No. 214 305/759 305, 759 · No. 215 410 410 · No. 216 489 489 · No. 217 900/746 900, 746 · No. 218 355 355 · No. 219 947 947 · No. 220 946 946 · No. 221 946-1 946-1 · No. 222 412 412 · No. 223 992 992 · No. 224 225 225 · No. 225 991-4 991-4 · No. 226 227 227 · No. 227 010 010 · No. 228 422 422 · No. 229 421 421 · No. 230 423 423 · No. 231 998 998 · No. 232 998-5 998-5 · No. 233 776 776 · No. 234 444 444 · No. 235 304 304 · No. 236 757 757 · No. 237

Parts categories

View all parts →
Kits
Kits
17 parts
Valve body & solenoids
Valve body & solenoids
15 parts
Electrical
Electrical
12 parts
Filters & pans
Filters & pans
2 parts
Seals & gaskets
Seals & gaskets
7 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
178 parts
Pump
Pump
1 part
Friction & steel
Friction & steel
58 parts
Planetary & hard parts
Planetary & hard parts
94 parts
Hardware & other
Hardware & other
53 parts
Sell MPCA parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

3 applications · 1 make · 2006–2015 Honda 3

Make Model Year Drive Engine
Honda Civic 2012-2015 1.8
Honda Civic 2006-2011 1.3, 1.8, 2.0
Honda Civic DX, EX, LX, GX 2006-2010 5 Spd FWD L4 1.8L

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

No aliases recorded yet — be the first to contribute one. Contribute →

verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

?
No movement in any gear
Vehicle will not move in any gear despite the engine running; can be caused by low ATF, worn pump, stuck regulator valve, clogged strainer, or worn gears/shafts.
!
1st clutch defective
A defective 1st clutch (or worn 1st accumulator/gears) causes the vehicle to move in 2nd and Reverse but not in D, D3, or 1st.
!
2nd clutch defective
A defective 2nd clutch (or worn 2nd accumulator/gears) causes the vehicle to move in D, 1, and R but not in 2nd gear.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

Sources & Contribution

＋ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
link
Honda 5 Speed (MPCA, SGOA, SMMA, SP5A, SPCA) - Parts & Technical Information
—
