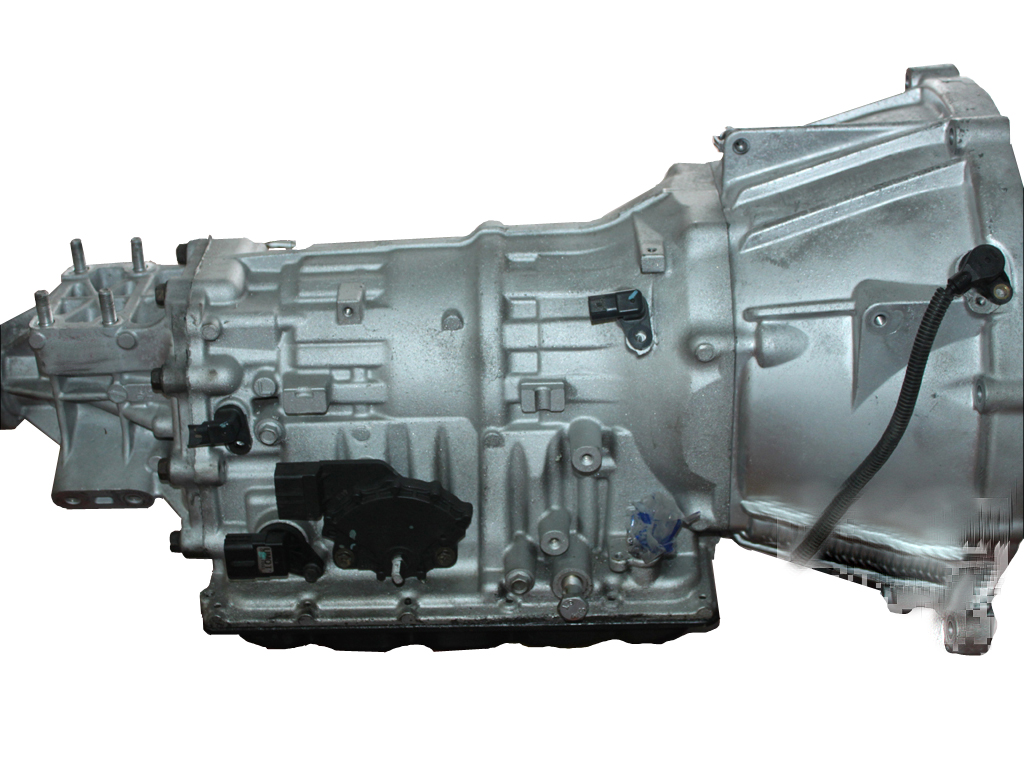

Jatco JR405E Transmission

The 4-speed automatic gearboxes RC4A-EL for RWD and AWD vehicles with engines 1.6 – 3 lit. were designed in 1999 for Mazda and Nissan on a Japanese market. It was frequently installed on RWD models Isuzu and Suzuki.

Speeds 4
Type AT
Drive RWD/AWD
Max torque 300
ATF capacity (L) 8,7
ATF type AT-Matic J
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page

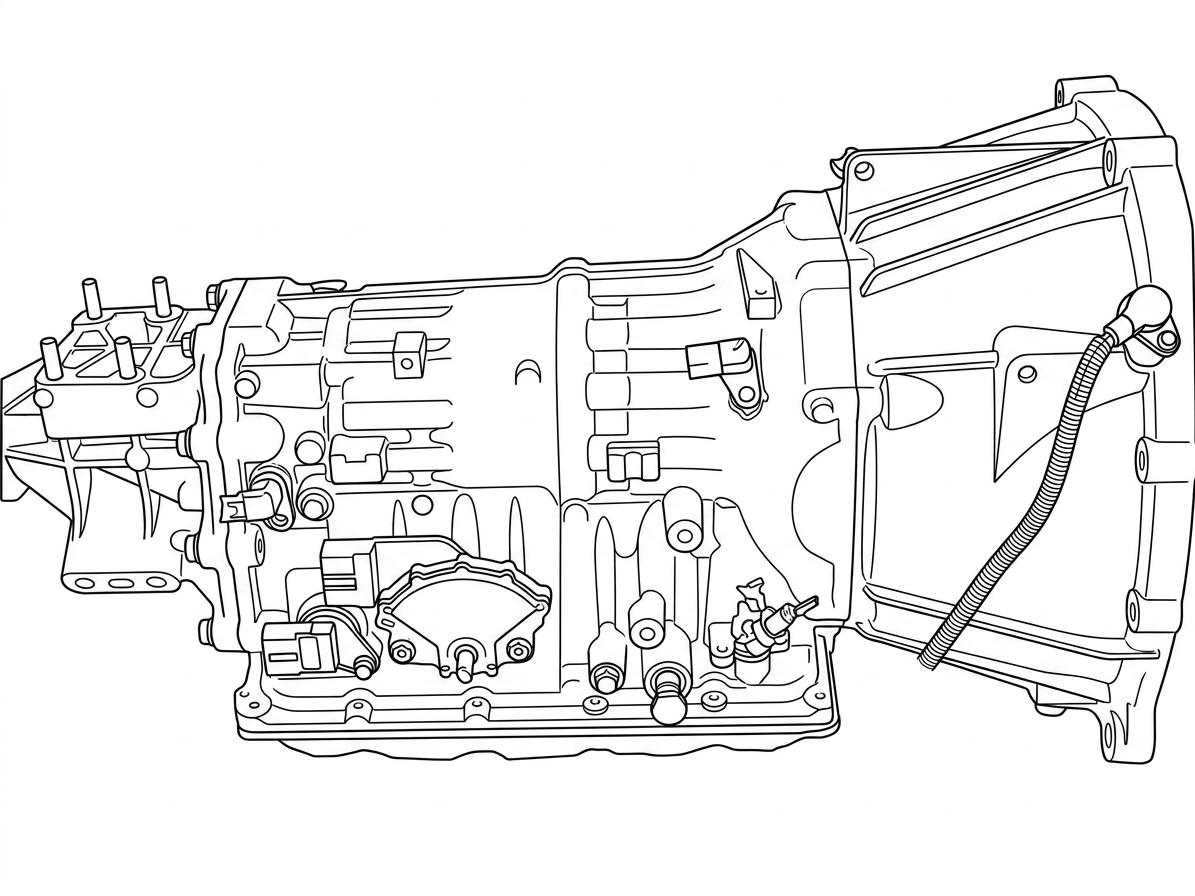

JR405E
6.0/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence4.3
Documentation depth9.5
Knowledge & support5.0

Exploded diagram & parts

Full JR405E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

776 776 · No. 1 2 2 · No. 2 070 070 · No. 3 034 034 · No. 4 510 510 · No. 5 530 530 · No. 6 311 311 · No. 7 036 036 · No. 8 777 777 · No. 9 10 10 · No. 10 778 778 · No. 11 181 181 · No. 12 037 037 · No. 13 381 381 · No. 14 212 212 · No. 15 211 211 · No. 16 046 046 · No. 17 179 179 · No. 18 670 670 · No. 19 555 555 · No. 20 335 335 · No. 21 966 966 · No. 22 337 337 · No. 23 965 965 · No. 24 975 975 · No. 25 985 985 · No. 26 879 879 · No. 27 235 235 · No. 28 575 575 · No. 29 039 039 · No. 30 127 127 · No. 31 126/106 126, 106 · No. 32 146 146 · No. 33 878/854 878, 854 · No. 34 130/110 130, 110 · No. 35 150 150 · No. 36 892 892 · No. 37 259 259 · No. 38 258 258 · No. 39 578 578 · No. 40 222 222 · No. 41 221 221 · No. 42 871/547 871, 547 · No. 43 980 980 · No. 44 970 970 · No. 45 331/330 331, 330 · No. 46 141 141 · No. 47 120/100 120, 100 · No. 48 140 140 · No. 49 894 894 · No. 50 582 582 · No. 51 238 238 · No. 52 614 614 · No. 53 247 247 · No. 54 584 584 · No. 55 250 250 · No. 56 251 251 · No. 57 594 594 · No. 58 253 253 · No. 59 254 254 · No. 60 876 876 · No. 61 639A 639A · No. 62 438 438 · No. 63 148 148 · No. 64 128/108 128, 108 · No. 65 125 125 · No. 66 984 984 · No. 67 974 974 · No. 68 332 332 · No. 69 333 333 · No. 70 048 048 · No. 71 554 554 · No. 72 257 257 · No. 73 881 881 · No. 74 654 654 · No. 75 286 286 · No. 76 890 890 · No. 77 889 889 · No. 78 154 154 · No. 79 134/114 134, 114 · No. 80 155 155 · No. 81 135 135 · No. 82 261 261 · No. 83 188 188 · No. 84 668 668 · No. 85 977 977 · No. 86 967 967 · No. 87 341 341 · No. 88 340 340 · No. 89 760 760 · No. 90 263 263 · No. 91 790 790 · No. 92 062 062 · No. 93 639B 639B · No. 94 678 678 · No. 95 690 690 · No. 96 691/895 691, 895 · No. 97 691 691 · No. 98 696 696 · No. 99 272 272 · No. 100 770 770 · No. 101 066 066 · No. 102 074 074 · No. 103 444 444 · No. 104 105 105 · No. 105 421 421 · No. 106 740 740 · No. 107 782 782 · No. 108 109 109 · No. 109 110 110 · No. 110 994 994 · No. 111 410 410 · No. 112 113 113 · No. 113 426 426 · No. 114 423 423 · No. 115 425 425 · No. 116 422 422 · No. 117 411 411 · No. 118 119 119 · No. 119 411 411 · No. 120 376B/435 376B, 435 · No. 121 446 446 · No. 122 123 123 · No. 123 072 072 · No. 124 991-3 991-3 · No. 125 459 459 · No. 126 010 010 · No. 127 996AA 996AA · No. 128 378 378 · No. 129 496 496 · No. 130 765/300 765, 300 · No. 131 132 132 · No. 132 996A 996A · No. 133

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to JR405E in the Go4Trans marketplace.
Sell JR405E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

18 applications · 4 makes · 2000–2016 Isuzu 7 · Mazda 5 · Nissan 5 · Suzuki 1

Make Model Year Drive Engine
Isuzu Adventure Master 2003-2007 4 Spd RWD/4X4 L4 3.0L
Isuzu Adventure Master 2003-2007 4 Spd RWD L4 3.0L
Isuzu D-Max 2002-2011 4 Spd RWD/4X4 L4 3.0L
Isuzu D-Max 2002-2011 4 Spd RWD JR405E
Isuzu MU-7 2004-2012 4 Spd RWD L4 3.0L
Isuzu MU-X 2013-2016 4 Spd 4WD L4 3.0L
Isuzu SPACE CAB 2000-2003 4 Spd RWD L4 3.0L
Mazda Bongo/Friendee 2000-2011 4 Spd RWD/4x4 L41.8,2.0,2.2,2.5 V6 2.5
Mazda BONGO/VAN/WAGON 2000-2014 4 Spd RWD/4X4 L4 1.8/2.0/2.2/2.5 V6 2.5L
Mazda RX8 2004-2005 4 Spd RWD 1.3L ROTARY
Mazda RX8 2004-2005 1.3
Mazda RX8 2003-2006 4 Spd RWD Rotary 1.3L
Nissan CEDRIC 2000-2002 4 Spd RWD L6 2.8/3.0L
Nissan FAIRLADY Z 4 Spd RWD V6 3.0L
Nissan LAUREL 2000-2002 4 Spd RWD L6 2.0/2.5L
Nissan SILVIA 2000-2003 4 Spd RWD L4 2.0L
Nissan Terrano II 2002-2006 4 Spd RWD/4x4 L4 3.0L
Suzuki Vitara 2000-2005 4 Spd RWD/4WD L4 1.6L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

RC4AE-L
RC4A-EL
RC4-AEL
JR405E
RC4AEL
JR405-E
RC4 AEL
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Oil Contamination Solenoid Damage
Rapidly contaminating oil clogs solenoids and valve body, requiring external inline filter on cooling line.
!
Torque Converter Wear
Torque converter requires rebuild to prevent damage to transmission pump and bushing at high mileage.
!
Transmission Pump Failure
Pump at risk of damage if torque converter is not repaired in time; directly linked to converter wear.
!
Solenoid Failure Contamination
Solenoids frequently ordered as replacement parts, indicating susceptibility to failure from dirty fluid.
?
Valve Body Oil Contamination
Valve body affected by rapidly contaminating transmission fluid, leading to shifting issues and solenoid damage.
!
Bushing Wear Degradation
Internal bushing deteriorates alongside torque converter, requiring attention during converter rebuild.
!
Gasket Seal Degradation
Gaskets and seals require timely monitoring and replacement; repair kits commonly ordered for major overhaul.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic gearboxes RC4A-EL for RWD and AWD vehicles with engines 1.6 – 3 lit. were designed in 1999 for Mazda and Nissan on a Japanese market. It was frequently installed on RWD models Isuzu and Suzuki.

Technical issues and repair guidelines

Old cars with the mileage higher than 150 thousand kilometers commonly get some linehaul external filter cut in the oil cooling line by specialists in order to refine quickly contaminating oil and protect solenoids and the valve body. After travelling more than 200 thousand kilometers, it is necessary to repair the torque converter for saving the pump and the bushing. This transmission is quite rare and reliable unit, for which it is necessary to change fluid and monitor conditions of gaskets and seals on a timely basis. It is a common case to order solenoids and sometimes repair kits of gaskets and seals for major repairs of this transmission.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
ซ่อมเกียร์ออโต้ ISUZU D-MAX/MU-7, JR405E Transmission Rebuild
เอ.เอ็ม. ออโต้ ทรานมิชชั่น จำกัด
manual
Automatic Choice — JR405E (Isuzu D-Max Truck 2002-11 Etc & Nissan)
—
