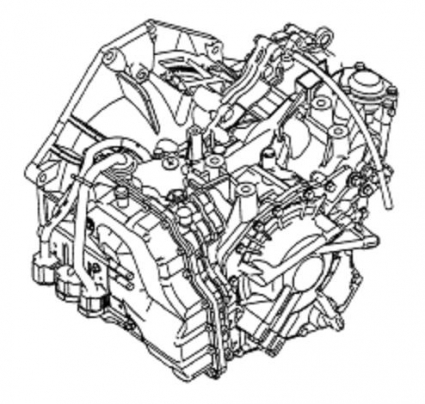

Jatco / Mazda / Volkswagen AG JF506E Transmission

The 5-speed automatic transmission 09A \ 09B (according to Jatco - JF506E classification) was designed in 1999 by Jatco for the European market of FWD cars with engine up to 3.8l. The first budget version of this 5-speed automatic transmission is used in the cars as a reliable and unpretentious alternative to expensive the AW55-50 from Aisin and ZF 5HP19-24.

Speeds 5
Type AT
Drive FWD
Max torque 350
ATF capacity (L) 9
ATF change (L) 5
ATF type G 052 990
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page

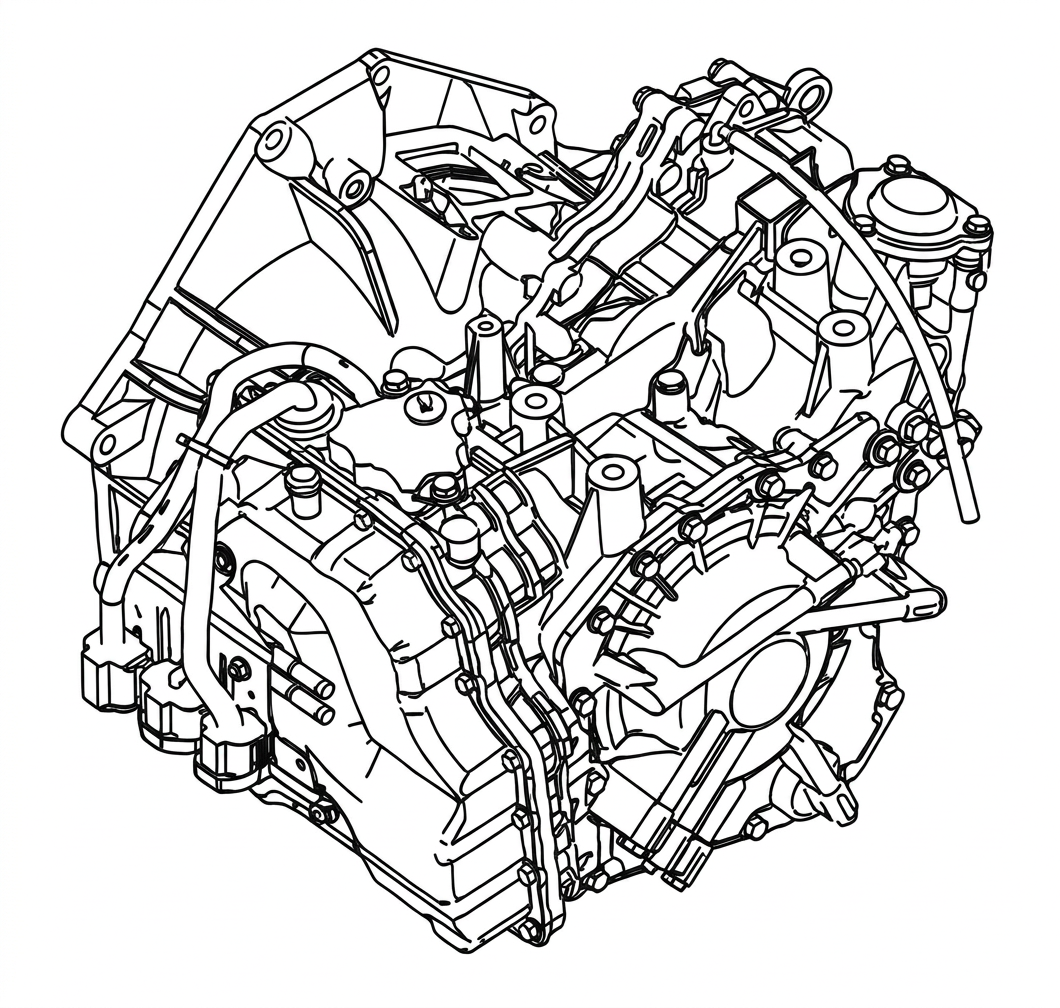

JF506E
7.5/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.8
Documentation depth10.0
Knowledge & support6.5

Exploded diagram & parts

Full JF506E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

699 699 · No. 1 283 283 · No. 2 284 284 · No. 3 796 796 · No. 4 282 282 · No. 5 730 730 · No. 6 869 869 · No. 7 281 281 · No. 8 280 280 · No. 9 281 281 · No. 10 712 712 · No. 11 868 868 · No. 12 596 596 · No. 13 586 586 · No. 14 616 616 · No. 15 866 866 · No. 16 896/362 896, 362 · No. 17 864 864 · No. 18 142 142 · No. 19 122/102 122, 102 · No. 20 865 865 · No. 21 981 981 · No. 22 971 971 · No. 23 961 961 · No. 24 330 330 · No. 25 331 331 · No. 26 551 551 · No. 27 040 040 · No. 28 257 257 · No. 29 650 650 · No. 30 650 650 · No. 31 862 862 · No. 32 259 259 · No. 33 260 260 · No. 34 261 261 · No. 35 660 660 · No. 36 790 790 · No. 37 022 022 · No. 38 916 916 · No. 39 750 750 · No. 40 077 077 · No. 41 293* 293* · No. 42 698 698 · No. 43 291 291 · No. 44 292 292 · No. 45 716 716 · No. 46 720 720 · No. 47 288 288 · No. 48 289 289 · No. 49 076 076 · No. 50 436 436 · No. 51 907 907 · No. 52 906B 906B · No. 53 361 361 · No. 54 909 909 · No. 55 362 362 · No. 56 275 275 · No. 57 989 989 · No. 58 979 979 · No. 59 838 838 · No. 60 798 798 · No. 61 789 789 · No. 62 378 378 · No. 63 846 846 · No. 64 65 65 · No. 65 999 999 · No. 66 999 999 · No. 67 786 786 · No. 68 777 777 · No. 69 908 908 · No. 70 359 359 · No. 71 908-5 908-5 · No. 72 909-5 909-5 · No. 73 907-5 907-5 · No. 74 75 75 · No. 75 76 76 · No. 76 77 77 · No. 77 78 78 · No. 78 79 79 · No. 79 80 80 · No. 80 81 81 · No. 81 82 82 · No. 82 998 998 · No. 83 378 378 · No. 84 846 846 · No. 85 999 999 · No. 86 999 999 · No. 87 070 070 · No. 88 034 034 · No. 89 311 311 · No. 90 91 91 · No. 91 530 530 · No. 92 036 036 · No. 93 010 010 · No. 94 520 520 · No. 95 310 310 · No. 96 318-1 318-1 · No. 97 906 906 · No. 98 897 897 · No. 99 277 277 · No. 100 207 207 · No. 101 795 795 · No. 102 231 231 · No. 103 644 644 · No. 104 885 885 · No. 105 154 154 · No. 106 134/114 134, 114 · No. 107 155 155 · No. 108 857 857 · No. 109 987 987 · No. 110 977 977 · No. 111 967 967 · No. 112 341/340 341, 340 · No. 113 957 957 · No. 114 048 048 · No. 115 886 886 · No. 116 670 670 · No. 117 710 710 · No. 118 045 045 · No. 119 279 279 · No. 120 898 898 · No. 121 278 278 · No. 122 711 711 · No. 123 179 179 · No. 124 760 760 · No. 125 783 783 · No. 126 468 468 · No. 127 344 344 · No. 128 554 554 · No. 129 334/335 334, 335 · No. 130 964 964 · No. 131 974 974 · No. 132 984 984 · No. 133 335B 335B · No. 134 877 877 · No. 135 853 853 · No. 136 128/108 128, 108 · No. 137 148 148 · No. 138 232 232 · No. 139 140 140 · No. 140 233 233 · No. 141 594 594 · No. 142 251 251 · No. 143 250 250 · No. 144 584 584 · No. 145 247 247 · No. 146 614 614 · No. 147 246 246 · No. 148 582 582 · No. 149 410 410 · No. 150 797 797 · No. 151 992-1 992-1 · No. 152 446-1 446-1 · No. 153 421 421 · No. 154 425 425 · No. 155 433 433 · No. 156 452 452 · No. 157 422 422 · No. 158 423 423 · No. 159 342B 342B · No. 160 342A 342A · No. 161 494 494 · No. 162 493 493 · No. 163 446-2 446-2 · No. 164 435 435 · No. 165 740 740 · No. 166 167 167 · No. 167 168 168 · No. 168 169 169 · No. 169 170 170 · No. 170 171 171 · No. 171 172 172 · No. 172 173 173 · No. 173 174 174 · No. 174 175 175 · No. 175 176 176 · No. 176 177 177 · No. 177 178 178 · No. 178 179 179 · No. 179 180 180 · No. 180 238 238 · No. 181 237 237 · No. 182 882 882 · No. 183 612 612 · No. 184 578 578 · No. 185 236 236 · No. 186 235 235 · No. 187 575 575 · No. 188 039 039 · No. 189 227/228 227, 228 · No. 190 228 228 · No. 191 892 892 · No. 192 150 150 · No. 193 130/110 130, 110 · No. 194 878 878 · No. 195 146 146 · No. 196 126/106 126, 106 · No. 197 858 858 · No. 198 199 199 · No. 199 879 879 · No. 200 975/985 975, 985 · No. 201 337 337 · No. 202 965 965 · No. 203 991-4 991-4 · No. 204 782 782 · No. 205 450 450 · No. 206 451 451 · No. 207 780 780 · No. 208 991-2 991-2 · No. 209 995-1 995-1 · No. 210 995-2 995-2 · No. 211 212 212 · No. 212 995-3 995-3 · No. 213 995-5 995-5 · No. 214 301/766 301, 766 · No. 215 445 445 · No. 216 555 555 · No. 217 339 339 · No. 218 556 556 · No. 219 229 229 · No. 220 230* 230* · No. 221 144 144 · No. 222 124/104 124, 104 · No. 223 145 145 · No. 224 873 873 · No. 225 972 972 · No. 226 962 962 · No. 227 333/332 333, 332 · No. 228 067 067 · No. 229 759 759 · No. 230 072 072 · No. 231 991-6 991-6 · No. 232 991-3 991-3 · No. 233 994 994 · No. 234 788 788 · No. 235 236 236 · No. 236 237 237 · No. 237 238 238 · No. 238 239 239 · No. 239 240 240 · No. 240 241 241 · No. 241 242 242 · No. 242

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to JF506E in the Go4Trans marketplace.
Sell JF506E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

41 applications · 9 makes · 1998–2012 Volkswagen 16 · Mazda 7 · Ford 4 · Mitsubishi 4 · Jaguar 3

Make Model Year Drive Engine
Ford Galaxy 2000-2006 5 Spd F/AWD L4 1.9L V6 2.8L
Ford Galaxy (MPV) 2001 5 Spd FWD 1.8L,1.9L,2.0L,2.8L V6
Ford Mondeo 2003-2007 5 Spd F/AWD L4 2.0L V6 2.5L
Ford Mondeo 2000-2007 5 Spd FWD 1.6L,1.8L,2.0L,2.5L V6
Jaguar X-Type 2002-2010 5 Spd AWD V6 2.0L/2.1/2.5/3.0L
Jaguar X-Type 2002-2007 5 Spd AWD V6 2.5L 3.0L
Jaguar X-Type 2002-2005 2.5
Land Rover Freelander 2002-2006 2.5
Land Rover Freelander 2000-2006 5 Spd FWD/AWD V6 2.5L
Land Rover Freelander 1998 5 Spd FWD/AWD 1.8L, 2.5TD, V6 2.5L
Mazda 6 2006-2012 5 Spd FWD L4 2.3L V6 3.0L
Mazda 6 2002-2006 5 Spd FWD V6 3.0L
Mazda 6/s 2003-2006 3.0
Mazda 6/s 2003-2005 5 Spd FWD V6 3.0L
Mazda ATENZA WAGON 2002-2005 5 Spd F/AWD L4 2.3L
Mazda MPV 2002-2006 3.0
Mazda MPV (Van) 2002-2006 5 Spd FWD V6 3.0L
Mitsubishi 380 2005-2008 5 Spd FWD V6 3.8L
Mitsubishi Eclipse 2006-2012 5 Spd F/AWD V6 3.8L
Mitsubishi Galant 2007-2010 5 Spd F/AWD V6 3.8L
Mitsubishi MAGNA 2000-2005 5 Spd FWD V6 3.5L
Nissan Quest 2003-2009 5 Spd F/AWD V6 3.5L
Rover 400/45 2000-2005 5 Spd F/AWD V6 2.0/2.5L
Rover 75 2000-2005 5 Spd F/AWD L4 1.8/2.0L V6 2.0/2.5L
Seat ALHAMBRA 2000-2010 5 Spd F/AWD L4 1.8/1.9L V6 2.8L
Volkswagen Bora 2002-2005 5 Spd FWD Various
Volkswagen Bora 2000-2005 5 Spd FWD L4 1.8/1.9L L5 2.3L
Volkswagen Golf 2004-2006 5 Spd FWD L4 1.9L DIESEL
Volkswagen Golf 2004-2005 5 Spd FWD L4 1.9L Diesel
Volkswagen Golf 2002-2005 1.9
Volkswagen GOLF/GTI 2000-2007 5 Spd FWD L4 1.8L
Volkswagen GTI 2002-2006 5 Spd FWD L4 1.8L
Volkswagen GTI 2002-2005 1.8
Volkswagen JETTA 2002-2008 5 Spd FWD L4 1.8L V6 2.8L
Volkswagen Jetta 2002-2005 5 Spd FWD L4 1.8L 1.9L (Diesel)
Volkswagen Jetta 2002-2005 5 Spd FWD V6 2.8L
Volkswagen Jetta 2002-2005 1.8, 1.9
Volkswagen JETTA/JETTA WAGON 2004-2005 5 Spd FWD L4 1.8L/1.9L DIESEL
Volkswagen SHARAN 2000-2010 5 Spd F/AWD L4 1.8L 1.9L V6 2.8L
Volkswagen Sharan 2000-2010 1.8, 2.8
Volkswagen Sharan 2000-2007 4 Spd FWD 1.8T, 1.9TDi, 2.0L, 2.8L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

09A
JF506-E
GPC
FBQ
EYM
ELD
FYR
EYN
FYP
FBN
EEE
JF 506-E
FLY
GPG
FLX
EYP
EGQ
FYL
JF506E
FYM
GPD
FGA
GPA
GNY
FYN
FYQ
GPE
FBP
GPH
FST
FLZ
EEC
JA5AE-L
JA5AEL
5F31J
F506E
JA5-AEL
JA5 AEL
JA5A-EL
JA5A EL
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
TCC Pressure Regulator Valve Damage
Contaminated ATF damages TCC Pressure Regulator Valve channel, disrupting torque converter lockup control.
?
Kicks Pushes and Slipping
Kicks, pushes, and slipping indicate solenoid and valve body malfunction in JF506E transmission.
!
Valve Body Malfunction
Valve body channels damaged by contaminated ATF, leading to cascading solenoid and hydraulic failures.
!
ATF Contamination by TCC
Torque converter clutch rapidly contaminates ATF, causing chain reaction damage to valves and solenoids.
!
Solenoid Kit Wear Out
All 9 solenoids typically require replacement after 200,000-300,000 tonne-kilometres of operation.
!
Worn Rings and Gaskets
Sealing rings and gaskets wear out over time, frequently resulting in ATF leakages requiring overhaul.
!
Friction Components Degradation
Full friction component kit replacement required during overhaul due to wear of clutch and brake elements.
!
Pump Seal and Bush Wear
Pump seal and pump bush are common wear items requiring cosmetic repair; bush identical to RE4F03A.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic transmission 09A \ 09B (according to Jatco - JF506E classification) was designed in 1999 by Jatco for the European market of FWD cars with engine up to 3.8l. The first budget version of this 5-speed automatic transmission is used in the cars as a reliable and unpretentious alternative to expensive the AW55-50 from Aisin and ZF 5HP19-24.

After several modifications, this transmission has been actively used in Nissan – as RE5F01A and in Mazda as JA5A-EL. Most of all, this transmission is found under the German name 09A \ 09B in VW, Audi and under the name JF506E - in the English Jaguar and Land Rover. American Ford tried to use this transmission for European Mondeo and Galaxy (as 5F31J). The Japanese had been installing this transmission until recently at American assembly plants of Nissan (Altima, Quest) and Mitsubishi (Eclipse, Galant). JF506E is mainly installed on English Jaguar X, Rover, Freelander, less often – on German Golf, Bora, Jetta and even less often on Portugese SEAT Alhambra and AUDI A3.

Technical issues and repair guidelines

The 09A\09B/JF506E filter with metal mesh is replaced during the transmission reassembly. The planned overhaul of older JF506E lies in replacement of worn-out rings and gaskets which are frequently exposed to leakages. The overhaul includes the assembly and replacement of the whole friction components kit. Kicks, pushes, and slipping in this transmission are considered to be the symptom of solenoids and valve body malfunction.

One of the reason for valve body malfunction is the damage (by contaminated ATF) of the channel and valve (TCC Pressure Regulator Valve) controlling torque converter blocking . Then goes a chain reaction related to fast ATF contamination by the torque converter clutch, and dirt starts damaging other channels and solenoid-operated valves. The whole solenoid kit (9 pcs) is usually replaced in the process of transmissions (which covered more than 200-300 tonne-kilometre) overhaul. Common spare parts for cosmetic repair are: pump seal and pump bush, which is identical for RE4F03A. The filter helps to preserve ATF clean and reduces friction units wear-out.
