Jatco JF414E Transmission

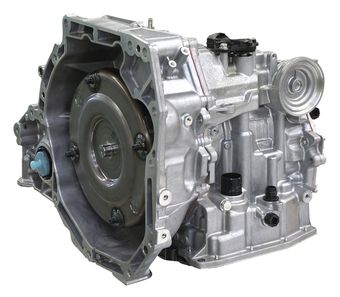

The 4-speed automatic transmission JF414 of the class “mini” with an east-west mounting for FWD cars was designed by the Japanese company Jatco for vehicles with the engine capacity of up to 1.6 liters. AvtoVaz used JF414 for Lada "Granta".

Speeds 4
Type AT
Drive FWD
ATF capacity (L) 7
ATF change (L) 3
ATF type Matic-S
Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
JF414E
5.5/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence3.8
Documentation depth10.0
Knowledge & support2.5
Sell JF414E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

13 applications · 4 makes · 2010–2016 Nissan 7 · Datsun 2 · Lada 2 · Suzuki 2

Make Model Year Drive Engine
Datsun B-Sedan 2014-2015 1.6
Datsun B-Sedan 2014 4 Spd FWD L4 1.6L
Lada Granta 2012-2015 1.6
Lada Kalina 2013-2015 1.6
Nissan AD Van 2014 4 Spd FWD L4 1.6L
Nissan AD Van (Non-USA) 2014-2015 1.6
Nissan Almera 2013-2014 4 Spd FWD L4 1.6L
Nissan Almera (Non-USA) 2013-2015 1.6
Nissan March 2010-2016 4 Spd FWD L3 0.9/1.2L L4 1.5L
Nissan March (Non-USA) 2012-2015 0.9, 1.2, 1.5
Nissan ON-DO 2014-2016 4 Spd FWD L4 1.6L
Suzuki Swift 2012-2015 1.4
Suzuki Swift 2011-2016 4 Spd FWD L4 1.4L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

JF414-E
JF414E
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Double-row center bearing failure
Most commonly replaced bearing; damaged by overloads and high-speed driving with vibrations.
!
Friction elements wear
Worn-out friction elements are the most common repair item requiring replacement during overhaul.
!
Valve body circuit board damage
Circuit board located inside valve body is sensitive to hot, contaminated fluid with metal particles.
?
Fluid contamination with metal chips
Metal chips in fluid accelerate damage to valve body sensors, circuit board, solenoids, and gaskets.
?
Transmission overheating damage
Overheating significantly reduces service life of solenoids and valve body gaskets.
!
Valve body solenoid degradation
Solenoid service life shortened by contaminated fluid, worn torque converter clutch, or overheating.
!
Valve body gasket failure
Gaskets deteriorate prematurely due to overheating and contaminated transmission fluid.
!
Valve body sensor failure
Sensors in the valve body are listed as a known vulnerability in Jatco valve body assemblies.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission JF414 of the class “mini” with an east-west mounting for FWD cars was designed by the Japanese company Jatco for vehicles with the engine capacity of up to 1.6 liters. AvtoVaz used JF414 for Lada "Granta".

Technical issues and repair guidelines

Besides Lada Granta, this CVT transmission was also installed on Nissan Almera and March models with up to 1.6 liters. Moreover, this solution may be used on Ad Van. This CVT was developed as a budgetary and reliable option for "long-running" cars. The main competitor of this CVT is AW60-40 by Aisin.The design of JF414E components is maximally simplified according to the principle "nothing in excess"

Repair procedures and typical problems

Rebuilding procedures of this transmission are related to the replacement of spare parts (namely, gaskets, seals and friction elements).Usually repair specialists have to replace worn-out friction elements. Bearings also may be replaced in the course of the overhaul. The most common bearing to be replaced is a double-row center bearing. This bearing is damaged by overloads and driving with vibrations at high speeds.The valve body of the JF414 unit is quite reliable and rarely gets replaced.

The main spare parts of the valve body are gaskets and solenoids. The transmission exploitation with contaminated fluid, worn-out torque converter clutch, and especially overheating may shorten the service life of solenoids and valve body gaskets by several times. The list of vulnerabilities of Jatco valve bodies includes sensors and a circuit board located in the valve body. Also these valve bodies are very sensitive to contaminated and hot fluid with metal chips.Computer settings are well-adjusted for packages and the torque converter lockup, which turns on at the very end of the 3-rd and 4-th gear, allowing the friction to have quite a long service life.
