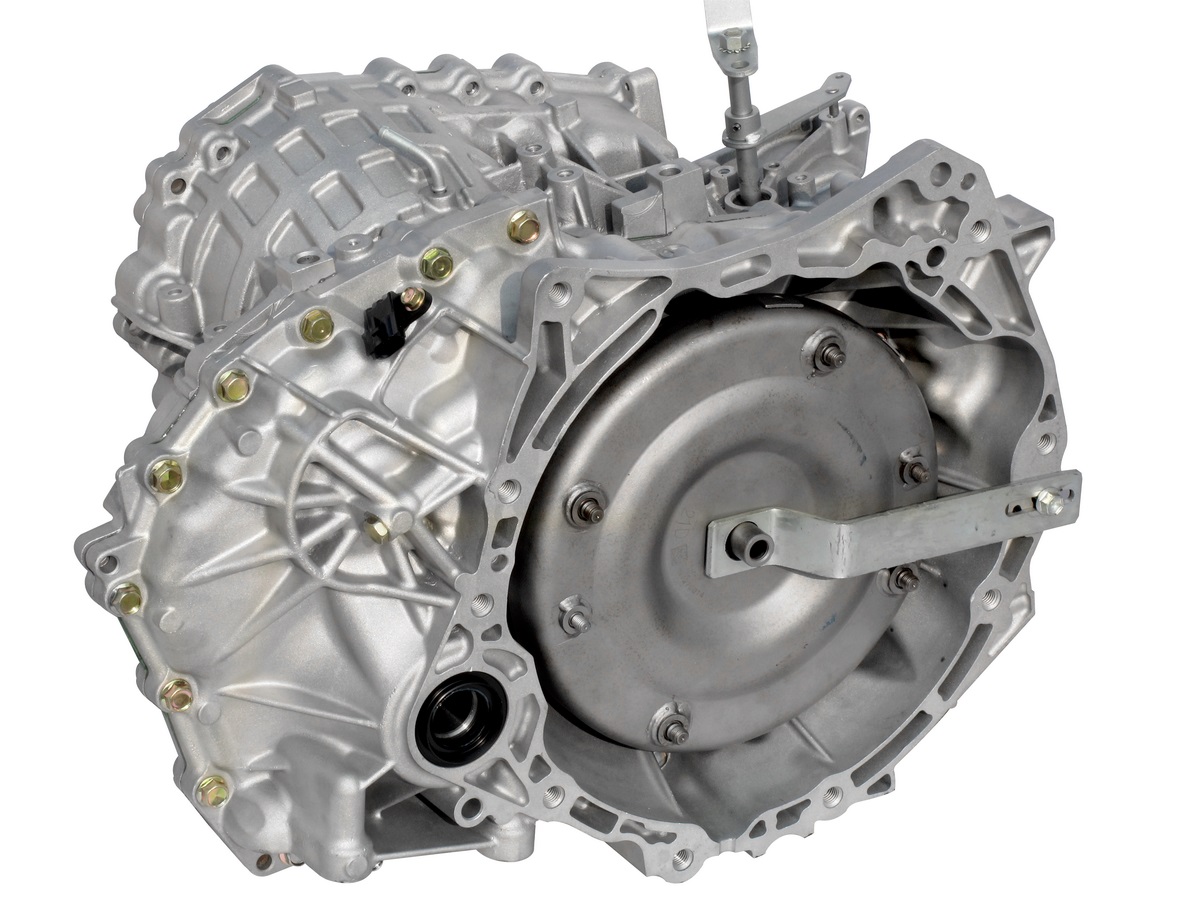

Jatco / Mitsubishi / Nissan / Renault FK0 Gen 2 (JF011E) Transmission

The RE0F10A (JF011E) transmission is a popular Jatco model of 2005 for FWD vehicles with engine capacity from 1.6 up to 2.5 l. This transmission is assumed to be a marvel among CVTs. JF011E is a genuine leader of CVTs with record-breaking productions. It is very popular thanks to its durability, comfort, easy maintenance in combination with a low price. This CVT unit is very maintenance-friendly. Well-timed rebuilding procedures with replacement of spare parts add 3-4 years of service life before the next overhaul.

Speeds ∞
Type CVT
Drive FWD/AWD
Max torque 7,4
ATF capacity (L) 4,5
ATF type CVT Fluid NS-2
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page

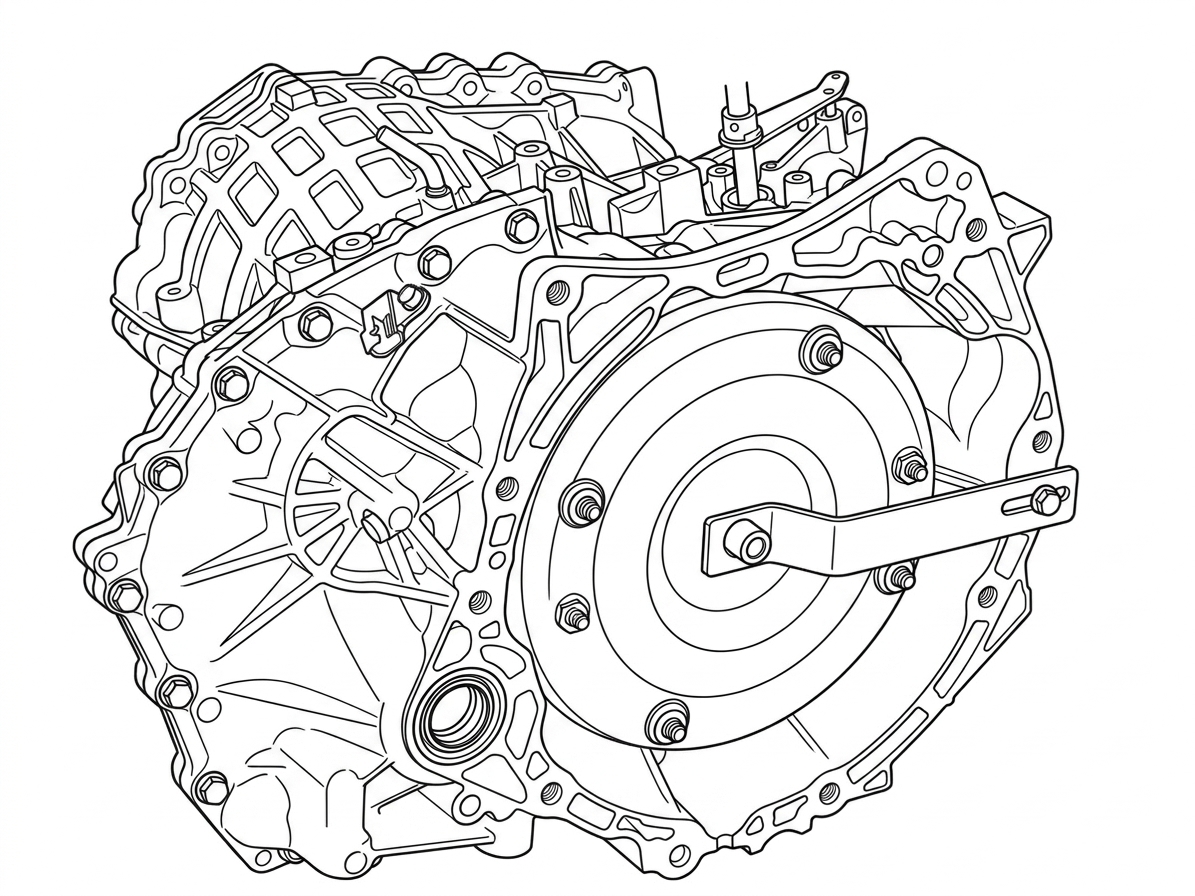

FK0 Gen 2
8.4/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence8.9
Documentation depth10.0
Knowledge & support9.3

Exploded diagram & parts

Full FK0 Gen 2 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

776 776 · No. 1 436 +2 436, 436-1, 369 · No. 2 780 780 · No. 3 076 076 · No. 4 205 205 · No. 5 205-1 205-1 · No. 6 526 526 · No. 7 035 035 · No. 8 278 278 · No. 9 032 032 · No. 10 529-1 529-1 · No. 11 529 529 · No. 12 179 179 · No. 13 670 670 · No. 14 211 211 · No. 15 554 554 · No. 16 273 273 · No. 17 274 274 · No. 18 730 730 · No. 19 712 712 · No. 20 274 274 · No. 21 273 273 · No. 22 796 796 · No. 23 031 031 · No. 24 070 070 · No. 25 750 750 · No. 26 702-1 702-1 · No. 27 525 525 · No. 28 702 702 · No. 29 507-3/507-1 507-3, 507-1 · No. 30 786 786 · No. 31 999-6 999-6 · No. 32 527 527 · No. 33 281 281 · No. 34 778 778 · No. 35 519 519 · No. 36 37 37 · No. 37 533 533 · No. 38 39 39 · No. 39 40 40 · No. 40 532 532 · No. 41 671 671 · No. 42 534 534 · No. 43 528 528 · No. 44 313 313 · No. 45 777 777 · No. 46 036 036 · No. 47 510 510 · No. 48 309/777 309, 777 · No. 49 291 291 · No. 50 292 292 · No. 51 716 716 · No. 52 720 720 · No. 53 292 292 · No. 54 291 291 · No. 55 290* 290* · No. 56 077 077 · No. 57 992 992 · No. 58 991-2 991-2 · No. 59 60 60 · No. 60 991-3 991-3 · No. 61 072/265 072, 265 · No. 62 265 265 · No. 63 964 964 · No. 64 974 974 · No. 65 984 984 · No. 66 877 877 · No. 67 853 853 · No. 68 128/108 128, 108 · No. 69 148 148 · No. 70 876 876 · No. 71 878 878 · No. 72 592 592 · No. 73 878 878 · No. 74 232 232 · No. 75 892 892 · No. 76 150 150 · No. 77 130/110 130, 110 · No. 78 131 131 · No. 79 617 617 · No. 80 232 232 · No. 81 587 587 · No. 82 251 251 · No. 83 893 893 · No. 84 977 977 · No. 85 976 976 · No. 86 966 966 · No. 87 991-5 991-5 · No. 88 994 994 · No. 89 991-4 991-4 · No. 90 999-1 999-1 · No. 91 493 493 · No. 92 371-1 371-1 · No. 93 799-1 799-1 · No. 94 991-1 991-1 · No. 95 760 760 · No. 96 996 996 · No. 97 378 378 · No. 98 496B 496B · No. 99 769 769 · No. 100 326 326 · No. 101 013 013 · No. 102 438 438 · No. 103 492B 492B · No. 104 446A 446A · No. 105 494 494 · No. 106 264 264 · No. 107 047 047 · No. 108 899 899 · No. 109 705 705 · No. 110 861 861 · No. 111 707 707 · No. 112 865 865 · No. 113 971 971 · No. 114 187 187 · No. 115 981 981 · No. 116 694 694 · No. 117 235 235 · No. 118 795 795 · No. 119 120 120 · No. 120 121 121 · No. 121 122 122 · No. 122 994-1 994-1 · No. 123 124 124 · No. 124 125 125 · No. 125 126 126 · No. 126 127 127 · No. 127 128 128 · No. 128 496A 496A · No. 129 996 996 · No. 130 378 378 · No. 131 378 378 · No. 132 761 761 · No. 133 446B 446B · No. 134 379 379 · No. 135 444 444 · No. 136 843 843 · No. 137 347 347 · No. 138 700 700 · No. 139 781 781 · No. 140 415 415 · No. 141 414 414 · No. 142 430 430 · No. 143 425 425 · No. 144 428 428 · No. 145 435 435 · No. 146 495 495 · No. 147 010 010 · No. 148 759 759 · No. 149 783 783 · No. 150 452 452 · No. 151 152 152 · No. 152 469 469 · No. 153 741-1 741-1 · No. 154 765/300 765, 300 · No. 155 797A 797A · No. 156 710 710 · No. 157 227 227 · No. 158 228 228 · No. 159 228 228 · No. 160 862 862 · No. 161 980 980 · No. 162 960 960 · No. 163 183 183 · No. 164 970 970 · No. 165 860A 860A · No. 166 706 706 · No. 167 860B 860B · No. 168 708 708 · No. 169 696 696 · No. 170 229 229 · No. 171 797B 797B · No. 172 691 691 · No. 173 230* 230* · No. 174 391B 391B · No. 175 790 790 · No. 176 488 488 · No. 177 387 387 · No. 178 691-2 691-2 · No. 179 691-3 691-3 · No. 180

Parts categories

View all parts →
Sell FK0 Gen 2 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

94 applications · 12 makes · 2000–2020 Nissan 40 · Mitsubishi 13 · Renault 10 · Suzuki 7 · Jeep 6

Make Model Year Drive Engine
Chrysler CALIBER 2007 CVT AWD L4 2.4L
Chrysler CALIBER 2006-2012 CVT F/AWD L4 2.0/2.4L
Citroen C-CROSSER 2009-2011 CVT F/AWD L4 2.4L
Citroen C4 AIRCROSS 2013-2014 CVT FWD L4 2.0L
Citroen RVR 2012-2016 CVT F/4WD L4 1.6L
Dodge Caliber 2007-2012 1.8, 2.0, 2.4
Dodge Caliber 2007 CVT AWD L4 2.4L
Dodge Caliber 2006-2012 L4 1.8, 2.0, 2.4L
Dodge CALIBER 2006-2012 CVT F/AWD L4 2.0/2.4L
Eagle CALIBER 2007 CVT AWD L4 2.4L
Eagle CALIBER 2006-2012 CVT F/AWD L4 2.0/2.4L
Infiniti JX/QX60 2012-2016 CVT F/4WD L4 2.5L V6 3.5L
Jeep Compass 2007-2013 2.0, 2.4
Jeep Compass 2006-2020 L4 2.0, 2.4L
Jeep COMPASS/PATRIOT 2007-2012 CVT FWD/AWD L4 2.4L
Jeep Patriot 2007-2020 L4 2.0, 2.4L
Jeep Patriot 2007-2016 CVT F/4WD L4 2.0/2.4L
Jeep Patriot 2007-2013 2.0, 2.4
Mitsubishi ASX 2013-2014 CVT FWD L4 2.0L
Mitsubishi CX 2010-2011 CVT FWD L4 1.8/2.0L
Mitsubishi DELICA D-5 2007-2013 CVT FWD L4 2.4L
Mitsubishi GALANT FORTIS 2007-2014 CVT FWD L4 1.8/2.0L
Mitsubishi Lancer 2008-2012 2.0, 2.4
Mitsubishi Lancer 2007-2016 CVT F/AWD L4 1.8/2.0/2.4L
Mitsubishi Outlander 2015-2016 CVT 4WD L4 2.2L V6 3.0L/3.2L
Mitsubishi Outlander 2008-2016 CVT F/AWD L4 2.4L
Mitsubishi Outlander 2008-2013 2.0, 2.4, 3.0
Mitsubishi Outlander 2007-2008 CVT FWD 2.4L
Mitsubishi Outlander 2007-2008 CVT AWD 2.4L
Mitsubishi RVR 2012 CVT FWD L4 1.8L/2.0L
Mitsubishi RVR CVT FWD L4 1.6L
Nissan Altima 2012-2016 CVT FWD V6 3.5L
Nissan Altima 2012-2014 3.5
Nissan Altima 2007-2013 2.5
Nissan ALTIMA COUPE 2007-2013 CVT F/AWD L4 2.5L
Nissan Bluebird Sylphy 2005-2012 CVT F/AWD L4 1.8/1.6/2.0L
Nissan Cube 2008-2016 CVT FWD L4 1.6L 1.8L
Nissan Dualis 2007-2013 CVT FWD L4 2.0L
Nissan Elgrand 2013-2016 CVT FWD V6 3.5L
Nissan Elgrand 2013-2014 3.5
Nissan Elgrand 2011-2013 CVT F/AWD L4 2.5L
Nissan Juke 2010-2016 CVT F/AWD L4 1.6L
Nissan Lafesta 2004-2011 CVT FWD L4 2.0L
Nissan Livina Geniss CVT FWD L4 1.8L
Nissan Maxima 2015-2016 CVT FWD L4 2.0/2.5L V6 3.5L
Nissan Murano 2014-2016 CVT F/AWD L4 2.5L V6 3.5L
Nissan Murano 2014 3.5
Nissan Murano 2008-2016 CVT F/AWD L4 2.5L
Nissan Pathfinder 2013-2015 3.5
Nissan Pathfinder 2012-2016 CVT FWD V6 3.5L
Nissan Pulsar 2015-2016 CVT FWD L4 1.6L
Nissan Qashqai CVT Option 2007-2008 CVT FWD 2.0L Petrol
Nissan QASHQAI/QASHQAI+2 2007-2014 CVT F/AWD L4 2.0L
Nissan Quest 2015-2016 CVT FWD V6 3.5L
Nissan Rogue 2008-2013 2.5
Nissan Rogue 2007-2015 CVT F/AWD L4 2.5L
Nissan Sentra 2007-2012 2.0, 2.5
Nissan Sentra /SE-R 2007-2012 CVT L4 2.0L/2.5L
Nissan Sentra /SE-R 2007 CVT FWD L4 2.0L/2.5L
Nissan Serena 2005-2014 CVT F/AWD L4 2.0L
Nissan Serena 2000-2006 CVT FWD L4 2.0L/2.5L
Nissan Teana 2014-2016 CVT FWD V6 2.5/3.5L
Nissan Teana 2013-2016 CVT F/AWD V6 2.5L 3.5L
Nissan Teana 2013-2014 3.5
Nissan Tiida 2012-2013 CVT FWD L4 1.6L
Nissan Versa CVT F/AWD L4 2.0L
Nissan X-Trail 2014-2016 CVT FWD L4 1.6L
Nissan X-Trail 2014 3.5
Nissan X-Trail 2014 2.5
Nissan X-Trail 2008-2014 CVT FWD L4 2.0/2.5L
Nissan X-Trail 2008-2012 2.0, 2.5
Peugeot 4007 2009-2012 CVT F/4WD L4 2.0L 2.4L
Peugeot 4007 2009-2011 CVT F/AWD L4 2.4L
Peugeot 4008 2013-2014 CVT F/AWD L4 2.0L
Peugeot RVR 2012-2016 CVT F/4WD L4 2.0L
Plymouth CALIBER 2007 CVT AWD L4 2.4L
Plymouth CALIBER 2006-2012 CVT F/AWD L4 2.0/2.4L
Renault Fluence 2015-2016 CVT FWD L4 2.0L
Renault Fluence 2011-2012 CVT FWD L4 2.0L
Renault Koleos 2008-2014 CVT F/AWD L4 2.5L
Renault Koleos 2007-2012 2.5
Renault Laguna 2016 CVT FWD L4 1.6L
Renault Latitude 2012-2014 2.5, 3.5
Renault Latitude 2011-2014 CVT FWD V6 2.5L 3.5L
Renault Latitude 2011-2014 CVT FWD L4 2.0L
Renault Megane 2009-2016 CVT FWD L4 1.5/1.6/2.0L
Renault Scenic 2007-2012 CVT FWD L4 1.5/1.6/2.0L
Suzuki KIZACHI/D-CAR 2010-2012 CVT FWD L4 2.4L
Suzuki KIZACHI/D-CAR 2009-2011 CVT F/AWD L4 2.4L
Suzuki Kizashi 2010-2012 2.4
Suzuki SX4 2011-2013 CVT FWD L4 2.0L
Suzuki SX4 2009-2012 2.0
Suzuki SX4 SPORTY 2010-2014 CVT FWD L4 2.0L
Suzuki SX4 SUV 2010-2014 CVT FWD L4 2.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

F1CJ-A
F1CJA
F1CJ A
FK0-228
FK0-223
FK0-224
FK0
FK0-230
FK0 [Gen.2]
FKO
CVT2M
JF011-E
CVT-2M
JF011E
J11E
JF 011-E
CVT2 M
JF017-E
JF 017-E
JF017E
RE0F10E
RE0F10A
W1CJA
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Step-Motor Early Breakdown
Stepper motor regulating cone spacing fails due to overheating or CVT resource exhaustion; inherited issue from RE0F06A.
!
High-Pressure Pump Valve Wear
Worn-out valve in high-pressure pump causes oil pressure shortage, one of the most common repair triggers for JF011E.
!
Input Output Shaft Bearings
4 bearings on input/output shafts fail due to overheating and critical belt wear forcing solenoids to maximum clamping e
!
Metal Push Belt Wear
Bosch RE0F010A metal push belt wears critically, damaging cone surfaces if not replaced timely.
!
Depress Valve Failure
Faulty depress valve in pump causes oil starvation throughout CVT; fix requires replacement with an oversized valve.
!
Cone Surface Wear
Pulley cone surfaces are the primary CVT lifespan limiter; replacement cost can exceed vehicle value on older cars.
?
Oil Starvation CVT Wide
Depress valve failure leads to insufficient oil supply across the CVT, risking widespread internal component damage.
!
Solenoid Resource Exhaustion
Solenoids wear out over service life; some are interchangeable with other Jatco CVTs but differ from Mitsubishi and Dodg
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The RE0F10A (JF011E) transmission is a popular Jatco model of 2005 for FWD vehicles with engine capacity from 1.6 up to 2.5 l. This transmission is assumed to be a marvel among CVTs. JF011E is a genuine leader of CVTs with record-breaking productions. It is very popular thanks to its durability, comfort, easy maintenance in combination with a low price. This CVT unit is very maintenance-friendly. Well-timed rebuilding procedures with replacement of spare parts add 3-4 years of service life before the next overhaul.

Technical issues and repair guidelines

In the process of major repairs, it is required to change the friction clutch of the torque converter lock-up. CVTs produced after 2007 turn out to be reliable (for CVTs) under the condition of proper usage and operates for 150-200 thousand kilometers with a low number of visits to repair services. It is one of the most reliable CVTs around the globe. Common spare parts usually include belt, step-motor (stepper), shaft bearings.

Spare parts of the first priority include:

- seals of the pump, axle shafts (left and right)

- Pan gasket

The step-motor ("stepping" motor of the gear ratio adjustment). The electric drive regulates the space between cones and gear ratio of CVT. Early breakdown of the step-motor is related to the overheating or CVT resource exhaustion. This issue comes from the RE0F06A and it is typical for JF011.

One of the most common reasons for getting into repair services for this transmission is related to the oil pressure shortage connected with improper working of worn-out valve of the high-pressure pump. In many cases, it is required to replace 4 bearings of input and output shafts. The issue is caused by overheating and critical wear-out of the belt, forcing solenoids to apply maximum effort on pressing the belt to cones. One of the most popular spare parts for JF011 units is a metal push belt RE0F010A (Bosch). Timely replaced belt preserves the surface of cones.

Solenoids with exhausted resource are also common for replacement. Some solenoids are interchangeable with other Jatco CVTs. But there also can be some differences with CVTs of Mitsubishi and Dodge. Another typical problem for the RE0F10A (RE0F06A) unit is related to the depress valve. This problem leads to oil starvation in CVT units. In the pump, the valve is replaced by the new one of a larger size. The service life of this CVT and the car itself is estimated by wear-out of cones. Surfaces of cones are considered to be the most important resource of CVT. The price of new cones with replacement service sometimes is higher than the price of an “old” car.
