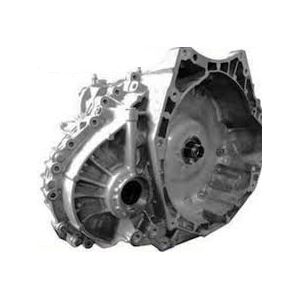

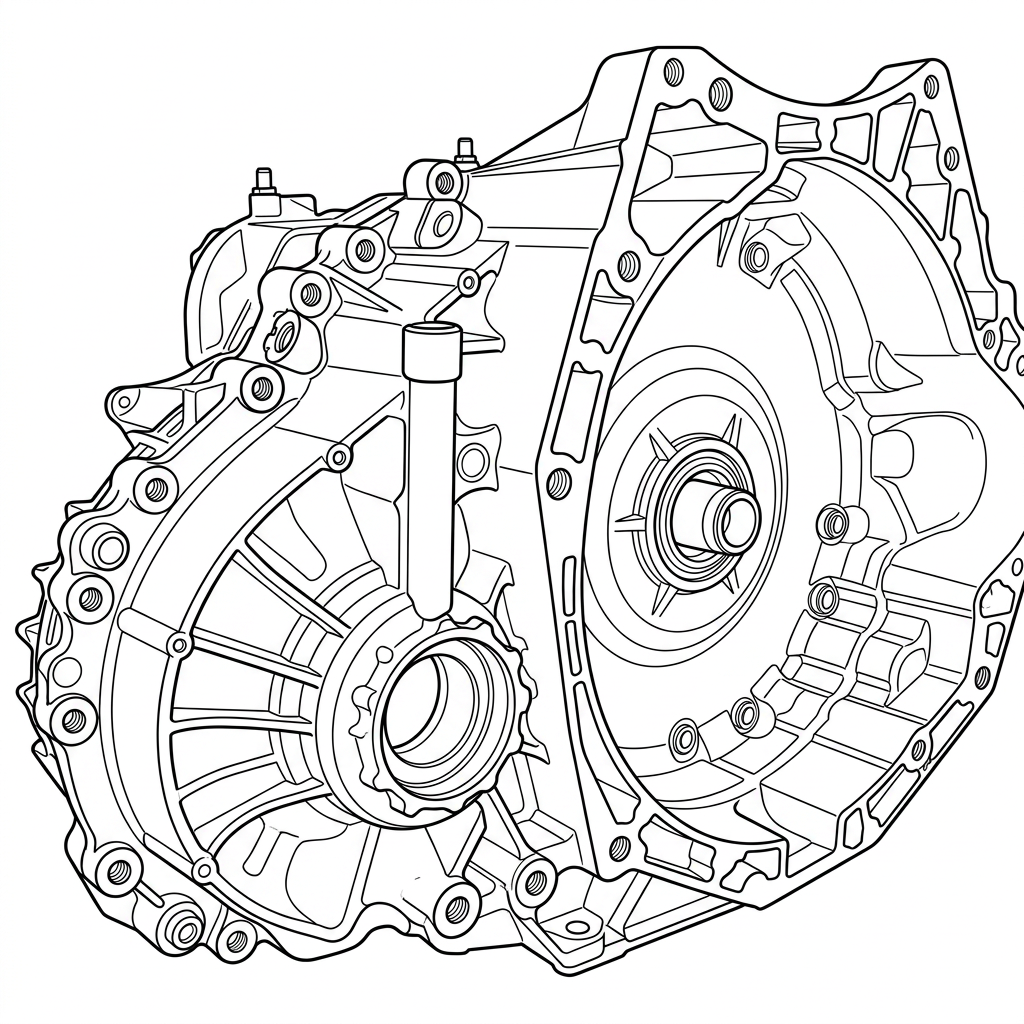

Mazda FW6A-EL Transmission

The 6-speed FWD automatic transmission FW6A-EL with the east-west mounting was developed by Aisin for Mazda. This transmission was installed on Mazda CX-5 with the 2.0 liter engine, Mazda-3, Mazda-6. In terms of design, this transmission is very similar to the U660E transmission produced by AisinWarner. This transmission is considered to be the main competitor of ZF 6HP19-21. The FW6A-EL transmission has the torque converter with a double lock-up clutch that helps to accelerate the transmission faster and with higher efficiency. However, frequent usage of kick-down may lead to…

Speeds 6
Type AT
Drive FWD
Max torque 300
ATF capacity (L) 8
ATF change (L) 5
ATF type ATF-FZ Skyactiv
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
FW6A-EL
5.0/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence1.8
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full FW6A-EL parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

277* 277* · No. 1 273 273 · No. 2 274 274 · No. 3 730 730 · No. 4 712 712 · No. 5 281 281 · No. 6 280 280 · No. 7 999-1 999-1 · No. 8 699 699 · No. 9 129 129 · No. 10 128/108 128, 108 · No. 11 148 148 · No. 12 876* 876* · No. 13 177 177 · No. 14 670 670 · No. 15 048/231 048, 231 · No. 16 048 048 · No. 17 574 574 · No. 18 048 048 · No. 19 233 233 · No. 20 046 046 · No. 21 575 575 · No. 22 046 046 · No. 23 750 750 · No. 24 698 698 · No. 25 776 776 · No. 26 493 493 · No. 27 493-1 493-1 · No. 28 998 998 · No. 29 378 378 · No. 30 378 378 · No. 31 076 076 · No. 32 290* 290* · No. 33 291 291 · No. 34 292 292 · No. 35 716 716 · No. 36 720 720 · No. 37 289 289 · No. 38 288 288 · No. 39 290* 290* · No. 40 077 077 · No. 41 698-2 698-2 · No. 42 791 791 · No. 43 234 234 · No. 44 795 795 · No. 45 710 710 · No. 46 278 278 · No. 47 279 279 · No. 48 760 760 · No. 49 279 279 · No. 50 278 278 · No. 51 967 967 · No. 52 977 977 · No. 53 134/114 134, 114 · No. 54 777 777 · No. 55 179 179 · No. 56 382-2 382-2 · No. 57 382-1 382-1 · No. 58 999-3 999-3 · No. 59 999-2 999-2 · No. 60 070 070 · No. 61 311 311 · No. 62 034 034 · No. 63 510 510 · No. 64 530 530 · No. 65 520 520 · No. 66 209 209 · No. 67 229 229 · No. 68 230 230 · No. 69 555 555 · No. 70 964 964 · No. 71 974 974 · No. 72 984 984 · No. 73 877 877 · No. 74 124/104 124, 104 · No. 75 144 144 · No. 76 873* 873* · No. 77 347 347 · No. 78 995-5 995-5 · No. 79 995-6 995-6 · No. 80 995-3/995-1 995-3, 995-1 · No. 81 995-2 995-2 · No. 82 995-7 995-7 · No. 83 465 465 · No. 84 784 784 · No. 85 422 422 · No. 86 428 428 · No. 87 994 994 · No. 88 992 992 · No. 89 642 642 · No. 90 883* 883* · No. 91 584 584 · No. 92 614 614 · No. 93 612 612 · No. 94 594 594 · No. 95 582 582 · No. 96 950 950 · No. 97 960 960 · No. 98 970 970 · No. 99 610 610 · No. 100 217 217 · No. 101 218* 218* · No. 102 592 592 · No. 103 580 580 · No. 104 042 042 · No. 105 867 867 · No. 106 740 740 · No. 107 425 425 · No. 108 423 423 · No. 109 110 110 · No. 110 298-1 298-1 · No. 111 298 298 · No. 112 113 113 · No. 113 782 782 · No. 114 412 412 · No. 115 411 411 · No. 116 435 435 · No. 117 421 421 · No. 118 440 440 · No. 119 120 120 · No. 120 991-3 991-3 · No. 121 780 780 · No. 122 379 379 · No. 123 446 446 · No. 124 992-1 992-1 · No. 125 126 126 · No. 126 590 590 · No. 127 141* 141* · No. 128 120/100 120, 100 · No. 129 140 140 · No. 130 861 861 · No. 131 146 146 · No. 132 126/106 126, 106 · No. 133 975 975 · No. 134 965 965 · No. 135 228 228 · No. 136 255 255 · No. 137 759 759 · No. 138 010 010 · No. 139 765 765 · No. 140

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to FW6A-EL in the Go4Trans marketplace.
Sell FW6A-EL parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

4 applications · 1 make · 2012–2017 Mazda 4

Make Model Year Drive Engine
Mazda 3/i/s 2012-2017 2.0, 2.5
Mazda 6 2014-2017 2.5
Mazda CX3 2015-2017 2.0
Mazda CX5 2012-2016 2.5

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

FW6AX-EL
FW6A-EL
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Lock-up Pump Damage
Lock-up clutch damages the transmission pump, causing vibrations and ATF leakage through pump seal.
?
Pump Seal ATF Leakage
External ATF leakage through pump seal caused by torque converter lock-up damage to pump housing.
!
Case Center Bearing Wear
Wear of case center bearing caused by repeated kick-down usage on cold ATF, similar to U660E issue.
!
Double Drum High/Low Damage
Damage to the double drum High/Low clutch assembly, a typical failure mode for this transmission.
?
Vibration From Pump Area
Noticeable vibrations resulting from torque converter lock-up damaging the transmission pump.
!
Heat Exchanger Contamination
Heat exchanger blockage reduces ATF cooling efficiency, risking overheating similar to VW TF60-SN issues.
?
ATF Premature Contamination
ATF becomes contaminated earlier than service interval with aggressive or kick-down driving style.
!
Kick-down Induced Failures
Frequent kick-down usage accelerates wear on cold oil, contributing to bearing and drum failures.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 6-speed FWD automatic transmission FW6A-EL with the east-west mounting was developed by Aisin for Mazda. This transmission was installed on Mazda CX-5 with the 2.0 liter engine, Mazda-3, Mazda-6. In terms of design, this transmission is very similar to the U660E transmission produced by AisinWarner. This transmission is considered to be the main competitor of ZF 6HP19-21. The FW6A-EL transmission has the torque converter with a double lock-up clutch that helps to accelerate the transmission faster and with higher efficiency. However, frequent usage of kick-down may lead to failures. This transmission employs reliable Aisin solenoids – linear type solenoids with anodized manifold, which is built into the solenoid body.

This transmission is a “rare guest” in the repair services, repair specialists mainly change oil and filter. It is recommended to change ATF after reaching the mileage of 100 thousand kilometers, and then every 50-60 thousand miles. It is required to monitor ATF transparency regularly, because with aggressive driving style ATF may get contaminated much earlier. In rare cases, transmission specialists face the problem when the torque converter lock-up damages the pump. The issue is expressed in vibrations and leakages through the pump seal. In this case specialists not only replace the seal, but also repair the torque converter and replace clutches. Another problem, similar to the issue in U660E, is wear of the case center bearing. This problem occurs when drivers get carried away with the kick-down on cold oil. One more typical problem of this transmission is damage of the double drum High/Low. After running 100 thousand kilometers it is also recommended to monitor the ATF temperature and the heat exchanger operation, similar to VW problems with the TF60-SN transmission. In old cars repair specialists advice to clean the heat-exchanger during full ATF change, to ensure reaching of 300 thousand kilometers mileage before the overhaul.
