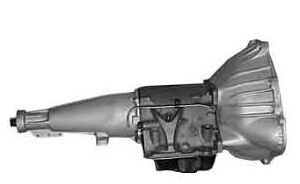

Ford FMX Transmission

The FMX is a fully automatic 3-speed gearbox, ensuring automatic up-shifts and down-shifts via the 3-forward gear ratios. This gearbox also includes manual selection of first and second gears. It is reported that FMX combines in itself the best features of MX and FX modifications.

Speeds 3
Type AT
Drive RWD
ATF capacity (L) 10,4
ATF change (L) 5
ATF type Type F
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
FMX
4.4/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence5.3
Documentation depth0.0
Knowledge & support7.0

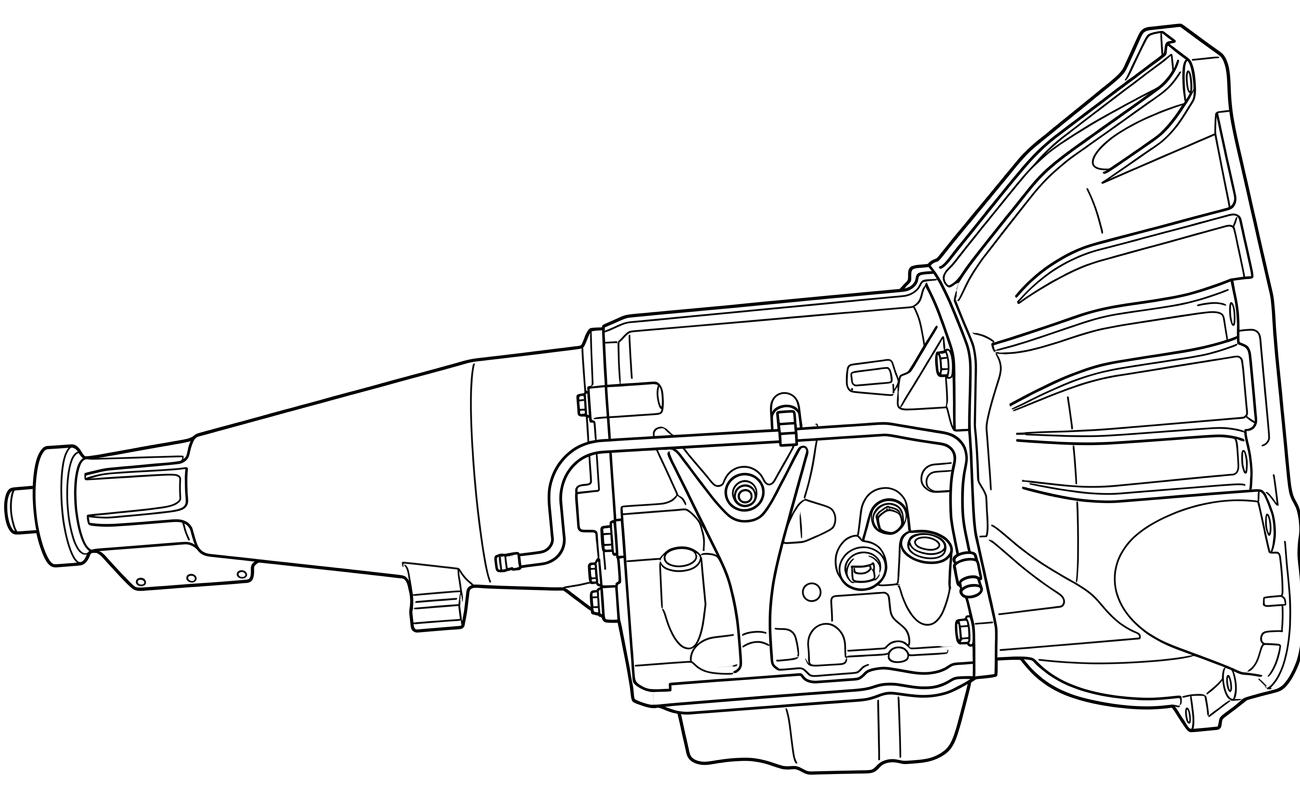

Exploded diagram & parts

Full FMX parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

920 920 · No. 1 750 750 · No. 2 070 070 · No. 3 777 777 · No. 4 034 034 · No. 5 530 530 · No. 6 530 530 · No. 7 035 035 · No. 8 036 036 · No. 9 520 520 · No. 10 311 311 · No. 11 064 064 · No. 12 760 760 · No. 13 876 876 · No. 14 211 211 · No. 15 670 670 · No. 16 047 047 · No. 17 128/108 128, 108 · No. 18 149 149 · No. 19 235 235 · No. 20 574 574 · No. 21 877 877 · No. 22 974 974 · No. 23 974-1 974-1 · No. 24 964 964 · No. 25 334 334 · No. 26 335 335 · No. 27 554 554 · No. 28 410 410 · No. 29 327 327 · No. 30 164 164 · No. 31 160 160 · No. 32 916 916 · No. 33 918-1 918-1 · No. 34 918-4 918-4 · No. 35 909/906 909, 906 · No. 36 997 997 · No. 37 992 992 · No. 38 349 349 · No. 39 232 232 · No. 40 233 233 · No. 41 878 878 · No. 42 146 146 · No. 43 128/106 128, 106 · No. 44 852 852 · No. 45 879985 879985 · No. 46 879985 879985 · No. 47 975 975 · No. 48 965 965 · No. 49 336 336 · No. 50 337 337 · No. 51 228 228 · No. 52 555 555 · No. 53 046 046 · No. 54 022 022 · No. 55 359 +4 359, 907A, 360, 907, 896A · No. 56 925 925 · No. 57 740 740 · No. 58 911 +6 911, 912, 363, 914-1, 896, 914, 916-1 · No. 59 916A 916A · No. 60 917 917 · No. 61 010 010 · No. 62 63 63 · No. 63 64 64 · No. 64 65 65 · No. 65 66 66 · No. 66 67 67 · No. 67 229 229 · No. 68 181 181 · No. 69 179 179 · No. 70 614 614 · No. 71 182 182 · No. 72 240 240 · No. 73 044 044 · No. 74 630 630 · No. 75 654 654 · No. 76 241 241 · No. 77 242 242 · No. 78 058A 058A · No. 79 584 584 · No. 80 058 058 · No. 81 058B 058B · No. 82 251 251 · No. 83 024 024 · No. 84 765/300 765, 300 · No. 85 86 86 · No. 86 87 87 · No. 87 88 88 · No. 88 89 89 · No. 89 90 90 · No. 90 189 189 · No. 91 779 779 · No. 92 594 594 · No. 93 678 678 · No. 94 889 889 · No. 95 268 268 · No. 96 034B 034B · No. 97 634/305D 634, 305D · No. 98 680 680 · No. 99 894 894 · No. 100 848 848 · No. 101 774 774 · No. 102 781 781 · No. 103 697 697 · No. 104 272 272 · No. 105 271 271 · No. 106 895 895 · No. 107 272 272 · No. 108 847 847 · No. 109 305/770 305, 770 · No. 110 989 989 · No. 111 066 066 · No. 112 074 074 · No. 113 841 841 · No. 114 798 798 · No. 115 305 305 · No. 116 770 770 · No. 117 066 066 · No. 118 074 074 · No. 119 848 848 · No. 120 774 774 · No. 121

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to FMX in the Go4Trans marketplace.
Sell FMX parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

30 applications · 2 makes · 1968–1979 Ford 20 · Mercury 10

Make Model Year Drive Engine
Ford Capri 1968-1976 L4 1.3, 1.5, 2.0L
Ford Capri 1968-1976 1.3, 1.5, 2.0
Ford Corsair 1968-1970 L4 1.7L
Ford Corsair 1968-1970 1.7
Ford Cortina 1968-1970 L4 1.5L
Ford Cortina 1968-1970 1.5
Ford F100 - Pickup 1973-1976 L6,V8 3.9L
Ford F350- Pickup 1971-1976 L6 3.9,4.9L
Ford Falcon 1968-1970 L6, V8 2.8, 4.7, 5.0L
Ford Falcon 1968-1970 2.8, 4.7, 5.0
Ford LTD II 1977-1979 V8 5.0, 5.8L
Ford LTD II 1977-1979 5.0, 5.8
Ford Mustang 1970-1973 L6, V8 3.3, 4.1, 5.0, 5.8, 6.4, 7.0L
Ford Mustang 1970-1973 3.3, 4.1, 5.0, 5.8, 6.4, 7.0
Ford Thunderbird 1975-1979 V8 5.0, 5.8L
Ford Thunderbird 1975-1979 5.0, 5.8
Ford Torino 1969-1976 L6, V8 4.1, 5.0L
Ford Torino 1969-1976 4.1, 5.0
Ford Truck F100 1/2 Ton - Pickup 1973-1976 3.9
Ford Truck F350 1 Ton - Pickup 1971-1976 3.9, 4.9
Mercury Capri 1971 L4 1.6,2.0L
Mercury Capri 1971 1.6, 2.0
Mercury Colony Park 1968 V8 5L
Mercury Colony Park 1968 5.0
Mercury Cougar 1971-1978 V8 5.8L
Mercury Cougar 1971-1978 5.8
Mercury Cyclone 1968-1971 V8 5.0,5.8,6.4,7.0L
Mercury Cyclone 1968-1971 5.0, 5.8, 6.4, 7.0
Mercury Montego 1970-1976 V8 6.6, 7.0, 7.5L
Mercury Montego 1970-1976 6.6, 7.0, 7.5

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

FMX
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

No symptoms recorded yet.

Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The FMX is a fully automatic 3-speed gearbox, ensuring automatic up-shifts and down-shifts via the 3-forward gear ratios. This gearbox also includes manual selection of first and second gears. It is reported that FMX combines in itself the best features of MX and FX modifications.

Technical issues and repair guidelines

This is a hydraulically controlled RWD gearbox. In terms of design this unit is close to BW8 and BW12, but spare parts are not interchangeable. FMX consists of the following main components: torque converter, oil pump, input shaft, rear-clutch, front-clutch, compound planetary gear set, rear band, one-way clutch, rear support-oil distributor and parking gear, governor, output shaft, vacuum diaphragm, control valve body, front band. This automatic gearbox was used during 1968-81 in many Ford cars.
