Mitsubishi F4A41

Transmission general data

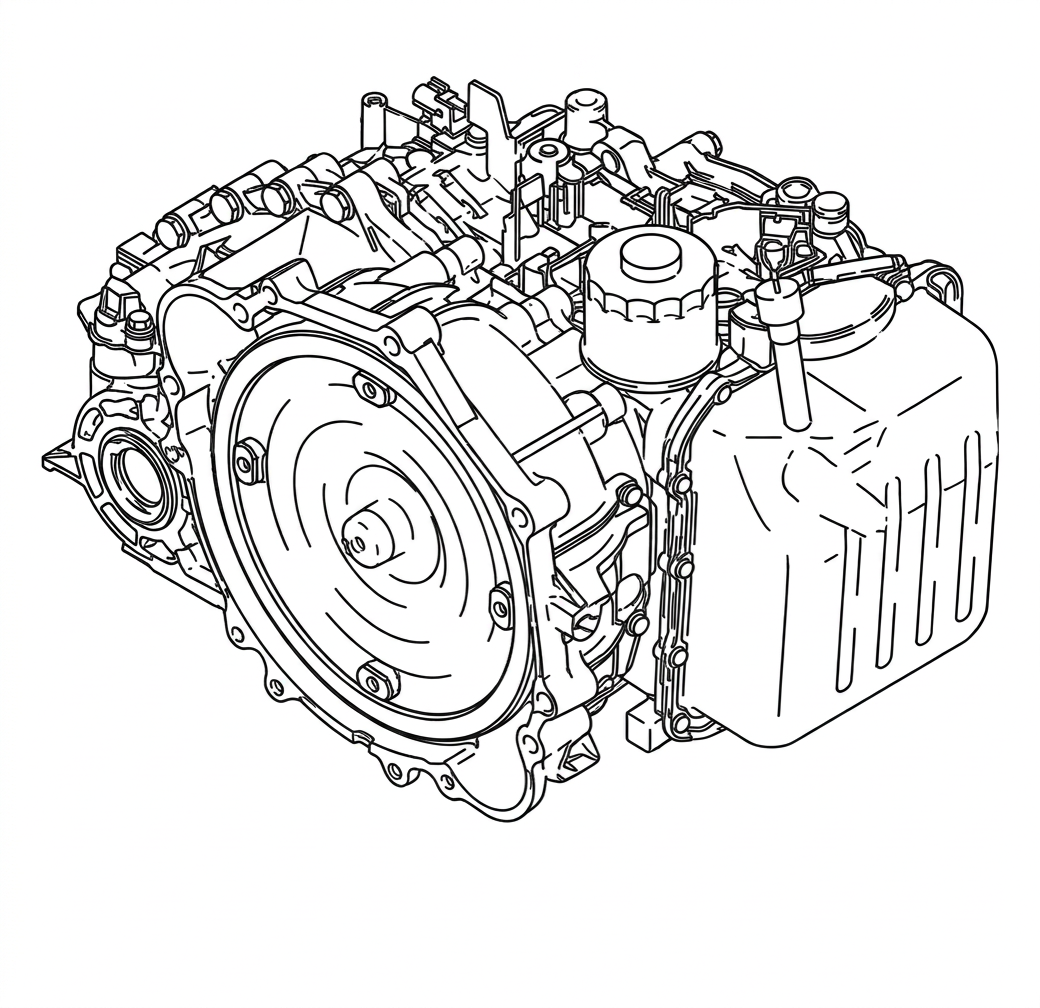

The 4-speed automatic transmission F4A41 / F4A42 from Mitsubishi was designed in 1997 for FWD vehicles of the middle class with engines (1.3 - 2.8 lit.). This transmission was strongly influenced by Chrysler. In terms of design, this range of transmissions is more related to А604, then to KM series. The F4A41 unit is installed with engines 1.3 - 1.8 lit., updated modification F4A42 for engines 1.6 - 2.8 lit F4A41-42 has been used since 1999 on many well-known FWD cars of middle class with engine capacity about 2 lit. The W4A42 is a rare version on the basis of FWD automatic gearbox for 4WD light motor vehicles.

Technical issues and repair guidelines

This Mitsubishi-Hyundai family of transmissions is frequently repaired. The distinction between F4A41 and F4A42 units lies in distinct quantity of frictions in packs, and consequently clutch drums of various capacity. The transmission reassembly commonly requires the kit of gaskets and seals, filters and complete kit of frictions. In old cars which went through the oil starvation, specialists change the entire kit of bushings together with usual procedures related to cleaning and reassembly.

In terms of design, the main soft spot of the F4A41 unit is the planetary gear Overdrive, where the needle bearer gets dyed when exposed to overloading. The rear planetary gear and a crown gear also get out of order. This planetary gear was repeatedly updated. In most cases, specialists replace burnt Overdrive package, frictions with steel and bearing discs. The valve body is one of the causes for burning of packages Underdrive and 2-nd Brake. The wearout and clogging of valves and solenoids leads to fluid shortages not only in these packs, but also in the TC unit. The valve body was repeatedly updated and now has modifications with 5 and 6 solenoids.
