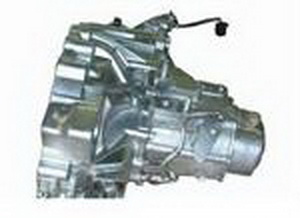

Mazda F3A Transmission

The 3-speed automatic transmission F3A was designed by Mazda for its top of the line FWD vehicle Mazda 626 in 1983, when 3-speed automatic transmissions were extremely popular.

Speeds 3
Type AT
Drive FWD
Max torque 120
ATF capacity (L) 6,6
ATF change (L) 3
ATF type Dexron VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page

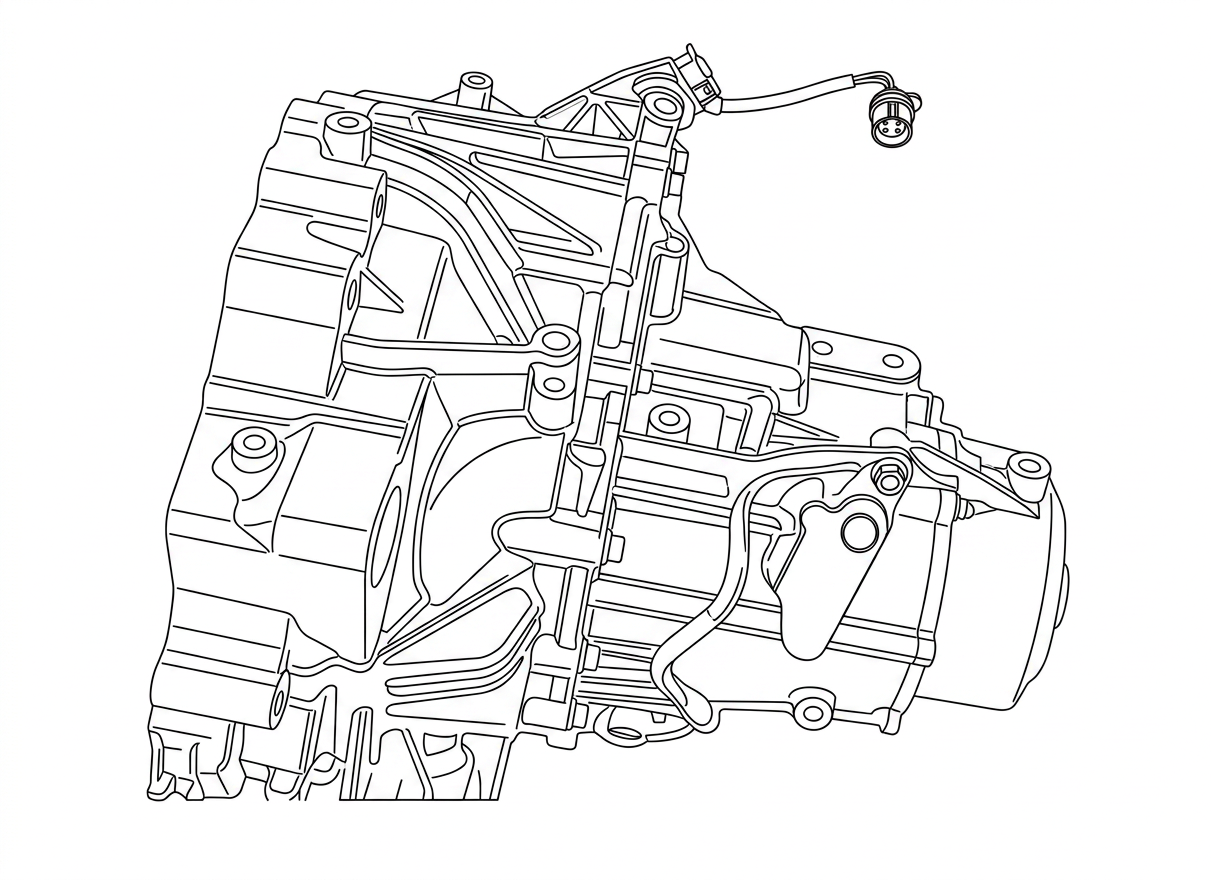

F3A

Exploded diagram & parts

Full F3A parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

686 +3 686, 306, 680-1, 680-6 · No. 1 494 494 · No. 2 3 3 · No. 3 774 774 · No. 4 291 291 · No. 5 292847 292847 · No. 6 292847 292847 · No. 7 716 +2 716, 720, 289 · No. 8 288 288 · No. 9 290* 290* · No. 10 399 399 · No. 11 725 725 · No. 12 189 189 · No. 13 680-2 +2 680-2, 265, 266 · No. 14 371 371 · No. 15 493 493 · No. 16 17 17 · No. 17 18 18 · No. 18 793 793 · No. 19 361 +5 361, 909, 361B, 362, 907, 896 · No. 20 21 21 · No. 21 22 22 · No. 22 23 23 · No. 23 070 070 · No. 24 032 032 · No. 25 529 529 · No. 26 381 381 · No. 27 750 750 · No. 28 374 374 · No. 29 679 679 · No. 30 282 282 · No. 31 283 283 · No. 32 33 33 · No. 33 284B 284B · No. 34 284 284 · No. 35 283 283 · No. 36 282 282 · No. 37 799 799 · No. 38 684/345 684, 345 · No. 39 680-3 680-3 · No. 40 760 760 · No. 41 906 906 · No. 42 43 43 · No. 43 44 44 · No. 44 45 45 · No. 45 273 273 · No. 46 274 274 · No. 47 730 730 · No. 48 274 274 · No. 49 273 273 · No. 50 735 735 · No. 51 010 010 · No. 52 740 740 · No. 53 999 999 · No. 54 160 160 · No. 55 434 434 · No. 56 346 346 · No. 57 376 376 · No. 58 164 164 · No. 59 410 410 · No. 60 377 377 · No. 61 765/300 765, 300 · No. 62 671 671 · No. 63 049 049 · No. 64 673 673 · No. 65 892 892 · No. 66 663 663 · No. 67 652 652 · No. 68 694 694 · No. 69 154 154 · No. 70 134/114 134, 114 · No. 71 857 857 · No. 72 885 885 · No. 73 987 987 · No. 74 75 75 · No. 75 76 76 · No. 76 77 77 · No. 77 78 78 · No. 78 977 977 · No. 79 80 80 · No. 80 81 81 · No. 81 82 82 · No. 82 83 83 · No. 83 967 967 · No. 84 339 339 · No. 85 338 338 · No. 86 231 231 · No. 87 232 232 · No. 88 890 890 · No. 89 690 690 · No. 90 889 889 · No. 91 604 604 · No. 92 594 594 · No. 93 235 235 · No. 94 236 236 · No. 95 662 662 · No. 96 584 584 · No. 97 98 98 · No. 98 890 890 · No. 99 235 235 · No. 100 243 243 · No. 101 622 622 · No. 102 619 619 · No. 103 052 052 · No. 104 612 612 · No. 105 052 052 · No. 106 238 238 · No. 107 582 582 · No. 108 236 236 · No. 109 235 235 · No. 110 592 592 · No. 111 574 574 · No. 112 882 882 · No. 113 232 232 · No. 114 876 876 · No. 115 231 231 · No. 116 146 146 · No. 117 126/106 126, 106 · No. 118 877 877 · No. 119 984 984 · No. 120 121 121 · No. 121 974 974 · No. 122 123 123 · No. 123 124 124 · No. 124 125 125 · No. 125 126 126 · No. 126 964 964 · No. 127 334/335 334, 335 · No. 128 554 554 · No. 129 229 229 · No. 130 228* 228* · No. 131 146 146 · No. 132 126/106 126, 106 · No. 133 879 879 · No. 134 985 985 · No. 135 136 136 · No. 136 137 137 · No. 137 975 975 · No. 138 139 139 · No. 139 140 140 · No. 140 141 141 · No. 141 142 142 · No. 142 965 965 · No. 143 336/337 336, 337 · No. 144 555 555 · No. 145 038 038 · No. 146 916 916 · No. 147 181 181 · No. 148 179 179 · No. 149 777 777 · No. 150 022 022 · No. 151 211* 211* · No. 152 036 036 · No. 153 778 778 · No. 154 520 520 · No. 155 543 543 · No. 156 530 530 · No. 157 035 035 · No. 158 310/530 310, 530 · No. 159

Parts categories

View all parts →
Sell F3A parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

25 applications · 7 makes · 1981–1997 Ford 8 · Isuzu 5 · Geo 4 · Mazda 4 · Mercury 2

Make Model Year Drive Engine
Chevrolet Storm 1990-1993 3 Spd FWD L4 1.6L
Ford Aspire 1994-1997 3 Spd FWD L4 1.3L
Ford Aspire 1994-1997 L4 1.3L
Ford Aspire 1994-1997 3 Spd FWD L4 1.6L
Ford Aspire 1994-1997 1.3
Ford Festiva 1990-1993 3 Spd FWD L4 1.6L
Ford Festiva 1988-1993 L4 1.3L
Ford Festiva 1988-1993 1.3
Ford TRACER 1987-1990 3 Spd FWD L4 1.6L
Geo Spectrum 1986-1989 1.5
Geo Storm 1990-1993 3 Spd FWD L4 1.6L
Geo Storm 1990-1993 3 Spd FWD L4 1.6/1.8L
Geo Storm 1990-1993 1.6,1.8
GMC Storm 1990-1993 3 Spd FWD L4 1.6L
Isuzu I-Mark 1985-1989 3 Spd FWD 1.5L
Isuzu I-Mark 1981-1989 1.5, 1.6, 1.8
Isuzu Stylus 1991-1993 3 Spd FWD L4 1.3L
Isuzu Stylus 1991-1993 3 Spd FWD L4 1.6L
Isuzu Stylus 1991-1993 1.6, 1.8
Mazda 323 1986-1989 1.6
Mazda 323 1984-1991 3 Spd FWD 1.4L Diesel
Mazda 626 1981-1987 2.0
Mazda GLC 1981-1985 1.3, 1.4, 1.5
Mercury Tracer 1987-1990 L4 1.6L
Mercury Tracer 1987-1990 1.6

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

F3A
JATCO F3A
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

No symptoms recorded yet.

Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 3-speed automatic transmission F3A was designed by Mazda for its top of the line FWD vehicle Mazda 626 in 1983, when 3-speed automatic transmissions were extremely popular.

This transmission turned out to be quite good in the ratio price\quality, and despite some vulnerabilities, after some adjustments it was used on Ford vehicles in the class up to 1.6 liters - Ford Festiva, Stylus, Aspire.

Technical issues and repair guidelines

This transmission was also installed on Chevrolet Spectrum and Mazda started using this transmission in 1986 on the 323 model.Then GEO, Suzuki Swift, and Mercury had been using this transmission until 1995. Ford had been manufacturing a budgetary Aspire equipped with the F3A until 1997, when 3-speed automatic transmissions were ousted from the market. It’s a very rare case when the F3A transmission gets in repair services. Spare parts for repair of this transmission are only kits of gaskets and seals and kit of bushings. The open filter with a metal lath gets replaced quite rarely, in most cases it is just washed for reasons of economy.
