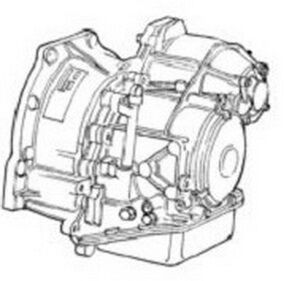

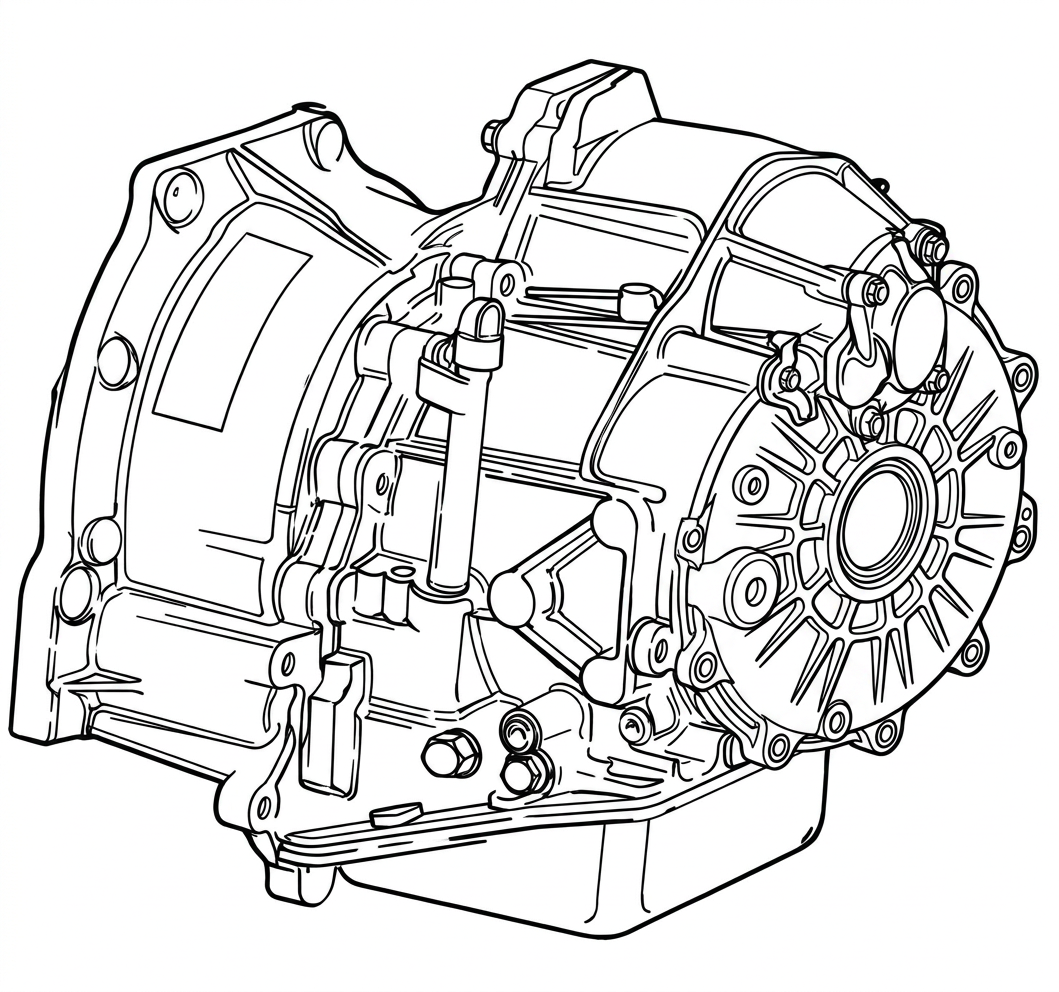

Ford CTX Transmission
In 1987 Ford and Fiat started to produce the type of automatic transmission called CVT. This innovative system was designed on the basis of the Van Doome mechanism, which was installed in small cars (DAF) in 1955.
Speeds
∞
Type
CVT
Drive
FWD
ATF capacity (L)
3,6
ATF type
MVATF PLUS
Find transmission shops
Report a mistake on this page
Contribute info
This feature is in progress and will be available soon.
1.7/10
Support & Market Presence Index
Niche / hard to source
How widely this transmission is used, documented and supported across the Go4Trans graph.
Market presence1.3
Documentation depth0.0
Knowledge & support4.0
Sell CTX parts on Go4TransStart selling →
Vehicle fitment explorer
Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.
4 applications · 2 makes · 1989–2000 Ford 3 · Volkswagen 1
| Make | Model | Year | Drive | Engine |
|---|---|---|---|---|
| Ford | Escort UK | 1989-1995 | CVT FWD | 1.3L, 1.4L, 1.6L |
| Ford | Fiesta | 1995-2000 | CVT FWD | 1.25L, 1.4L, 1.6L |
| Ford | Fiesta | 1989-1995 | CVT FWD | 1.1L, 1.4L |
| Volkswagen | Orion | 1989-1993 | CVT FWD | 1.3L, 1.6L |
Other and alternative codes of this transmission
+ Contribute
This feature is in progress and will be available soon.
CTX
verified naming
OEM designation
source name
Common problems & symptoms
Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.
No symptoms recorded yet.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom
This feature is in progress and will be available soon.
About this transmission
Transmission general data
In 1987 Ford and Fiat started to produce the type of automatic transmission called CVT. This innovative system was designed on the basis of the Van Doome mechanism, which was installed in small cars (DAF) in 1955.
The Ford CTX transmission operates on the principle of belt driving applied in Van Doome transmissions, but with some peculiarity, namely, usage of a single steel belt (operating in compression) instead of two rubber drive belts (operating in tension).
Technical issues and repair guidelines
This type of gearboxes is used for FWD vehicles with the capacity up to 1.6 liters. It is claimed, that this transmission is more economically viable solution in comparison with usual automatic gearboxes.
This transmission has a smoothly shifting gear ratio over the entire speed range. Transmission of the torque from the engine to the main drive shaft is performed not via converter, but through the multi-plate clutch. The transmission control unit provides an optimal gear ratio for any driving mode with a maximum efficiency coefficient of the engine. There is a kick-down mode which facilitates to the speed increase in cases of overtaking or uphill movement. This mode is activated when the accelerator pedal is fully depressed and held in this state.
