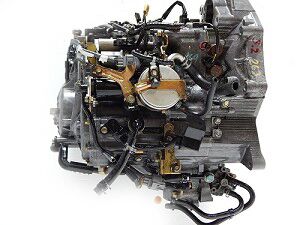

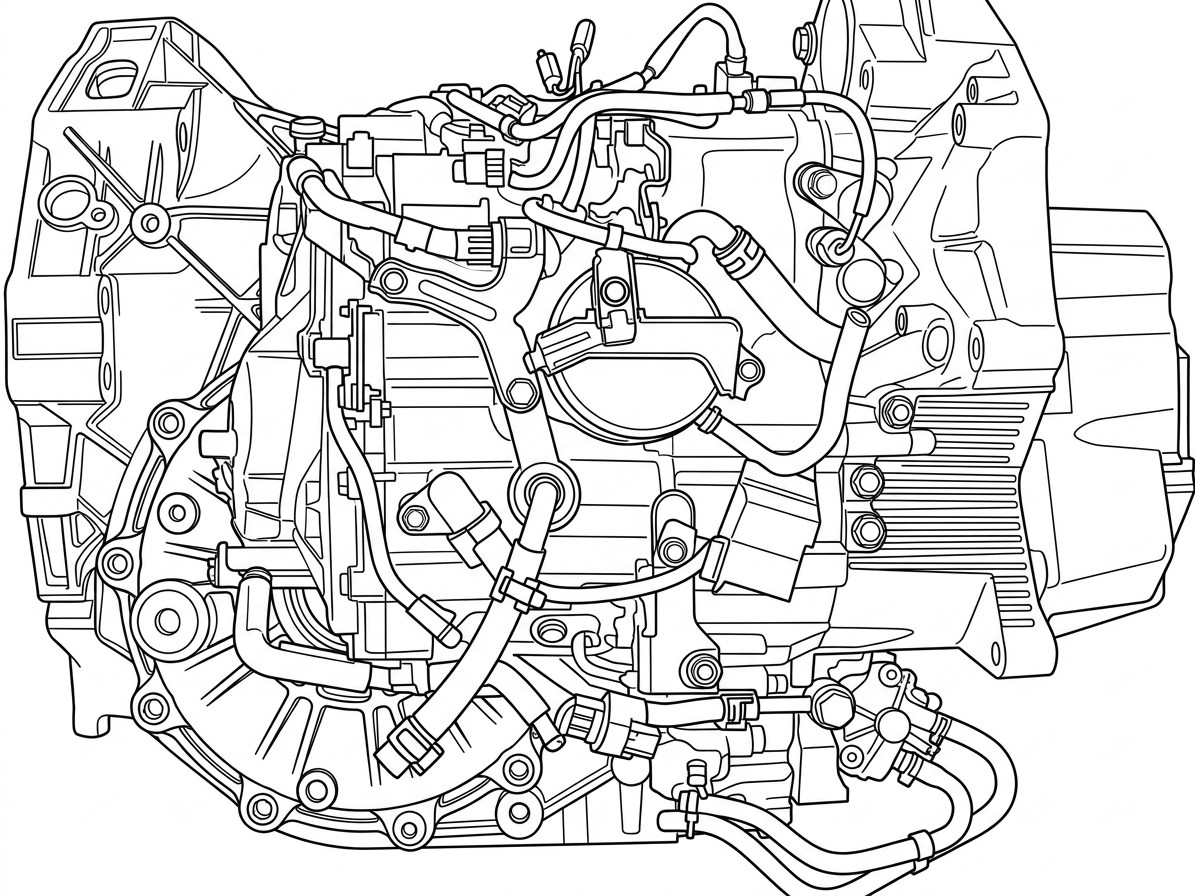

Honda BGHA Transmission

This family of 5-speed automatic transmissions Honda includes several sub-groups. A typical order for reassembly of 5-speed automatic transmission in old cars includes the following:

Speeds 5
Type AT
Drive AWD
ATF capacity (L) 7,9
ATF change (L) 3,3
ATF type Honda Z-1
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
BGHA
4.7/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence0.6
Documentation depth10.0
Knowledge & support6.5

Exploded diagram & parts

Full BDGA parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

1 1 · No. 1 2 2 · No. 2 3 3 · No. 3 4 4 · No. 4 5 5 · No. 5 6 6 · No. 6 7 7 · No. 7 8 8 · No. 8 672 672 · No. 9 217 217 · No. 10 220 220 · No. 11 12 12 · No. 12 217 217 · No. 13 224 224 · No. 14 861 861 · No. 15 140* 140* · No. 16 120/100 120, 100 · No. 17 850 850 · No. 18 862 862 · No. 19 980 980 · No. 20 970 970 · No. 21 22 22 · No. 22 331 331 · No. 23 24 24 · No. 24 330 330 · No. 25 26 26 · No. 26 27 27 · No. 27 28 28 · No. 28 29 29 · No. 29 850 850 · No. 30 120/100 120, 100 · No. 31 140* 140* · No. 32 33 33 · No. 33 225 225 · No. 34 226 226 · No. 35 229 229 · No. 36 229 229 · No. 37 812 812 · No. 38 232 232 · No. 39 233 233 · No. 40 880 880 · No. 41 235 235 · No. 42 710 710 · No. 43 207 207 · No. 44 795 795 · No. 45 689A 689A · No. 46 238 238 · No. 47 888 888 · No. 48 239 239 · No. 49 887 887 · No. 50 51 51 · No. 51 240 240 · No. 52 242 242 · No. 53 241 241 · No. 54 241 241 · No. 55 802 802 · No. 56 296 296 · No. 57 574 574 · No. 58 654 654 · No. 59 294 294 · No. 60 297 297 · No. 61 885 885 · No. 62 577 577 · No. 63 242 242 · No. 64 675 675 · No. 65 861/148* 861, 148* · No. 66 128/108 128, 108 · No. 67 857 857 · No. 68 152 152 · No. 69 132/112 132, 112 · No. 70 877 877 · No. 71 987 987 · No. 72 977 977 · No. 73 967 967 · No. 74 340 340 · No. 75 969 969 · No. 76 334 334 · No. 77 552 552 · No. 78 333 333 · No. 79 962 962 · No. 80 972 972 · No. 81 982 982 · No. 82 862 862 · No. 83 124/104 124, 104 · No. 84 144* 144* · No. 85 873 873 · No. 86 252 252 · No. 87 253 253 · No. 88 229 229 · No. 89 229 229 · No. 90 803 803 · No. 91 253 253 · No. 92 255 255 · No. 93 889 889 · No. 94 710 710 · No. 95 286 286 · No. 96 206 206 · No. 97 796 796 · No. 98 689B 689B · No. 99 254 254 · No. 100 676 676 · No. 101 801 801 · No. 102 810 810 · No. 103 887 887 · No. 104 105 105 · No. 105 267 267 · No. 106 887 887 · No. 107 108 108 · No. 108 269 269 · No. 109 886 886 · No. 110 271 271 · No. 111 813 813 · No. 112 835 835 · No. 113 830 830 · No. 114 816 816 · No. 115 273 273 · No. 116 804 804 · No. 117 274 274 · No. 118 890 890 · No. 119 690 690 · No. 120 281 281 · No. 121 285 285 · No. 122 710 710 · No. 123 281 281 · No. 124 282 282 · No. 125 146 146 · No. 126 126/106 126, 106 · No. 127 850 850 · No. 128 862 862 · No. 129 985 985 · No. 130 975 975 · No. 131 965 965 · No. 132 133 133 · No. 133 134 134 · No. 134 337 337 · No. 135 555 555 · No. 136 287 287 · No. 137 208 208 · No. 138 796 796 · No. 139 422 422 · No. 140 421 421 · No. 141 425 425 · No. 142 425 425 · No. 143 368 368 · No. 144 774 774 · No. 145 146 146 · No. 146 147 147 · No. 147 148 148 · No. 148 411 411 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 154 154 · No. 154 155 155 · No. 155 840 840 · No. 156 276 276 · No. 157 708 708 · No. 158 277 277 · No. 159 275 275 · No. 160 284 284 · No. 161 818 818 · No. 162 283 283 · No. 163 283 283 · No. 164 819 819 · No. 165 204 204 · No. 166 820 820 · No. 167 328B 328B · No. 168 756 756 · No. 169 436 436 · No. 170 769 769 · No. 171 013 013 · No. 172 493 493 · No. 173 494 494 · No. 174 438 438 · No. 175 077 077 · No. 176 750 750 · No. 177 747 747 · No. 178 530 530 · No. 179 530 530 · No. 180 535 535 · No. 181 740 740 · No. 182 924-3 924-3 · No. 183 924 924 · No. 184 185 185 · No. 185 186 186 · No. 186 187 187 · No. 187 290 290 · No. 188 291 291 · No. 189 292 292 · No. 190 707 707 · No. 191 716 716 · No. 192 720 720 · No. 193 289 289 · No. 194 288 288 · No. 195 290 290 · No. 196 899* 899* · No. 197 076 +2 076, 760, 318 · No. 198 199 199 · No. 199 999 999 · No. 200 201 201 · No. 201 759/305 759, 305 · No. 202 439 439 · No. 203 204 204 · No. 204 205 205 · No. 205 206 206 · No. 206 207 207 · No. 207 208 208 · No. 208 209 209 · No. 209 210 210 · No. 210 211 211 · No. 211 212 212 · No. 212 213 213 · No. 213 214 214 · No. 214 900-2 900-2 · No. 215 216 216 · No. 216 217 217 · No. 217 218 218 · No. 218 786 786 · No. 219 220 220 · No. 220 221 221 · No. 221 439 439 · No. 222 010 010 · No. 223 991-2 991-2 · No. 224 991-4 991-4 · No. 225 072 072 · No. 226 298 298 · No. 227 228 228 · No. 228 229 229 · No. 229 230 230 · No. 230 231 231 · No. 231 410 410 · No. 232 757 757 · No. 233 437 437 · No. 234

Parts categories

View all parts →
Sell BGHA parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

2 applications · 1 make · 2001–2002 Acura 2

Make Model Year Drive Engine
Acura MDX 2001-2002 5 Spd AWD V6 3.5L
Acura MDX 2001-2002 3.5

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

BGHA
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Low Hub One-Way Clutch
Gets wedged due to overloading, causing sun gear breakage in the transmission.
?
Sun Gear Breakage
Sun gear breaks as a result of the Low Hub one-way clutch seizing under overload conditions.
!
3rd Drum Rear Damage
High torque from 3-liter engine damages the rear drum of the 3rd clutch package.
!
3rd Drum Spring Breakage
Spring inside the 3rd drum breaks, causing damage to the entire clutch unit assembly.
!
EPC Line Pressure Solenoid
EPC solenoids fail due to ageing and overheating from intensive operation cycles.
!
Rear Bearing Damage
Powerful engine output causes premature wear and failure of rear transmission bearings.
!
Accumulator Jar Valve Body
Accumulator jar in valve body has rubbing shafts with Teflon rings causing pressure loss.
?
Transmission Line Pressure Loss
Pressure loss in valve body due to worn Teflon rings on accumulator shafts affecting shift quality.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

This family of 5-speed automatic transmissions Honda includes several sub-groups. A typical order for reassembly of 5-speed automatic transmission in old cars includes the following:

  • - Repair kit of gaskets and seals
  • -Kit of friction components
  • - Filter
  • - Electrical parts and Low block

Spare parts for the 5-speed automatic transmission designed by Honda should be selected according to the VIN-code.

Technical issues and repair guidelines

In many cases, the Low Hub one-way clutch gets out of order because of overloadings. It gets wedged and the sun gear breaks. High torque from 3-liter engine damages the rear drum of the 3-rd package (3rd Drum). The spring breaks, that causes damage to the entire unit. Specialists also replace piston, a thin spring holder, retaining ring. In addition a powerful engine damages rear bearings.EPC line pressure solenoids (which operate very intensively) get out of order because of ageing and overheating. Another soft spot of the valve body is the jar of accumulators, rubbing shafts with teflon rings that leads to the pressure loss.
