Ford ATX Transmission

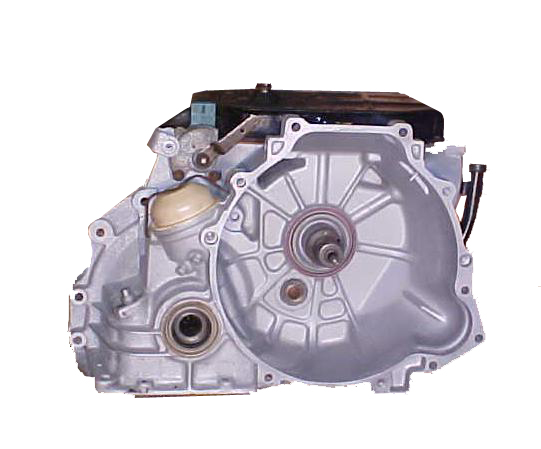

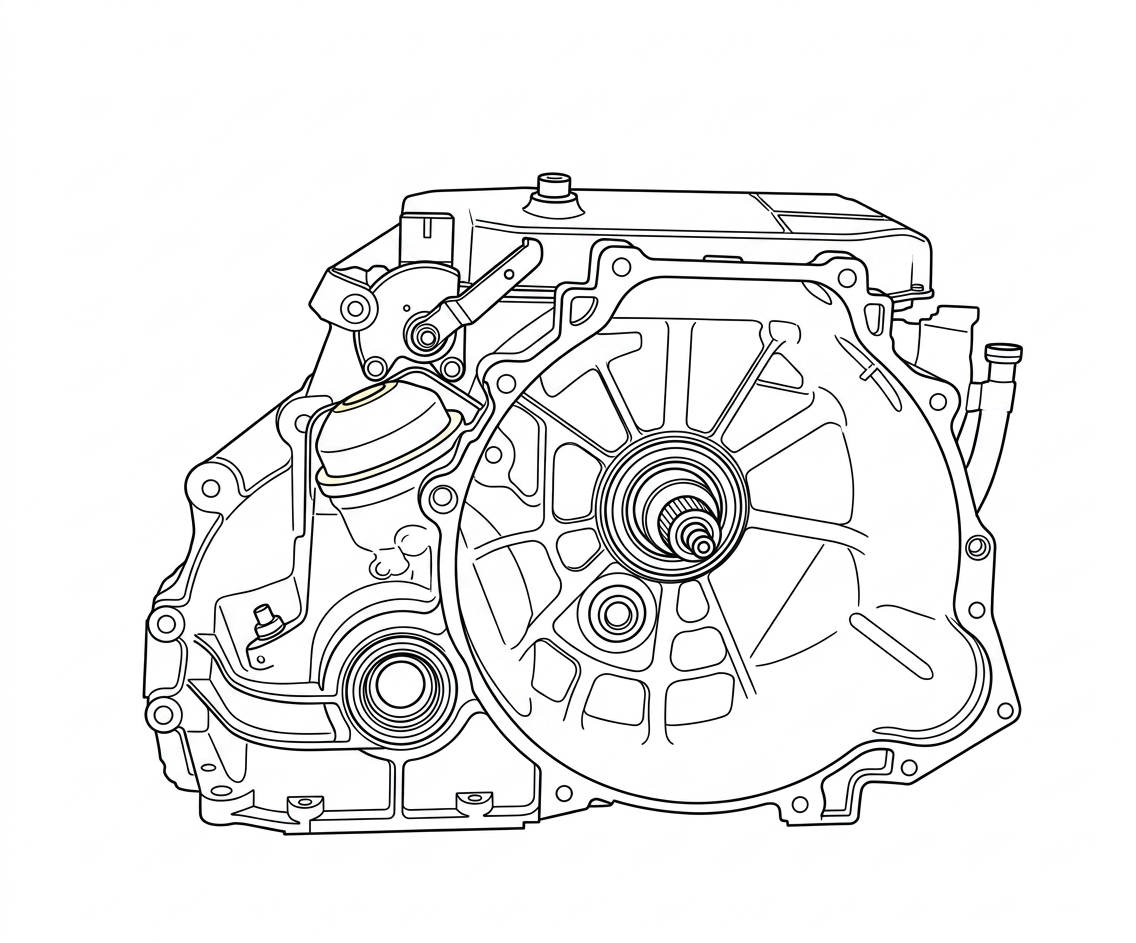

ATX is a 3-speed automatic transmission manufactured by Ford within the period from 1981 until 1994. It was Ford's 1-st automatic gearbox designed for FWD and cross-mounted engine. The structural design of this transmission is not complicated, but very reliable. This gearbox has a lockup torque converter, but no overdrive gear.

Speeds 3
Type AT
Drive FWD
ATF capacity (L) 5,6
ATF change (L) 3,2
ATF type Type H ATF /Dexron III/Mercon ATF
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
ATX
4.2/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence3.5
Documentation depth5.0
Knowledge & support2.5

Exploded diagram & parts

Full ATX parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

179 179 · No. 1 183 183 · No. 2 311 311 · No. 3 530 530 · No. 4 035 035 · No. 5 530 530 · No. 6 543 543 · No. 7 520 520 · No. 8 036 036 · No. 9 310 310 · No. 10 210 210 · No. 11 211 211 · No. 12 880 880 · No. 13 552 552 · No. 14 332 332 · No. 15 333 333 · No. 16 962 962 · No. 17 972 972 · No. 18 874 874 · No. 19 852 852 · No. 20 124/104 124, 104 · No. 21 144 144 · No. 22 873* 873* · No. 23 226 226 · No. 24 674 674 · No. 25 777 777 · No. 26 778 778 · No. 27 671 671 · No. 28 046 046 · No. 29 673/555 673, 555 · No. 30 046B 046B · No. 31 336 336 · No. 32 337 337 · No. 33 965 965 · No. 34 975 975 · No. 35 879 879 · No. 36 858 858 · No. 37 126/106 126, 106 · No. 38 146 146 · No. 39 878* 878* · No. 40 892 892 · No. 41 150 150 · No. 42 130/104 130, 104 · No. 43 854 854 · No. 44 976 976 · No. 45 966 966 · No. 46 339 339 · No. 47 956 956 · No. 48 338 338 · No. 49 339 339 · No. 50 229 229 · No. 51 652 652 · No. 52 232 232 · No. 53 614 614 · No. 54 052 052 · No. 55 060 060 · No. 56 594 594 · No. 57 254 254 · No. 58 584 584 · No. 59 058 058 · No. 60 251 251 · No. 61 557 557 · No. 62 022 022 · No. 63 257 257 · No. 64 494 494 · No. 65 493 493 · No. 66 789 789 · No. 67 302/767 302, 767 · No. 68 906/907 906, 907 · No. 69 909 +5 909, 361B, 362, 896, 361A, 908-5 · No. 70 996 996 · No. 71 371 371 · No. 72 908 +2 908, 906, 906-1 · No. 73 064 064 · No. 74 735 735 · No. 75 279 279 · No. 76 268 268 · No. 77 710 710 · No. 78 271 271 · No. 79 272 272 · No. 80 072 072 · No. 81 992 992 · No. 82 073 073 · No. 83 410 410 · No. 84 997 997 · No. 85 321 +4 321, 747, 320, 760, 740 · No. 86 529 529 · No. 87 032 032 · No. 88 070 070 · No. 89 031 031 · No. 90 679 679 · No. 91 374 374 · No. 92 283 283 · No. 93 282 282 · No. 94 284* 284* · No. 95 714 714 · No. 96 282 282 · No. 97 283 283 · No. 98 799 799 · No. 99 774 774 · No. 100 369 369 · No. 101 687 687 · No. 102 103 103 · No. 103 104 104 · No. 104 105 105 · No. 105 106 106 · No. 106 848 848 · No. 107 345/686 345, 686 · No. 108 076 076 · No. 109 725 725 · No. 110 290 290 · No. 111 387 387 · No. 112 303 303 · No. 113 289 289 · No. 114 716 716 · No. 115 683 683 · No. 116 290 290 · No. 117 289 289 · No. 118 119 119 · No. 119 379 379 · No. 120 680 680 · No. 121 122 122 · No. 122 123 123 · No. 123 010 010 · No. 124 765/300 765, 300 · No. 125 684 684 · No. 126

Parts categories

View all parts →
Sell ATX parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

22 applications · 3 makes · 1981–1994 Ford 13 · Mercury 8 · Volkswagen 1

Make Model Year Drive Engine
Ford Escort 1981-1990 L4 1.6, 1.9, 2.0L
Ford Escort 1981-1990 1.6, 1.9, 2.0
Ford Escort UK 1982-1989 3 Spd FWD 1.6L
Ford EXP 1982-1988 L4 1.6, 1.9L
Ford EXP 1982-1988 1.6, 1.9
Ford Taurus 1986-1991 L4, V6 2.5L
Ford Taurus 1986-1991 2.5
Ford Taurus - 1986-1990 3 Spd FWD 4 cyl
Ford Tempo 1992-1994 L4, V6 2.3, 3.0L
Ford Tempo 1992-1994 2.3, 3.0
Ford Tempo 1990-1994 3 Spd FWD L4 2.3L
Ford Tempo 1985-1991 L4 2.0, 2.3L
Ford Tempo 1985-1991 2.0, 2.3
Mercury LN-7 1982-1983 L4 1.6L
Mercury LN-7 1982-1983 1.6
Mercury Lynx 1981-1987 L4 1.6,1.9,2.0L
Mercury Lynx 1981-1987 1.6, 1.9, 2.0
Mercury Topaz 1992-1994 L4, V6 2.3,3.0L
Mercury Topaz 1992-1994 2.3, 3.0
Mercury Topaz 1984-1991 L4 2.0,2.3L
Mercury Topaz 1984-1991 2.0, 2.3
Volkswagen Orion 1600 3 Spd FWD 1.3L, 1.6L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

FLC
ATX
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Plastic gear wear degradation
Internal plastic gears wear out causing shift issues; replaceable without full transmission removal or disassembly.
?
Gear shifting issues cold engine
Transmission exhibits gear shifting problems when engine has not reached normal operating temperature.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

ATX is a 3-speed automatic transmission manufactured by Ford within the period from 1981 until 1994. It was Ford's 1-st automatic gearbox designed for FWD and cross-mounted engine. The structural design of this transmission is not complicated, but very reliable. This gearbox has a lockup torque converter, but no overdrive gear.

Technical issues and repair guidelines

ATX was mainly installed in Ford Taurus and Ford Escort models. This fully hydraulic transmission is rarely met in repair services. However, owners of ATX may have problems with gear shifting if the engine is not warmed up. But transmission repair specialists say that the reason of this issue lies in wear-out of plastic gears, which can be replaced without dismounting and disassembly of the transmission.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
1989 Ford Escort ATX Transmission Fluid Change
Hank's Garage
