Toyota AA80E Transmission

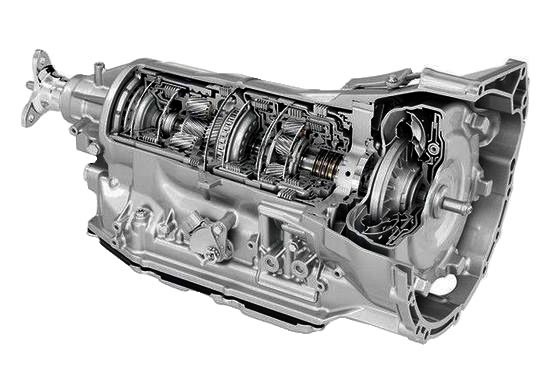

The 8-speed automatic gearbox AA80E (TL-80SN for Lexus) produced by Aisin Co has been installed since 2007 on RWD Lexus LS460 (IS, GS460) and Toyota Land Cruiser and Crown Majesta with engines V8 from 4.6 up to 5.0 liters. The modification AA80F is used for AWD LS460. The maximum torque is up to 550 Nm. In terms of design, this transmission is related to TR-80SD (0C8).

Speeds 8
Type AT
Drive RWD/AWD
Max torque 550
ATF capacity (L) 11,3
ATF change (L) 3,7
ATF type Toyota WS
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
AA80E
5.9/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence4.6
Documentation depth10.0
Knowledge & support2.5

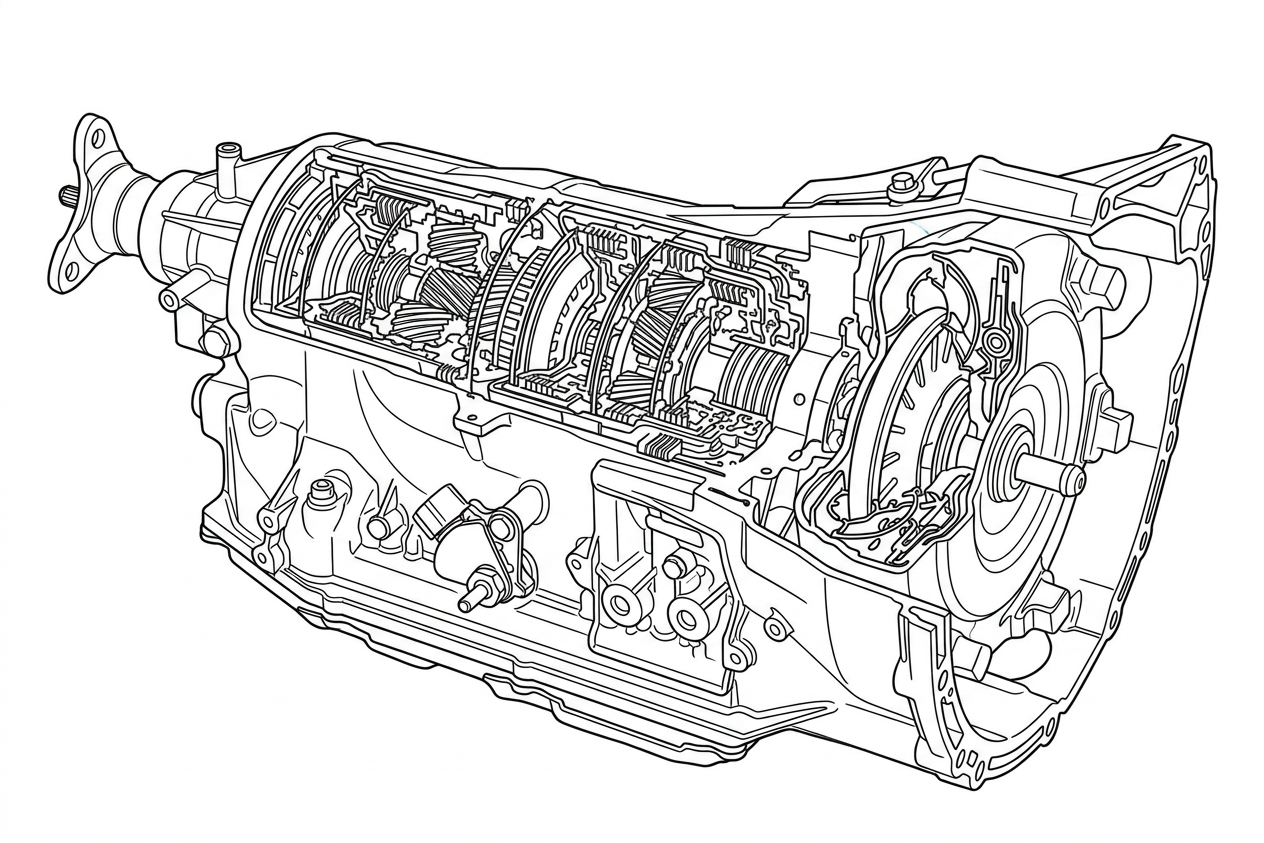

Exploded diagram & parts

Full AA80E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.
