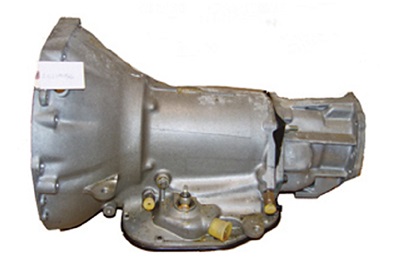

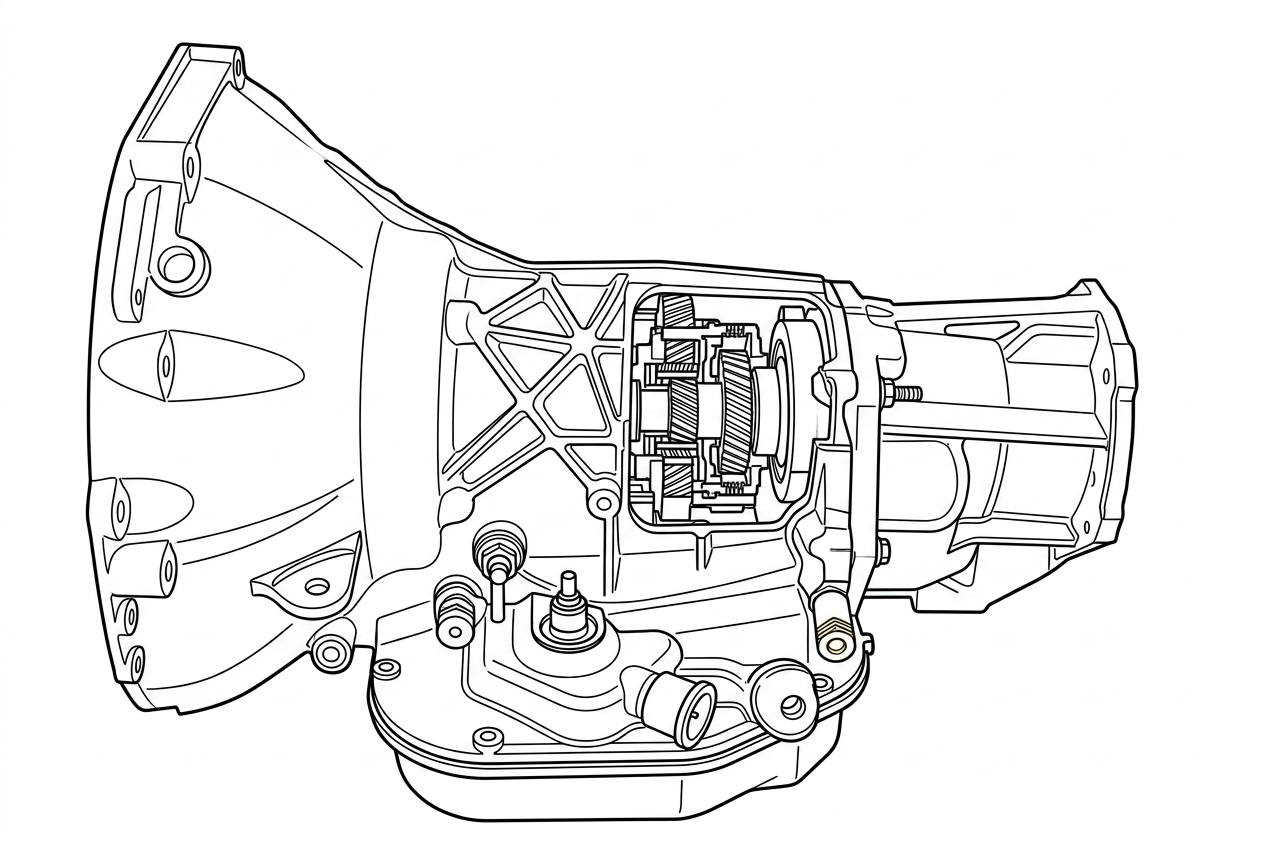

Chrysler 32RH (A999) Transmission
The 3-speed automatic transmission A999 (also referred 32 RH) was produced by Chrysler. This transmission is very similar to the A904 transmission. It is equipped with 5 direct friction discs. Both automatic transmissions A999 as well as A904 have lower 1-st and 2-nd gear ratios, which help low-capacity engines to ensure better acceleration without any losses to highway fuel efficiency.
Speeds
3
Type
AT
Drive
RWD
ATF capacity (L)
8,5
ATF type
Mopar ATF+3
ATF change (L)
4.7
Browse parts → Find transmission shops
Report a mistake on this page
Contribute info
This feature is in progress and will be available soon.
6.0/10
Support & Market Presence Index
Well covered
How widely this transmission is used, documented and supported across the Go4Trans graph.
Market presence9.8
Documentation depth0.0
Knowledge & support4.0
Exploded diagram & parts
Parts categories
Marketplace products
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 32RH in the Go4Trans marketplace.
Torque Converter A999 (32RH) — 11" — FTC 12-10XX
$268.20
Torque Converter A904 (30RH) / A998 / A999 (32RH) — 11", Non-Lockup — FTC 12-877
$268.20
Torque Converter A999 (32RH) — 11", Lockup — FTC 12-10
$214.20
Torque Converter A500 (42RE) / A999 (32RH) / 40RH / 42RH & more — 11", Lockup — FTC 12-22A
$214.20
Torque Converter A500 (42RE) / A904 (30RH) / A999 (32RH) / 40RH & more — 11", Lockup — FTC 12-21
$214.20
Torque Converter A500 (42RE) / A999 (32RH) / 40RH / 42RH & more — 11", Lockup — FTC 12-21A
$214.20
Sell 32RH parts on Go4TransStart selling →
Vehicle fitment explorer
Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.
157 applications · 5 makes · 1960–2003 Dodge 88 · Plymouth 35 · Jeep 26 · Chrysler 7 · Eagle 1
| Make | Model | Year | Drive | Engine |
|---|---|---|---|---|
| Chrysler | Cordoba | 1975-1983 | L6, V8 3.7, 5.2, 5.9, 6.6L | |
| Chrysler | Fifth Avenue | 1983-1989 | L6, V8 3.7, 5.2L | |
| Chrysler | Imperial | 1981-1983 | V8 7.2L | |
| Chrysler | Lebaron | 1978-1981 | L6 3.7L | |
| Chrysler | New Yorker | 1982 | L6 3.7L | |
| Chrysler | Newport | 1979-1981 | L6 3.7L | |
| Chrysler | VAN/WAGON 1500-2500 | 1995-2003 | 3 Spd RWD | V6 3.9L |
| Dodge | 330 | 1963-1964 | L6 3.7L | |
| Dodge | 440 | 1963-1964 | L6 3.7L | |
| Dodge | Aspen | 1976-1980 | L6, V8 3.7, 5.2, 5.9L | |
| Dodge | B100 | 1971-1980 | L6 3.2, 3.7(1/2 Ton - Van)L | |
| Dodge | B150 | 1981-1989 | L6 3.7. 3.9(1/2 Ton - Van)L | |
| Dodge | B200 | 1972-1979 | L6 3.7L | |
| Dodge | B200 | 1971 | L6 3.2, 3.7L | |
| Dodge | B250 | 1981-1992 | L6, V6 3.7, 3.9(3/4 Ton - Van)L | |
| Dodge | B300 | 1972-1979 | L6 3.7, 4.0L | |
| Dodge | B300 | 1971 | L6 3.2. 3.7L | |
| Dodge | B350 | 1990-1991 | V6 3.9(1 Ton - Van)L | |
| Dodge | C600 | 1971-1973 | L6 4.1L | |
| Dodge | C700 | 1971-1973 | L6 4.1L | |
| Dodge | Challenger | 1972 | L6 3.7L | |
| Dodge | Challenger | 1970-1971 | L6 3.2, 3.7L | |
| Dodge | Charger | 1972-1976 | L6 3.7L | |
| Dodge | Charger | 1969-1971 | L6 3.7L | |
| Dodge | Coronet | 1972-1976 | L6 3.7L | |
| Dodge | Coronet | 1966-1971 | L6 3.7L | |
| Dodge | Coronet | 1965 | L6 3.7L | |
| Dodge | CT700 | 1971-1973 | L6 4.1L | |
| Dodge | D100 | 1972-1989 | L6, V6 3.7, 3.9, 4.0L | |
| Dodge | D100 | 1966-1971 | L6 3.2, 3.7L | |
| Dodge | D100 | 1960-1965 | L6 3.7, 3.8L | |
| Dodge | D150 | 1974-1989 | L6, V6 3.7, 3.9, 4.0L | |
| Dodge | D200 | 1972-1980 | L6 3.7, 4.0L | |
| Dodge | D200 | 1966-1971 | L6 3.2, 3.7L | |
| Dodge | D200 | 1960-1965 | L6 3.2, 3.7, 3.8L | |
| Dodge | D250 | 1981-1991 | L6, V6 3.7, 3.9L | |
| Dodge | D300 | 1972-1978 | L6 3.7L | |
| Dodge | D300 | 1966-1971 | L6 3.2, 3.7L | |
| Dodge | D300 | 1961-1965 | L6 3.2, 3.7L | |
| Dodge | D400 | 1971 | L6 3.7L | |
| Dodge | D500 | 1971 | L6 3.7L | |
| Dodge | Dart | 1972-1976 | L6 3.2, 37L | |
| Dodge | Dart | 1966-1971 | L6 2.8, 3.2, 3.7L | |
| Dodge | Dart | 1960-1965 | L6 2.8, 3.7L | |
| Dodge | Diplomat | 1978-1983 | L6 3.7L | |
| Dodge | L700 | 1971 | L6 4.1, 5.8L | |
| Dodge | Lancer | 1961-1962 | L6 2.8, 3.7L | |
| Dodge | M400 | 1972-1977 | L6 3.9, 4.1, 5.8L | |
| Dodge | M400 | 1971 | L4, L6 3.9, 4.1, 5.8L | |
| Dodge | M500 | 1975-1977 | L4, L6 3.9, 4.1, 5.8L | |
| Dodge | M600 | 1974-1980 | L4, L6 3.9, 4.1, 5.8L | |
| Dodge | Magnum | 1978-1979 | V8 5.2L | |
| Dodge | MB400 | 1974-1980 | L4, L6 3.9, 4.1, 5.8L | |
| Dodge | Mirada | 1980-1983 | L6, V8 3.7, 5.2L | |
| Dodge | Monaco | 1977-1978 | L6 3.7L | |
| Dodge | P100- Step Van | 1962-1964 | L6 3.7L | |
| Dodge | P200 - Step Van | 1967-1971 | L6 3.7L | |
| Dodge | P200 - Step Van | 1961-1964 | L6 2.8, 3.7L | |
| Dodge | P300 - Step Van | 1966-1971 | L6 3.7L | |
| Dodge | P300 - Step Van | 1961-1964 | L6 3.7L | |
| Dodge | P400 | 1972-1973 | L6 2.8, 3.2, 4.1, 5.4L | |
| Dodge | P400 | 1971 | L6 2.8, 3.2. 4.1, 5.4L | |
| Dodge | Polara | 1970-1971 | L6 3.7L | |
| Dodge | Polara | 1963-1964 | L6 3.7L | |
| Dodge | R400 | 1972-1980 | L4, L6 3.9, 4.1, 5.8,L | |
| Dodge | Raider | 1987-1989 | L4, V6 2.6, 3.0L | |
| Dodge | Ram 50 | 1979-1987 | L4 2.0, 2.3, 2.6L | |
| Dodge | Ramcharger | 1976-1979 | L6 3.7 (AD100)L | |
| Dodge | Ramcharger | 1974-1980 | L6 3.7 (AW100 4WD)L | |
| Dodge | Rampage | 1982-1984 | L4 2.2L | |
| Dodge | RM400 | 1972-1980 | L6 4.1L | |
| Dodge | Royal Monaco | 1975-1977 | V8 5.2, 5.9, 6.6, 7.2L | |
| Dodge | S500 | 1972 | L6 4.1, 5.4L | |
| Dodge | S500 | 1971 | L6 4.1, 5.4L | |
| Dodge | S550 | 1972-1973 | L6 4.1, 5.4L | |
| Dodge | S600 | 1972-1980 | L6 4.1, 5.4L | |
| Dodge | S600 | 1971 | L6 4.1, 5.4L | |
| Dodge | St. Regis | 1979-1981 | L6 3.7L | |
| Dodge | VAN/WAGON 1500-2500 | 1995-2003 | 3 Spd RWD | V6 3.9L |
| Dodge | Van/Wagon 1500-2500 | 1981-2003 | 3 Spd RWD | V6 3.9L |
| Dodge | W100 4WD | 1972-1989 | L6, V6 3.7L | |
| Dodge | W100 4WD | 1966-1971 | L6 3.7L | |
| Dodge | W100 4WD | 1960-1965 | L6 3.7, 3.8L | |
| Dodge | W150 4WD | 1974-1989 | L6, V6 3.7L | |
| Dodge | W200 4WD | 1972-1980 | L6 3.7L | |
| Dodge | W200 4WD | 1966-1971 | L6 3.7L | |
| Dodge | W200 4WD | 1960-1965 | L6 3.7, 3.8L | |
| Dodge | W300 4WD | 1972-1978 | L6 3.7L | |
| Dodge | W300 4WD | 1966-1971 | L6 3.7L | |
| Dodge | W300 4WD | 1960-1965 | L6 2.8, 3.7, 3.8, 4.2L | |
| Dodge | W600 | 1972-1980 | L4, L6 3.9, 4.1, 5.8L | |
| Dodge | WM300 - Power Wagon | 1966-1968 | L6 4.2L | |
| Dodge | WM300 - Power Wagon | 1960-1965 | L6 3.8, 4.2L | |
| Dodge Truck | A100 1/2 Ton - Van | 1966-1970 | L6 2.8, 3.2, 3.7L | |
| Dodge Truck | A100 1/2 Ton - Van | 1964-1965 | L6 2.8, 3.7L | |
| Eagle | VAN/WAGON 1500-2500 | 1995-2003 | 3 Spd RWD | V6 3.9L |
| Jeep | Cherokee | 1974-1998 | L4, L6, V8 2.1, 2.5, 2.8, 3.7, 3.8, 4.0, 4.2, 5.0, 5.9, 6.6L | |
| Jeep | CJ5 | 1972-1983 | L4, L6, V6, V8 3.7, 2.2, 3.8, 4.2, 5.0, 2.5L | |
| Jeep | CJ5 | 1969-1971 | L4, L6, V6, V8 3.7, 2.2, 3.8, 4.2, 5.0, 2.5L | |
| Jeep | CJ6 | 1972-1975 | L6,V6 2.2, 3.7, 3.8, 4.2, 5.0L | |
| Jeep | CJ6 | 1969-1971 | L4, L6, V6, V8 3.7, 2.2, 3.8, 4.2, 5.0, 2.5L | |
| Jeep | CJ7 | 1980-1986 | L4, L6 2.5, 4.2L | |
| Jeep | CJ7 | 1976-1979 | L6, V8 3.8, 4.2, 5.0L | |
| Jeep | DJ5 | 1972-1974 | L4, L6, V6 2.2, 3.8, 3.7L | |
| Jeep | DJ5 | 1971 | L4 2.2L | |
| Jeep | DJ6 | 1971 | L4 2.2L | |
| Jeep | Gladiator ALL | 1972-1973 | L6, V8 4.2, 5.0, 5.9L | |
| Jeep | Gladiator ALL | 1972-1973 | L6, V8 4.2, 5.0, 5.7, 5.9L | |
| Jeep | Gladiator ALL | 1972-1973 | L6, V8 3.8, 4.2, 5.0, 5.7, 5.9L | |
| Jeep | Gladiator ALL | 1971 | L6, V8 3.8, 4.2, 5.0, 5.7, 5.9L | |
| Jeep | Gladiator ALL | 1966-1971 | L6, V6 3.8, 4.2, 5.0, 5.4, 5.7, 5.9L | |
| Jeep | Gladiator ALL | 1962-1965 | L6, V8 3.8, 5.4, 5.7, 4.2 5.0, 5.9L | |
| Jeep | Grand Wagoneer | 1985-1986 | L6 4.2L | |
| Jeep | Grand Wagoneer | 1972 | 3 Spd RWD/4X4 | 6 cylinder |
| Jeep | J10 - Pickup | 1980-1988 | L6 4.2L | |
| Jeep | J20 - Pickup | 1974-1988 | L6, V8 4.2, 5.9, 6.6L | |
| Jeep | Jeepster | 1972-1973 | L4, L6, V8 2.2, 3.8, 4.2, 5.0L | |
| Jeep | Jeepster | 1971 | L4, L6, V8 2.2, 3.2, 4.2, 5.0L | |
| Jeep | Scrambler | 1981-1985 | L4, L6 2.5, 4.2L | |
| Jeep | Wagoneer | 1972-1990 | L4, L6, V6, V8 2.1, 3.8, 4.2, 5.0L | |
| Jeep | Wrangler | 1995-2002 | 3 Spd RWD/4X4 | L6 4.0L |
| Jeep | Wrangler | 1987-2002 | L4, L6 2.5, 4.2, 4.0L | |
| Plymouth | Arrow | 1976-1980 | L4 1.6,2.0,2.6L | |
| Plymouth | Barracuda | 1972-1974 | V8 3.7,5.2,5.6,5.9L | |
| Plymouth | Barracuda | 1967-1971 | L6 3.2.3.7L | |
| Plymouth | Belvedere | 1967-1970 | L6 3.7L | |
| Plymouth | Belvedere | 1966-1967 | L6 3.7L | |
| Plymouth | Belvedere | 1965 | L6 3.7L | |
| Plymouth | Belvedere | 1960-1964 | L6, V8 3.6, 3.7, 3.8, 4.0, 4.2, 4.4, 4.5, 4.9L | |
| Plymouth | Caravelle | 1979-1982 | L6 3.7L | |
| Plymouth | Fury | 1972-1978 | L6 3.7L | |
| Plymouth | Fury | 1971 | L6 3.7L | |
| Plymouth | Fury | 1971 | L6 3.7 ( Custom)L | |
| Plymouth | Fury | 1960-1964 | L6, V8 3.7, 5.2L | |
| Plymouth | Fury I | 1966-1971 | L6 3.7L | |
| Plymouth | Fury I | 1965 | L6 3.7L | |
| Plymouth | Fury II | 1966-1971 | L6 3.7L | |
| Plymouth | Fury II | 1965 | L6 3.7L | |
| Plymouth | Fury III | 1966-1971 | L6 3.7L | |
| Plymouth | Fury III | 1965 | L6 3.7L | |
| Plymouth | Satellite | 1972-1974 | L6 3.7L | |
| Plymouth | Satellite | 1968-1971 | L6 3.7L | |
| Plymouth | Savoy | 1960-1964 | L6 3.7L | |
| Plymouth | Scamp | 1972-1976 | L6 3.2,3.7L | |
| Plymouth | Scamp | 1971 | L6 3.2,3.7L | |
| Plymouth | Trail Duster | 1974-1980 | L6 3.7L | |
| Plymouth | Valiant | 1972-1976 | L6 3.2,3.7L | |
| Plymouth | Valiant | 1966-1971 | L6 2.8.3.2,3.7L | |
| Plymouth | Valiant | 1960-1965 | L6 2.8,3.7L | |
| Plymouth | Valiant Duster | 1970 | L6 3.2,3.7L | |
| Plymouth | VAN/WAGON 1500-2500 | 1995-2003 | 3 Spd RWD | V6 3.9L |
| Plymouth | Volare | 1976-1980 | L6 3.7L | |
| Plymouth | Voyager | 1981-1983 | L6 3.7 ( PB150 - Van)L | |
| Plymouth | Voyager | 1981-1983 | L6 3.7 ( PB250 - Van)L | |
| Plymouth | Voyager | 1974-1980 | L6 3.7 ( PB100 - Van)L | |
| Plymouth | Voyager | 1974-1980 | L6 3.7 ( PB200 - Van)L | |
| Plymouth | Voyager | 1974-1979 | L6 3.7 ( PB300- Van)L |
Other and alternative codes of this transmission
+ Contribute
This feature is in progress and will be available soon.
32RH
32 RH
A999
verified naming
OEM designation
source name
Common problems & symptoms
Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.
?
Shift slippage into 1st-3rd gears
Owner reported progressively worsening hard shifts into 1st gear and difficulty holding 2nd-to-3rd gear under acceleration, eventually affecting all forward gears.
?
Erratic governor pressure
Governor pressure does not rise smoothly with road speed but swings wildly during a road test, producing inconsistent shift points.
!
TCC circuit malfunction (P0740)
A torque converter clutch circuit fault sets diagnostic code P0740 and is accompanied by incorrect shifting into 1st and 3rd gear.
?
Jumps in/out of gear at a stop
While stopped in Drive, the transmission intermittently shifts out of and back into gear, producing an unexpected forward lurch.
!
Front (kickdown) band wear/mis-adjustment
Neglected front/kickdown band adjustment on these Torqueflite-based units can progress to slippage and poor shift performance, and if ignored can require a full rebuild.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom
This feature is in progress and will be available soon.
About this transmission
Transmission general data
The
3-speed automatic transmission A999 (also referred 32 RH) was produced by
Chrysler. This transmission is very similar to the A904 transmission. It is
equipped with 5 direct friction discs. Both automatic transmissions A999 as
well as A904 have lower 1-st and 2-nd gear ratios, which help low-capacity
engines to ensure better acceleration without any losses to highway fuel
efficiency.
The A999 transmission is commonly applied in XJ or YJ models with the engine capacity of 4 liters. The main difference between A999 and A904 consists in the rear band, which holds the planetary gear carrier: the band used in the 32RH transmission is more efficient. This gearbox is considered to be quite reliable, so it commonly outlives other stock components.
Sources & Contribution
+ Contribute
This feature is in progress and will be available soon.
Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.
Contribute transmission data
Go4Trans grows as a community knowledge graph. Help make the 32RH record more complete — every submission is reviewed before publication.
Contribute data
This feature is in progress and will be available soon.
Report a mistake on this page
This feature is in progress and will be available soon.
✓ Reviewed by our editorial team before going live
✓ Accepted contributions are credited in the Sources list
📋
Alias or code variant
🔩
Part number & fitment
🚗
Vehicle application
🏪
Repair shop listing
📖
Technical article
⚠
Problem report
