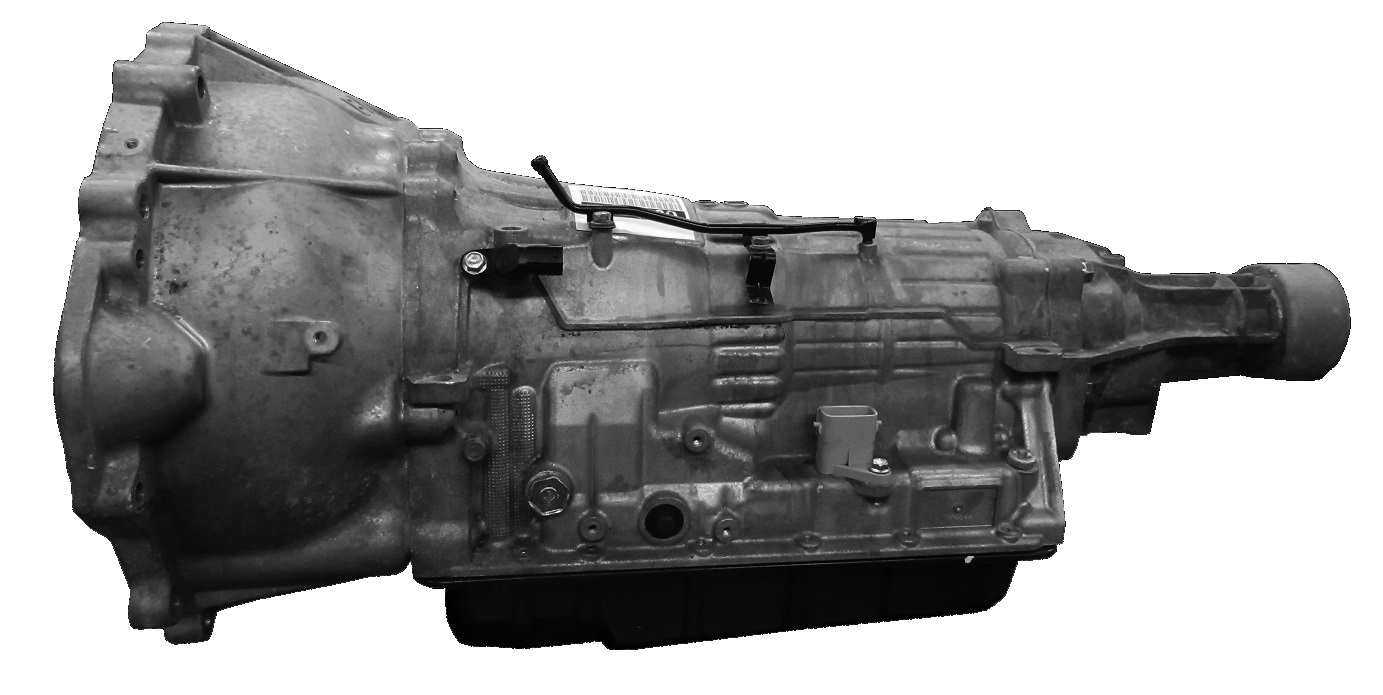

Toyota A960E Transmission

The 6-speed automatic transmission A960E with longitudinal positioning was designed in 2005 by Aisin Co for rear-driven Lexus cars (sedans GS300, IS250 and IS300) with 2.5-3 liters. It also operates on right-hand Toyota MARK X. This transmission is developed on the principle of modules on the basis of the 5-speed A750 transmission together with 6-speed A761, but intended for a lower torque (190-300 Nm). The main competitor of this transmission is ZF6HP19-21. According to Aisin Co classification, this transmission for Lexus can be named TB-65SN.

Speeds 6
Type AT
Drive RWD
Max torque 314
ATF capacity (L) 8,5
ATF change (L) 4,1
ATF type Toyota WS
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page

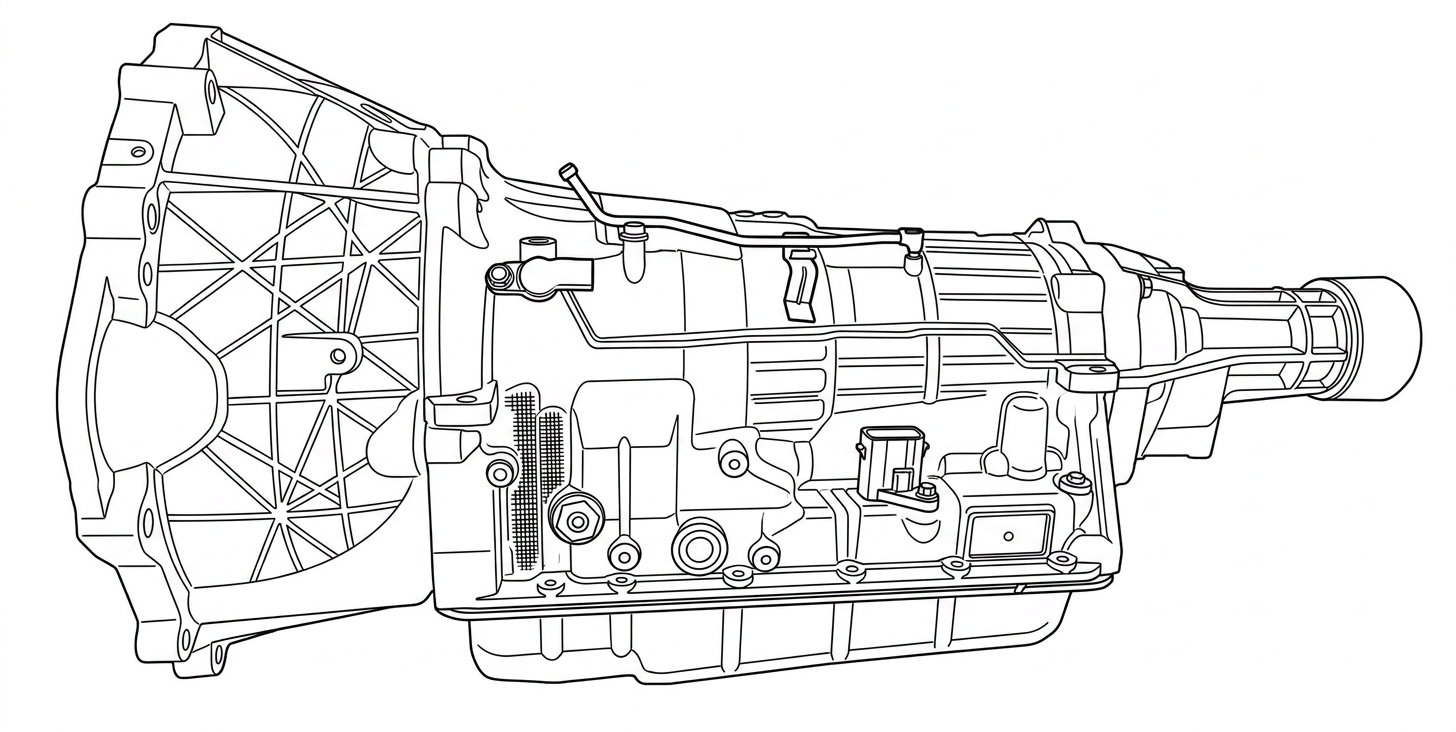

A960E
5.7/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence3.2
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full A960E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

776 776 · No. 1 179 179 · No. 2 750 750 · No. 3 070 070 · No. 4 034 034 · No. 5 6 6 · No. 6 530 530 · No. 7 530 530 · No. 8 036 036 · No. 9 520 520 · No. 10 310 310 · No. 11 210/211 210, 211 · No. 12 893 893 · No. 13 957 957 · No. 14 976 976 · No. 15 339-1/966 339-1, 966 · No. 16 339 339 · No. 17 219 219 · No. 18 338/555 338, 555 · No. 19 336/337 336, 337 · No. 20 965 965 · No. 21 985 +2 985, 337, 975 · No. 22 879 879 · No. 23 126/106 126, 106 · No. 24 146* 146* · No. 25 878 878 · No. 26 228 228 · No. 27 229 229 · No. 28 554 554 · No. 29 048 048 · No. 30 559 559 · No. 31 777 777 · No. 32 778 778 · No. 33 964 964 · No. 34 974 974 · No. 35 335-1/984 335-1, 984 · No. 36 877 877 · No. 37 122/102 122, 102 · No. 38 142 142 · No. 39 129 129 · No. 40 128/108 128, 108 · No. 41 148 148 · No. 42 876* 876* · No. 43 233 233 · No. 44 232 232 · No. 45 571 571 · No. 46 283 283 · No. 47 886 886 · No. 48 650-1 +2 650-1, 650, 661 · No. 49 886 886 · No. 50 234 234 · No. 51 235 235 · No. 52 235-1 235-1 · No. 53 051 051 · No. 54 575 575 · No. 55 56 56 · No. 56 57 57 · No. 57 052 052 · No. 58 576 576 · No. 59 052-1 052-1 · No. 60 150* 150* · No. 61 130/110 130, 110 · No. 62 151 151 · No. 63 854 854 · No. 64 549/891 549, 891 · No. 65 245 245 · No. 66 285 285 · No. 67 652-1 +2 652-1, 652, 663 · No. 68 285 285 · No. 69 247 247 · No. 70 872*/144* 872*, 144* · No. 71 124/104 124, 104 · No. 72 883 883 · No. 73 874 874 · No. 74 972 972 · No. 75 962 962 · No. 76 332/333 332, 333 · No. 77 632 632 · No. 78 887 887 · No. 79 80 80 · No. 80 665 665 · No. 81 887 887 · No. 82 249 249 · No. 83 579 579 · No. 84 053 053 · No. 85 582 582 · No. 86 438 438 · No. 87 370 370 · No. 88 493 493 · No. 89 846C 846C · No. 90 496 496 · No. 91 846B 846B · No. 92 262 262 · No. 93 490/760 490, 760 · No. 94 897 897 · No. 95 271 271 · No. 96 066 066 · No. 97 698 698 · No. 98 770 770 · No. 99 074 074 · No. 100 074-1 074-1 · No. 101 846A 846A · No. 102 238 238 · No. 103 240 240 · No. 104 241 241 · No. 105 592 592 · No. 106 866 866 · No. 107 602 602 · No. 108 050 050 · No. 109 590 590 · No. 110 868 868 · No. 111 216/215 216, 215 · No. 112 580 580 · No. 113 610 610 · No. 114 112/132 112, 132 · No. 115 969 969 · No. 116 341 +2 341, 547, 340 · No. 117 861 861 · No. 118 140 140 · No. 119 120/100 120, 100 · No. 120 493-1 493-1 · No. 121 388-1 388-1 · No. 122 741-4 741-4 · No. 123 992 992 · No. 124 761-4 761-4 · No. 125 945 945 · No. 126 127 127 · No. 127 128 128 · No. 128 950 950 · No. 129 130 130 · No. 130 935 935 · No. 131 132 132 · No. 132 446 446 · No. 133 991-4 991-4 · No. 134 072 072 · No. 135 410 410 · No. 136 207 207 · No. 137 797-1 797-1 · No. 138 797 797 · No. 139 995-1 995-1 · No. 140 995-6 995-6 · No. 141 995-3 995-3 · No. 142 995-4 995-4 · No. 143 970 970 · No. 144 330/960 330, 960 · No. 145 545/331 545, 331 · No. 146 890 890 · No. 147 284 284 · No. 148 669 669 · No. 149 658-1 658-1 · No. 150 658 658 · No. 151 658-1 658-1 · No. 152 885 885 · No. 153 668 668 · No. 154 889 889 · No. 155 252 252 · No. 156 604 604 · No. 157 252 252 · No. 158 594 594 · No. 159 154* 154* · No. 160 134/114 134, 114 · No. 161 155 155 · No. 162 253 253 · No. 163 761C 761C · No. 164 925 925 · No. 165 166 166 · No. 166 167 167 · No. 167 168 168 · No. 168 169 169 · No. 169 072 072 · No. 170 171 171 · No. 171 991-8 991-8 · No. 172 991-5 991-5 · No. 173 994 994 · No. 174 638 638 · No. 175 176 176 · No. 176 177 177 · No. 177 178 178 · No. 178 927 927 · No. 179 428 428 · No. 180 453 453 · No. 181 421/426 421, 426 · No. 182 421 421 · No. 183 440 440 · No. 184 422 422 · No. 185 423 423 · No. 186 379 379 · No. 187 010 010 · No. 188 991-2 991-2 · No. 189 799 799 · No. 190 991-2 991-2 · No. 191 254 254 · No. 192 255 255 · No. 193 674 674 · No. 194 248 248 · No. 195 248-1 248-1 · No. 196 058 058 · No. 197 584 584 · No. 198 250 250 · No. 199 251 251 · No. 200 884 884 · No. 201 977 977 · No. 202 548 548 · No. 203 967 967 · No. 204 328-1/329 328-1, 329 · No. 205 329-1 329-1 · No. 206 967-1 967-1 · No. 207 328-2/329-2 328-2, 329-2 · No. 208 967-2 967-2 · No. 209 782 782 · No. 210 741M 741M · No. 211 740 740 · No. 212 450 450 · No. 213 425 425 · No. 214 300/765 300, 765 · No. 215 991-10/991-7 991-10, 991-7 · No. 216 217 217 · No. 217

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to A960E in the Go4Trans marketplace.
Sell A960E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

12 applications · 2 makes · 2004–2018 Lexus 9 · Toyota 3

Make Model Year Drive Engine
Lexus GS 2005-2012 6 Spd RWD V6 3.0L
Lexus GS300 2006-2008 6 Spd RWD V6 3.0L
Lexus GS300 2006-2008 3.0
Lexus GS300 2006 6 Spd RWD L6 3.0L
Lexus IS 2005-2012 6 Spd R/AWD V6 2.5L/3.0L
Lexus IS250 2006-2008 6 Spd RWD V6 2.5L
Lexus IS250 2006-2007 6 Spd RWD V6 2.5L
Lexus IS250/C 2006-2015 2.5
Lexus IS350/C 2006-2013 3.5
Toyota HILUX 2016-2018 6 Spd R/4WD L4 2.7L
Toyota HILUX/SW4 2015-2018 6 Spd RWD L4 2.7L
Toyota MARK X 2004-2014 6 Spd R/AWD V6 2.5L 3.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A960 E
A960E
A960 F
A960F
A960-E
A960-F
A960E/F
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Friction Wear
Single piston-glued friction wears rapidly in sports mode, releasing glue contaminants into fluid affecting valve body.
?
Torque Converter Lockup Loss
Worn piston friction causes lack of torque converter lockup, requiring timely diagnostics and parts replacement.
!
Oil Pump Seal Failure
Vibrations from worn lock-up friction damage pump seal and bushing; neglect leads to total pump loss.
!
Pump Bushing Damage
Leaking pump seal left unrepaired spreads damage to pump bushing, eventually destroying the pump unit.
!
Valve Body Fluid Contamination
Glue residue from burned piston friction contaminates fluid and causes immediate negative impact on valve body function.
!
Teflon Ring Wear Contamination
Contaminated ATF accelerates teflon ring wear; worn rings further contaminate transmission fluid in a cycle.
!
Lockup Solenoid Wear
Torque converter lockup solenoid frequently wears out alongside torque converter and pump damage.
!
Linear Solenoid Degradation
A960 rebuild requires linear solenoid replacement; solenoid selection must match vehicle VIN code.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 6-speed automatic transmission A960E with longitudinal positioning was designed in 2005 by Aisin Co for rear-driven Lexus cars (sedans GS300, IS250 and IS300) with 2.5-3 liters. It also operates on right-hand Toyota MARK X. This transmission is developed on the principle of modules on the basis of the 5-speed A750 transmission together with 6-speed A761, but intended for a lower torque (190-300 Nm). The main competitor of this transmission is ZF6HP19-21. According to Aisin Co classification, this transmission for Lexus can be named TB-65SN.

Technical issues and repair guidelines

Frequently used sports mode of this transmission quickly leads to the wear-out of the torque converter friction and fluid contamination. If the piston friction turns out to be worn-out, then some glue components reach the fluid, that makes some instant negative impact on the valve body functionality. Contrary to the 6HP19 unit with the torque converter having several double-sided frictions for the slippery mode, the A960E transmission has a single friction glued to the piston, that requires monitoring of the wear-out and when having any suspicions related to lack of the torque converter lockup, therefore well-timed diagnostics and spare parts replacement procedures should be implemented.

Typical overhaul of A960E requires replacement of the following parts:

- Kit of gaskets and seals, without pistons.

After burning of frictions they are all replaced with rubber seals. The contaminated fluid leads to wear-out of teflon rings. If these rings wear out, they start contaminating transmission fluid.

- Kit of frictions, which are replaced in most cases.

- Kit of steel discs which together with friction discs and repair kit of gaskets represents the complete repair kit (Masterkit).

Complete and timely replacement of spare parts in this durable transmission adds up to 70% of increased resource before the overhaul.

- The pan gasket is ordered each time when changing the ATF and removing the pan for the filter replacement.

The valve body repair with replacement of solenoids always implies the torque converter rebuilding. The torque converter spare parts are the first to exhaust their resource.One more problem that may be caused by vibrations from worn-out friction of the lock-up mechanism that damages the pump seal and bushing itself. The typical soft point of this transmission is the oil pump unit with leaking seal, and if it is neglected the problem spreads to the pump bushing. Further driving without timely repair of the torque converter leads to the loss of the pump itself. It is often accompanied by wear-out of the torque converter lockup solenoid.

Electrics in A960

The rebuilding of this old A960 unit includes the replacement of the linear solenoids. Selection of solenoids for the A960 unit is performed in accordance with VIN-code of the car. The peculiar feature of this reliable 6-speed automatic transmission is that the driver does not receive any noticeable signals related to the necessity to replace worn-out spare parts (the torque converter friction and solenoids which can not endure aggressive accelerations with the "slipping mode" of the torque converter clutch).

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
LEXUS IS 250 repair transmission A960E
gear box
manual
Sonnax — A760E/F/H, — A761E, A960E/F,
—
manual
Sonnax — Diagnosing Solenoid Performance Faults in A761, AB60 & A960 6-Speed Transmissions
—
