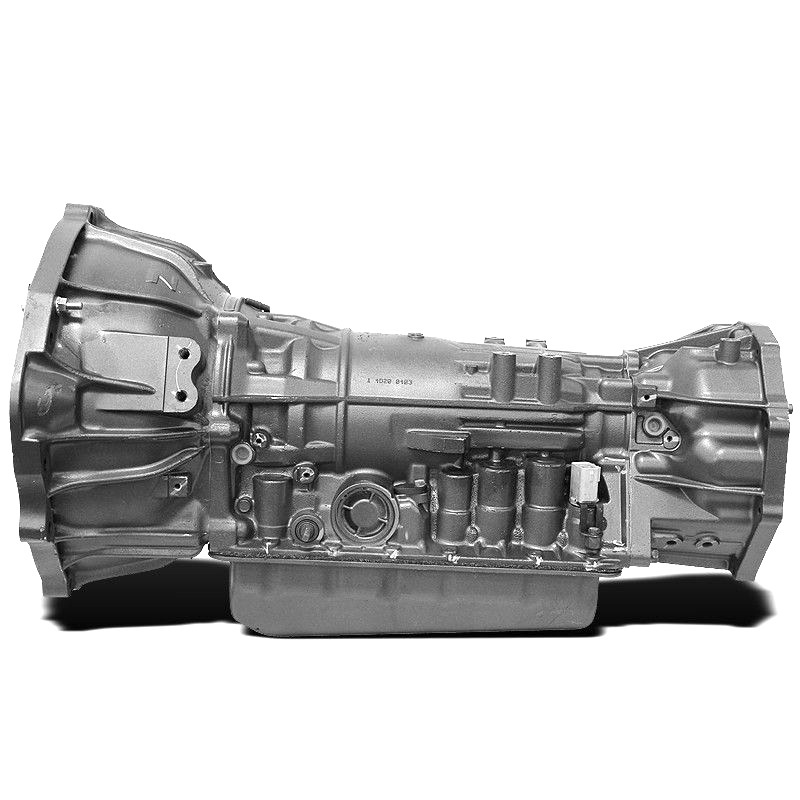

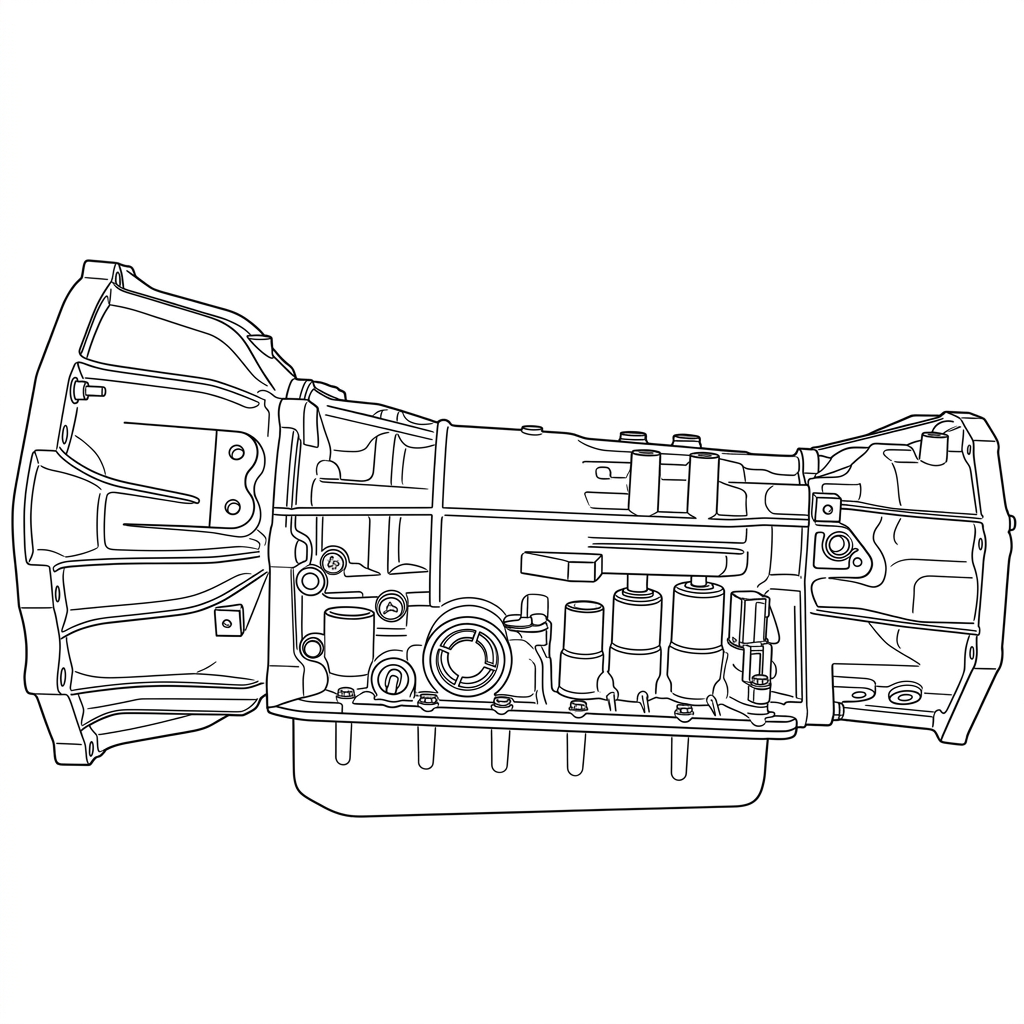

Aisin Warner / Toyota A650E Transmission

The 5-speed automatic transmission A650E with the langitudinal positioning has been installed since 1998 on RWD Lexus (as AW 35-51LS) and for some period of time on 4WD cars such as Land Cruisers and Hilux. This robust automatic transmission had been installed on the RWD and right-handed Toyota produced from 1998 until 2007. The A650E unit replaced the first 5-speed transmission A350 which was the updated version of 340-series.

Speeds 5
Type AT
Drive RWD/4WD
Max torque 430
ATF capacity (L) 8,9
ATF change (L) 3,8
ATF type Toyota Type T-IV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A650E
6.8/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.1
Documentation depth8.9
Knowledge & support5.8

Exploded diagram & parts

Full A650E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

776 776 · No. 1 750 750 · No. 2 070 070 · No. 3 034 034 · No. 4 510 510 · No. 5 530 530 · No. 6 036 036 · No. 7 520 520 · No. 8 037/179 037, 179 · No. 9 778 778 · No. 10 037 037 · No. 11 311 311 · No. 12 210 210 · No. 13 211 211 · No. 14 038 038 · No. 15 551 551 · No. 16 038 038 · No. 17 340 340 · No. 18 341 341 · No. 19 961 961 · No. 20 971 971 · No. 21 865 865 · No. 22 122/102 122, 102 · No. 23 142 142 · No. 24 864 864 · No. 25 867 867 · No. 26 213 213 · No. 27 650 650 · No. 28 650 650 · No. 29 650 650 · No. 30 661 661 · No. 31 214 214 · No. 32 580 580 · No. 33 216 216 · No. 34 217 217 · No. 35 590 590 · No. 36 600 600 · No. 37 868 868 · No. 38 861 861 · No. 39 140 140 · No. 40 120/100 120, 100 · No. 41 140 140 · No. 42 777 777 · No. 43 639A 639A · No. 44 860 860 · No. 45 862 862 · No. 46 970 970 · No. 47 960 960 · No. 48 331 331 · No. 49 330 330 · No. 50 222 222 · No. 51 223 223 · No. 52 630 630 · No. 53 185 185 · No. 54 225 225 · No. 55 916-4 916-4 · No. 56 227 227 · No. 57 226 226 · No. 58 022 022 · No. 59 046 046 · No. 60 555 555 · No. 61 337 337 · No. 62 336 336 · No. 63 965 965 · No. 64 975 975 · No. 65 879 879 · No. 66 131 131 · No. 67 126/106 126, 106 · No. 68 146 146 · No. 69 878 878 · No. 70 229 229 · No. 71 181 181 · No. 72 554 554 · No. 73 048 048 · No. 74 335 335 · No. 75 334 334 · No. 76 964 964 · No. 77 974 974 · No. 78 877 877 · No. 79 853 853 · No. 80 128/108 128, 108 · No. 81 148 148 · No. 82 876 876 · No. 83 231 231 · No. 84 231/232 231, 232 · No. 85 574 574 · No. 86 234 234 · No. 87 235 235 · No. 88 236 236 · No. 89 386 386 · No. 90 622 622 · No. 91 244 244 · No. 92 579 579 · No. 93 888 888 · No. 94 652 652 · No. 95 96 96 · No. 96 652 652 · No. 97 888 888 · No. 98 870 870 · No. 99 152* 152* · No. 100 132/112 132, 112 · No. 101 153 153 · No. 102 869 869 · No. 103 871 871 · No. 104 990 990 · No. 105 989 989 · No. 106 969 969 · No. 107 329 329 · No. 108 328 328 · No. 109 559 559 · No. 110 333 333 · No. 111 332 332 · No. 112 962 962 · No. 113 145* 145* · No. 114 124/104 124, 104 · No. 115 144 144 · No. 116 237 237 · No. 117 239 239 · No. 118 582 582 · No. 119 053 053 · No. 120 052 052 · No. 121 612 612 · No. 122 052-1 052-1 · No. 123 238 238 · No. 124 240 240 · No. 125 881 881 · No. 126 592 592 · No. 127 059 059 · No. 128 385 385 · No. 129 386A 386A · No. 130 490 490 · No. 131 996 996 · No. 132 586 586 · No. 133 246 246 · No. 134 247 247 · No. 135 248 248 · No. 136 596 596 · No. 137 676 676 · No. 138 882 882 · No. 139 614 614 · No. 140 058 058 · No. 141 584 584 · No. 142 249 249 · No. 143 250 250 · No. 144 251 251 · No. 145 594 594 · No. 146 604 604 · No. 147 438 438 · No. 148 760 760 · No. 149 638A 638A · No. 150 669 669 · No. 151 884 884 · No. 152 654 654 · No. 153 664 664 · No. 154 897 897 · No. 155 683 683 · No. 156 895 895 · No. 157 060 060 · No. 158 889 889 · No. 159 263 263 · No. 160 883 883 · No. 161 154 154 · No. 162 134/114 134, 114 · No. 163 155* 155* · No. 164 885 885 · No. 165 977 977 · No. 166 967 967 · No. 167 339 339 · No. 168 169 169 · No. 169 338 338 · No. 170 171 171 · No. 171 172 172 · No. 172 173 173 · No. 173 262 262 · No. 174 446 446 · No. 175 176 176 · No. 176 177 177 · No. 177 178 178 · No. 178 179 179 · No. 179 180 180 · No. 180 741-1 741-1 · No. 181 440 440 · No. 182 422 422 · No. 183 184 184 · No. 184 185 185 · No. 185 186 186 · No. 186 187 187 · No. 187 436 436 · No. 188 781 781 · No. 189 770 770 · No. 190 066 066 · No. 191 074 074 · No. 192 193 193 · No. 193 194 194 · No. 194 195 195 · No. 195 782 782 · No. 196 431 431 · No. 197 453 453 · No. 198 425 425 · No. 199 200 200 · No. 200 423 423 · No. 201 421 421 · No. 202 203 203 · No. 203 204 204 · No. 204 205 205 · No. 205 206 206 · No. 206 207 207 · No. 207 208 208 · No. 208 209 209 · No. 209 210 210 · No. 210 211 211 · No. 211 212 212 · No. 212 213 213 · No. 213 214 214 · No. 214 991-3 991-3 · No. 215 991S 991S · No. 216 072 072 · No. 217 991-2 991-2 · No. 218 010 010 · No. 219 220 220 · No. 220 779 779 · No. 221 222 222 · No. 222 410 410 · No. 223 991-4 991-4 · No. 224 225 225 · No. 225 226 226 · No. 226 227 227 · No. 227 228 228 · No. 228 072 072 · No. 229 994 994 · No. 230 480/480-3 480, 480-3 · No. 231

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to A650E in the Go4Trans marketplace.
Sell A650E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

30 applications · 2 makes · 1998–2007 Lexus 19 · Toyota 11

Make Model Year Drive Engine
Lexus GS300 1998-2005 5 Spd RWD V6 3.0L
Lexus GS300 1998-2005 3.0
Lexus GS400 1998-2001 4.0
Lexus GS400 1998-2000 5 Spd RWD V8 4.0L
Lexus GS430 2001-2005 5 Spd RWD V8 4.0L
Lexus GS430 2001-2005 5 Spd RWD V8 4.3L
Lexus GS430 2001-2005 4.3
Lexus IS 2000-2005 5 Spd RWD V6 3.0L
Lexus IS300 2001-2005 5 Spd RWD L6 3.0L
Lexus IS300 2001-2005 3.0
Lexus LS400 1998-2000 5 Spd RWD V8 4.0L
Lexus LS400 1998-2000 4.0
Lexus LS430 2001-2003 5 Spd RWD V8 4.3L
Lexus LS430 2001-2003 4.3
Lexus SC300 1998-2002 3.0
Lexus SC400 1998-2001 4.0
Lexus SC400 1998-2000 5 Spd RWD V8 4.0L
Lexus SC430 2002-2005 4.3
Lexus SC430 2001-2005 5 Spd RWD V8 4.3L
Toyota BREVIS 2001-2007 5 Spd RWD V6 2.5L/3.0L
Toyota CELSIOR 2001-2003 5 Spd RWD V8 4.3L
Toyota CENTURY 2000-2004 5 Spd RWD V12 5.0L
Toyota CHASER 2000-2001 5 Spd RWD V6 2.5L
Toyota CRESTA 2000-2001 5 Spd RWD V6 2.5L
Toyota HILUX 2000-2005 5 Spd R/AWD V6 3.4L V8 4.7L
Toyota Land Cruiser 2000-2002 5 Spd AWD V6 3.4L V8 4.7L
Toyota MARK II 2000-2004 5 Spd RWD L4 2.0L 2.2L V6 2.5L
Toyota PROGRES 2001-2007 5 Spd RWD V6 2.5L 3.0L
Toyota SOARER 2001-2005 5 Spd RWD V8 4.3L
Toyota VEROSSA 2001-2004 5 Spd RWD V6 2.0/2.5L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

35-50LS
3550 LS
3550LS
35-50 LS
A650-E
AW 35-50LS
A650E
AW 35-50 LS
AW3550LS
AW35-50LS
A650 E
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Pump and Pump Bushing Wear
Long-term operation with leaking seal leads to pump and pump bushing replacement necessity.
!
Torque Converter Friction Wear
Wear-out of torque converter friction material due to untimely spare parts replacement causes pump damage.
!
Leaking Seal Failure
Seal leakage during long-term operation leads to secondary damage including pump wear.
!
2nd Brake Friction Pack
Friction components in 2nd Brake package require replacement; noted as a rare but documented failure point.
!
Torque Converter Lockup Slipping
A650E was a test platform for lockup slipping technology; elevated slipping can indicate converter issues.
?
Gaskets and Seals Degradation
Full overhaul kit gaskets and seals replacement needed in dry-operating A650E units, though rare.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic transmission A650E with the langitudinal positioning has been installed since 1998 on RWD Lexus (as AW 35-51LS) and for some period of time on 4WD cars such as Land Cruisers and Hilux. This robust automatic transmission had been installed on the RWD and right-handed Toyota produced from 1998 until 2007. The A650E unit replaced the first 5-speed transmission A350 which was the updated version of 340-series.

Technical issues and repair guidelines

The A650E unit is a rare “guest” in repair shops. Partly this is due to the fact that this transmission was so-called “pioneer” used for testing new technologies of linear solenoids, increased temperatures and slipping of the torque converter lockup, and partly because all Aisin products with longitudinal positioning are traditionally quite durable. Many units and spare parts from A340 can be used in the A650E modification.

It is a very rare case when all gaskets and seals from the overhaul kit and friction components in 2nd Brake package are changed in the dry-operating A650E transmission.Occasionally, long-time operation of the transmission with a leaking seal leads to necessity of the pump and pump bushing replacement. This problem is caused by the wear-out of the torque converter friction, where spare parts are untimely replaced. This automatic transmission was replaced by 5-6-speed A750E and A761E.
