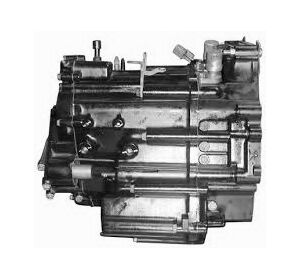

Honda A24A Transmission

First of all Japanese engineers pay much attention to the reliability rate when manufacturing automatic transmissions. Reliability became an important factor when Japanese specialists decided to produce 4-speed automatic transmission M4TA (released in 1997) without planetary gears. The advantage of this solution is considered to be improved reliability. But it the same time it should be noted, that such transmissions have a massive size, therefore it complicates the process of repair. The automatic transmission M4TA was installed on Honda Civic, Odyssey, Prelude, Accord,…

Speeds 4
Type AT
Drive FWD
ATF capacity (L) 5,9
ATF change (L) 2,7
ATF type Honda Z-1
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A24A
4.5/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence0.9
Documentation depth10.0
Knowledge & support4.0

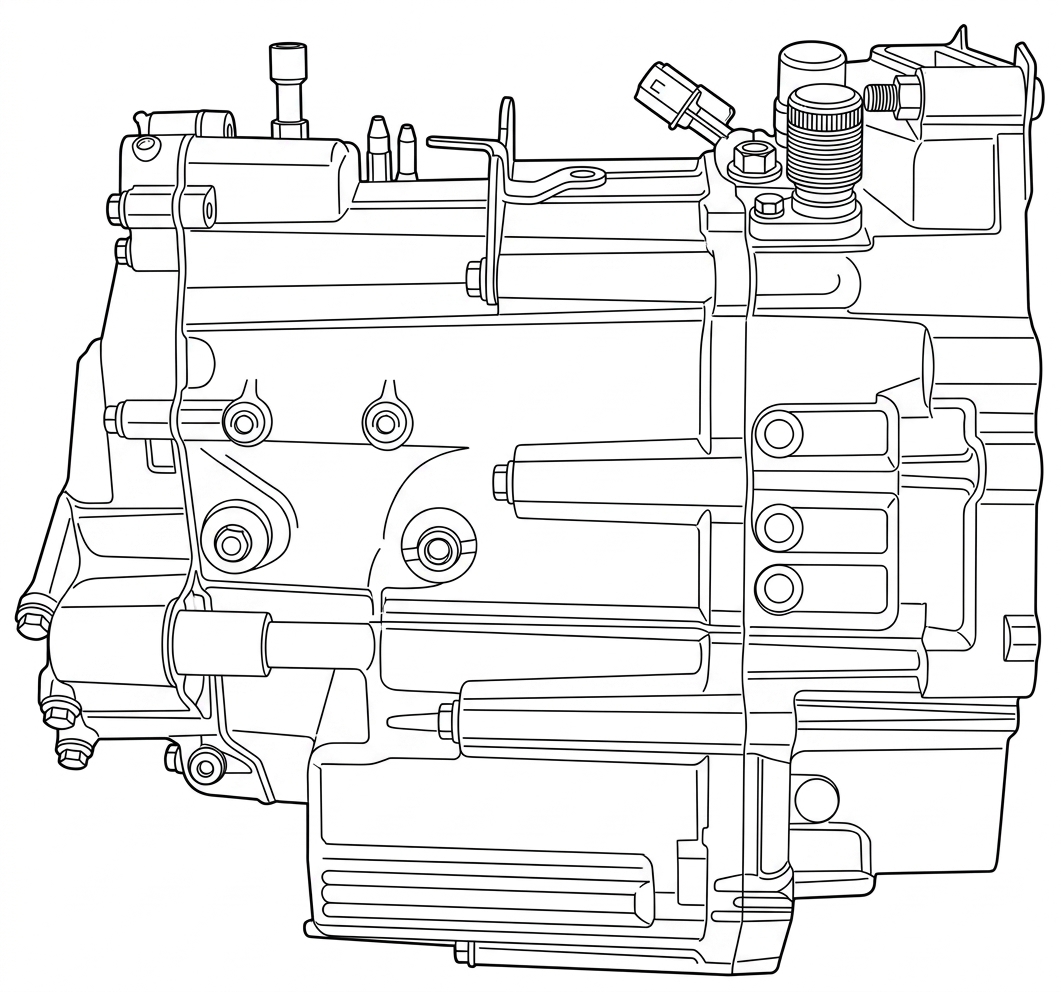

Exploded diagram & parts

Full MDMA parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

211 +2 211, 870, 070 · No. 1 529 529 · No. 2 381 381 · No. 3 879 879 · No. 4 214 214 · No. 5 179A 179A · No. 6 179 179 · No. 7 672 672 · No. 8 356 356 · No. 9 217 217 · No. 10 803 803 · No. 11 220 220 · No. 12 223 223 · No. 13 226 226 · No. 14 861 861 · No. 15 140* 140* · No. 16 120/100 120, 100 · No. 17 850 850 · No. 18 862 862 · No. 19 980 980 · No. 20 970 970 · No. 21 960 960 · No. 22 331 331 · No. 23 330 330 · No. 24 550 550 · No. 25 331 331 · No. 26 330 330 · No. 27 960 960 · No. 28 970 970 · No. 29 980 980 · No. 30 862 862 · No. 31 850 850 · No. 32 120/100 120, 100 · No. 33 140* 140* · No. 34 861 861 · No. 35 229 229 · No. 36 232 232 · No. 37 234 234 · No. 38 236 236 · No. 39 40 40 · No. 40 809 809 · No. 41 238 238 · No. 42 239 239 · No. 43 881 881 · No. 44 241 241 · No. 45 883 883 · No. 46 243 243 · No. 47 244 244 · No. 48 800 800 · No. 49 247 247 · No. 50 251 251 · No. 51 252 252 · No. 52 861 861 · No. 53 140* 140* · No. 54 120/100 120, 100 · No. 55 850 850 · No. 56 862 862 · No. 57 980 980 · No. 58 970 970 · No. 59 960 960 · No. 60 557 557 · No. 61 207 207 · No. 62 795 795 · No. 63 689 689 · No. 64 689B 689B · No. 65 248 248 · No. 66 790 790 · No. 67 694 694 · No. 68 675 675 · No. 69 246 246 · No. 70 249 249 · No. 71 811 811 · No. 72 250 250 · No. 73 253 253 · No. 74 258 258 · No. 75 867 867 · No. 76 148* 148* · No. 77 128/108 128, 108 · No. 78 853 853 · No. 79 877 877 · No. 80 984 984 · No. 81 974 974 · No. 82 964 964 · No. 83 334 334 · No. 84 335 335 · No. 85 554 554 · No. 86 255 255 · No. 87 889 889 · No. 88 802 802 · No. 89 206 206 · No. 90 796 796 · No. 91 818 818 · No. 92 283 283 · No. 93 820 820 · No. 94 819 819 · No. 95 689 689 · No. 96 254 254 · No. 97 676/555 676, 555 · No. 98 331 331 · No. 99 960 960 · No. 100 970 970 · No. 101 980 980 · No. 102 862 862 · No. 103 850 850 · No. 104 120/100 120, 100 · No. 105 140* 140* · No. 106 256* 256* · No. 107 257 257 · No. 108 260 260 · No. 109 807 807 · No. 110 263 263 · No. 111 887 887 · No. 112 113 113 · No. 113 804 804 · No. 114 267* 267* · No. 115 268 268 · No. 116 810 810 · No. 117 835 835 · No. 118 830 830 · No. 119 816 816 · No. 120 271 271 · No. 121 272 272 · No. 122 884 884 · No. 123 274 274 · No. 124 278 278 · No. 125 279 279 · No. 126 801 801 · No. 127 658 658 · No. 128 690 690 · No. 129 796 796 · No. 130 774 774 · No. 131 425 425 · No. 132 276 276 · No. 133 708 708 · No. 134 277 277 · No. 135 275 275 · No. 136 840 840 · No. 137 490 490 · No. 138 329 329 · No. 139 493 493 · No. 140 141 141 · No. 141 142 142 · No. 142 143 143 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 750 750 · No. 147 530/747 530, 747 · No. 148 535 535 · No. 149 740 740 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 154 154 · No. 154 155 155 · No. 155 680 680 · No. 156 292 292 · No. 157 707 707 · No. 158 289 289 · No. 159 720 720 · No. 160 899* 899* · No. 161 760 +2 760, 076, 318 · No. 162 999 999 · No. 163 164 164 · No. 164 165 165 · No. 165 166 166 · No. 166 167 167 · No. 167 168 168 · No. 168 305/759 305, 759 · No. 169 010 010 · No. 170 991-2 991-2 · No. 171 172 172 · No. 172 173 173 · No. 173 174 174 · No. 174 175 175 · No. 175 176 176 · No. 176 177 177 · No. 177 178 178 · No. 178 179 179 · No. 179 180 180 · No. 180 181 181 · No. 181 182 182 · No. 182 183 183 · No. 183 184 184 · No. 184 185 185 · No. 185 186 186 · No. 186 187 187 · No. 187 188 188 · No. 188 189 189 · No. 189 190 190 · No. 190 786 786 · No. 191 192 192 · No. 192 193 193 · No. 193 194 194 · No. 194 195 195 · No. 195 196 196 · No. 196 996 996 · No. 197 991-4 991-4 · No. 198 072 072 · No. 199 495 495 · No. 200 201 201 · No. 201 202 202 · No. 202 203 203 · No. 203

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to A24A in the Go4Trans marketplace.
Sell A24A parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

2 applications · 1 make · 1992–1997 Honda 2

Make Model Year Drive Engine
Honda Civic Coupe 1992-1997 1.5, 1.6
Honda Civic Del Sol 1992-1995 4 Spd FWD L4 1.5L 1.6L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A24A
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Seals and rubber gaskets failure
Rubber-covered gaskets and seals deteriorate rapidly causing oil leakages requiring replacement.
?
Transmission oil leakage
Oil leaks resulting from degraded rubber-covered linings and failed seals throughout the transmission.
!
Friction clutch wear and burn
Friction clutches wear out or burn, requiring replacement during overhaul; aggressive driving accelerates failure.
?
Premature overhaul requirement
Aggressive driving or improper operation can trigger full overhaul need as early as 100,000 km.
!
Valve body degradation
Valve body condition deteriorates and requires inspection and servicing during full transmission overhaul.
!
Clutch drum replacement needed
Clutch drums may require replacement during overhaul, typically inspected alongside friction clutch servicing.
!
Bushing and friction wear
Bushings and friction clutches wear prematurely when low-quality transmission oil is used.
?
General transmission overhaul interval
Normal overhaul expected after 300,000 km under proper urban operation and regular oil/filter changes.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

First of all Japanese engineers pay much attention to the reliability rate when manufacturing automatic transmissions. Reliability became an important factor when Japanese specialists decided to produce 4-speed automatic transmission M4TA (released in 1997) without planetary gears. The advantage of this solution is considered to be improved reliability. But it the same time it should be noted, that such transmissions have a massive size, therefore it complicates the process of repair. The automatic transmission M4TA was installed on Honda Civic, Odyssey, Prelude, Accord, crossover CRV. The maximum engine capacity allowed for this transmission equals to 2,4 liters.

  • Honda CIVIC; 92-95 4 SP FWD L4 1.5/1.6L; Honda A24A

Technical issues and repair guidelines

As it has been mentioned above the automatic transmission M4TA is notable for its enhanced reliability. The car owner only needs to regularly change the oil with filter elements. It is required to use high-quality transmission oil, that preserves bushings and friction clutches from wear-out.

In most cases it is required to perform the overhaul after travelling 300.000 kilometers or more. At the same time it should be noted, that improper operation of the transmission and aggressive driving behavior may lead to frequent malfunctions resulting in the overhaul after running 100.000 kilometers and even earlier. Therefore it is necessary to point out, that this transmission is mainly intended for operation in urban environment.

In the list the most frequent malfunctions we should point out problems with seals and rubber-covered gaskets. Rubber covered linings may get out of order rapidly leading to oil leakages. In this case it is required to replace rubber covered gaskets and seals. Implementation of these repair procedures may be troublesome because of the transmission dimensions. The pan disassembly is a complicated procedure and should be performed in the service facility. In the process of overhaul specialists perform the valve body state check, replacement of friction clutches and drums. In some specific cases it is required to replace burnt clutch. Generally this transmission makes a good impression, distinguished by reliability and repairability.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
自動變速箱大修篇 HONDA CIVIC 1994~ S24A/A24A/M24A
mesing2005
video
Honda Civic Transmission, BMXA, Teardown Inspection
Automatic Transmission
