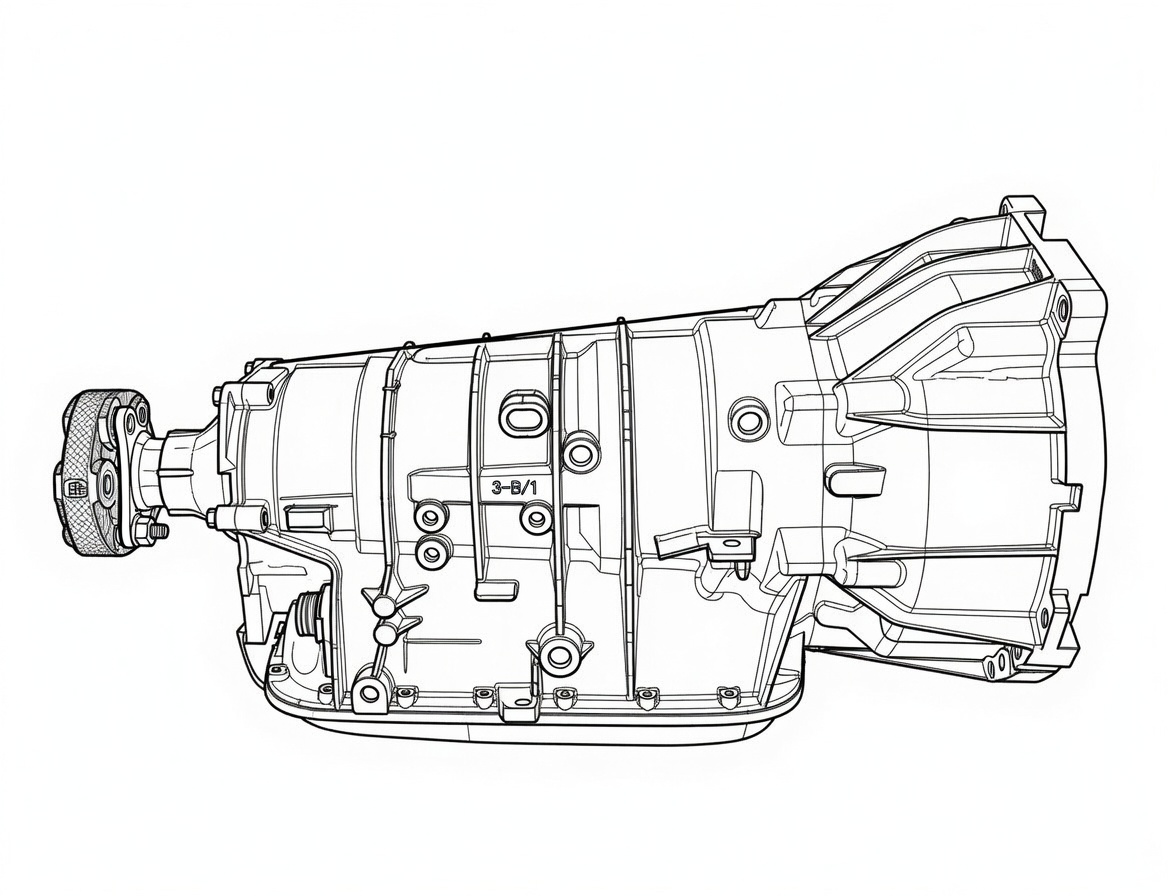

ZF 8HP50 Transmission

Speeds 8
Layout Longitudinal
Drive RWD / AWD
Generation 3rd (2012–)
Weight ~97 kg
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
8HP50
6.9/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.5
Documentation depth8.2
Knowledge & support6.5
Diagram Parts Fitment Aliases Symptoms About Related Sources Contribute

Exploded diagram & parts

Full 8HP55 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

838/893 838, 893 · No. 1 494 494 · No. 2 070 070 · No. 3 898 898 · No. 4 777 777 · No. 5 295 295 · No. 6 510-1 510-1 · No. 7 526 526 · No. 8 699 699 · No. 9 202 202 · No. 10 203 203 · No. 11 525 525 · No. 12 527 527 · No. 13 520 520 · No. 14 313 313 · No. 15 534 534 · No. 16 532 532 · No. 17 18 18 · No. 18 533 533 · No. 19 528 528 · No. 20 311 311 · No. 21 507-3 507-3 · No. 22 899 899 · No. 23 036 036 · No. 24 520-1 520-1 · No. 25 209 +2 209, 310, 778 · No. 26 860 860 · No. 27 899 +2 899, 335, 334 · No. 28 964 964 · No. 29 974 974 · No. 30 877 877 · No. 31 129 129 · No. 32 128/108 128, 108 · No. 33 148 148 · No. 34 232 232 · No. 35 232-1 232-1 · No. 36 038 038 · No. 37 674 674 · No. 38 039 039 · No. 39 233 233 · No. 40 234 234 · No. 41 338/339 338, 339 · No. 42 758 +2 758, 343, 076 · No. 43 373 373 · No. 44 966 966 · No. 45 956 956 · No. 46 131 131 · No. 47 130/110 130, 110 · No. 48 150* 150* · No. 49 592 592 · No. 50 236 236 · No. 51 239 239 · No. 52 892 892 · No. 53 053 053 · No. 54 582 582 · No. 55 612 612 · No. 56 177 177 · No. 57 670 670 · No. 58 580 580 · No. 59 880 880 · No. 60 242 242 · No. 61 240 240 · No. 62 241 241 · No. 63 590 590 · No. 64 614 614 · No. 65 868 868 · No. 66 222 222 · No. 67 223 223 · No. 68 715 +7 715, 292, 289, 291, 288, 293*, 290*, 076 · No. 69 888 888 · No. 70 584 584 · No. 71 889 889 · No. 72 594/889 594, 889 · No. 73 251/250 251, 250 · No. 74 574 574 · No. 75 332 332 · No. 76 332/332-1 332, 332-1 · No. 77 144* 144* · No. 78 104/124 104, 124 · No. 79 125 125 · No. 80 972 972 · No. 81 982 982 · No. 82 333/962 333, 962 · No. 83 874 874 · No. 84 235 235 · No. 85 330 330 · No. 86 330 330 · No. 87 570-1 570-1 · No. 88 356 356 · No. 89 357 357 · No. 90 570 570 · No. 91 140* 140* · No. 92 100/120 100, 120 · No. 93 121 121 · No. 94 331 +2 331, 970, 980 · No. 95 862/960 862, 960 · No. 96 214 214 · No. 97 056 056 · No. 98 616 616 · No. 99 059 059 · No. 100 494 494 · No. 101 493 493 · No. 102 776 776 · No. 103 318 +2 318, 381, 750 · No. 104 557 557 · No. 105 878* 878* · No. 106 146 146 · No. 107 126/106 126, 106 · No. 108 127 127 · No. 109 337 337 · No. 110 985 985 · No. 111 975 975 · No. 112 965 965 · No. 113 312/965-1 312, 965-1 · No. 114 336 336 · No. 115 062 062 · No. 116 586 586 · No. 117 879 879 · No. 118 596 596 · No. 119 626 626 · No. 120 271* 271* · No. 121 064 064 · No. 122 064 064 · No. 123 760 760 · No. 124 304 304 · No. 125 838/774 838, 774 · No. 126 275 275 · No. 127 697 697 · No. 128 282/284* 282, 284* · No. 129 283 283 · No. 130 714 714 · No. 131 280/299 280, 299 · No. 132 886 886 · No. 133 298A 298A · No. 134 298B 298B · No. 135 543 543 · No. 136 707 707 · No. 137 790 790 · No. 138 205 205 · No. 139 296 296 · No. 140 509 509 · No. 141 297 297 · No. 142 531 531 · No. 143 759 759 · No. 144 348 348 · No. 145 719 719 · No. 146 206 206 · No. 147 895 895 · No. 148 891 891 · No. 149 678/268 678, 268 · No. 150 770 770 · No. 151 387B 387B · No. 152 492B 492B · No. 153 074 074 · No. 154 733 733 · No. 155 489 489 · No. 156 495 +2 495, 342, 382 · No. 157 444-1 444-1 · No. 158 444 +2 444, 347B, 347A · No. 159 385 385 · No. 160 446 446 · No. 161 467 467 · No. 162 991-2 991-2 · No. 163 780 780 · No. 164 788 788 · No. 165 457 457 · No. 166 782 782 · No. 167 168 168 · No. 168 749 749 · No. 169 740/382 740, 382 · No. 170 459 459 · No. 171 425 425 · No. 172 423 423 · No. 173 427 427 · No. 174 422 422 · No. 175 440 440 · No. 176 421 421 · No. 177 992 992 · No. 178 072 072 · No. 179 991-3 991-3 · No. 180 730 730 · No. 181 276* 276* · No. 182 274 274 · No. 183 696 696 · No. 184 735 735 · No. 185 273 273 · No. 186 796 796 · No. 187 075A 075A · No. 188 894 894 · No. 189 075B 075B · No. 190 731/075C 731, 075C · No. 191 732 732 · No. 192 887 887 · No. 193 281 281 · No. 194 713 713 · No. 195 787 787 · No. 196 712 712 · No. 197 010 +2 010, 300, 765 · No. 198 418 418 · No. 199 431 431 · No. 200 995-6 995-6 · No. 201 995-1 995-1 · No. 202 995-4 995-4 · No. 203 994 994 · No. 204 272* 272* · No. 205 278A 278A · No. 206 279A 279A · No. 207 080 080 · No. 208 710 710 · No. 209 275 275 · No. 210 081 081 · No. 211 798 798 · No. 212 279B 279B · No. 213 278B 278B · No. 214 445 445 · No. 215

Parts categories

View all parts →
Kits
Kits
18 parts
Valve body & solenoids
Valve body & solenoids
11 parts
Electrical
Electrical
3 parts
Filters & pans
Filters & pans
2 parts
Seals & gaskets
Seals & gaskets
52 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
53 parts
Pump
Pump
6 parts
Friction & steel
Friction & steel
30 parts
Planetary & hard parts
Planetary & hard parts
40 parts
Hardware & other
Hardware & other
45 parts
Sell 8HP50 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

25 applications · 6 makes · 2011–2018 BMW 16 · Jaguar 3 · Jeep 2 · Volkswagen 2 · Land Rover 1

Make Model Year Drive Engine
BMW SÉRIE 1 2013-2016 8 Spd RWD L4 1.6/2.0 L6 3.0L
BMW SÉRIE 3 2011-2016 8 Spd R/AWD L4 1.6/2.0L L6 3.0L
BMW SÉRIE 3 GT 2012-2018 8 Spd R/4WD L4 2.0L L6 3.0L
BMW SÉRIE 4 2015-2016 8 Spd RWD L4 2.0L L6 3.0L
BMW SÉRIE 4 GRAN COUPÉ 2015-2016 8 Spd R/4WD L4 2.0L
BMW SÉRIE 5 2014-2016 8 Spd R/AWD L4 2.0L L6 2.5/3.0L
BMW SÉRIE 6 2015-2016 8 Spd R/4WD L6 3.0L
BMW SÉRIE 6 GRAN COUPÉ 2015-2016 8 Spd RWD L6 3.0L
BMW SÉRIE 7 2016 8 Spd RWD L4 2.0L L6 3.0L
BMW SÉRIE 8 2018 8 Spd R/4WD L6 3.0L
BMW X3 2014-2016 8 Spd R/4WD L4 2.0L L6 3.0L
BMW X4 2014-2018 8 Spd R/AWD L4 2.0L
BMW X5 2014-2016 8 Spd R/AWD L6 3.0L
BMW X6 2014-2016 8 Spd R/AWD L6 3.0L
BMW X7 2018 8 Spd 4WD L6 3.0L
BMW Z4 2018 8 Spd RWD L4 2.0L L6 3.0L
Jaguar F-PACE 2016 8 Spd R/4WD L4 2.0/2.2L V6 3.0L
Jaguar XE 2016 8 Spd R/4WD L4 2.0L
Jaguar XF 2016 8 Spd R/4WD L4 2.0L
Jeep Cherokee 2015-2017 8 Spd F/4WD L4 2.2L
Jeep Wrangler 2017-2018 8 Spd 4WD L4 2.0/2.2L V6 3.0/3.6L
Land Rover Discovery 2016 8 Spd 4WD L4 2.0L
RAM 1500 2018 8 Spd R/4WD V6 3.6L
Volkswagen AMAROK 2016-2018 8 Spd RWD L4 2.0L
Volkswagen AMAROK 2016-2018 8 Spd 4WD V6 3.0L V8 4.2L W12 6.0L

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

8HP50 OEM designation
8HP-50 hyphenated variant
GA8HP50Z BMW designation
8HP50X export designation
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

⚡
Harsh shifts!
Sudden or jerky gear changes, especially 1-2 or kickdown
?
Slipping under load
RPM rises but vehicle does not accelerate proportionally
?
Shudder in 4th-6th
Vibration at highway cruise, often torque converter lockup
?
Delayed engagement
Noticeable pause when selecting D or R from P
?
Oil leak (pan area)
Seepage from transmission pan gasket or mechatronic sleeve
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

8-speed automatic in ZF's 8HP family, rated to ~500 Nm and shared across premium longitudinal-engine platforms. Everything for this model — parts, shops, fitment and verified data — in one place. 111
