Mercedes-Benz 725.0 Transmission

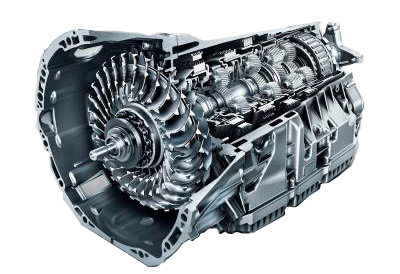

The 9-speed automatic transmission 9G-Tronic (725.0) was developed by the company Mercedes-Benz and was released in 2013, replacing the model 7G-Tronic.

Speeds 9
Type AT
Drive RWD/AWD
Max torque 1000
ATF capacity (L) 10,2
ATF change (L) 6
ATF type 236.16
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
725.0
4.5/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence5.7
Documentation depth0.0
Knowledge & support6.5

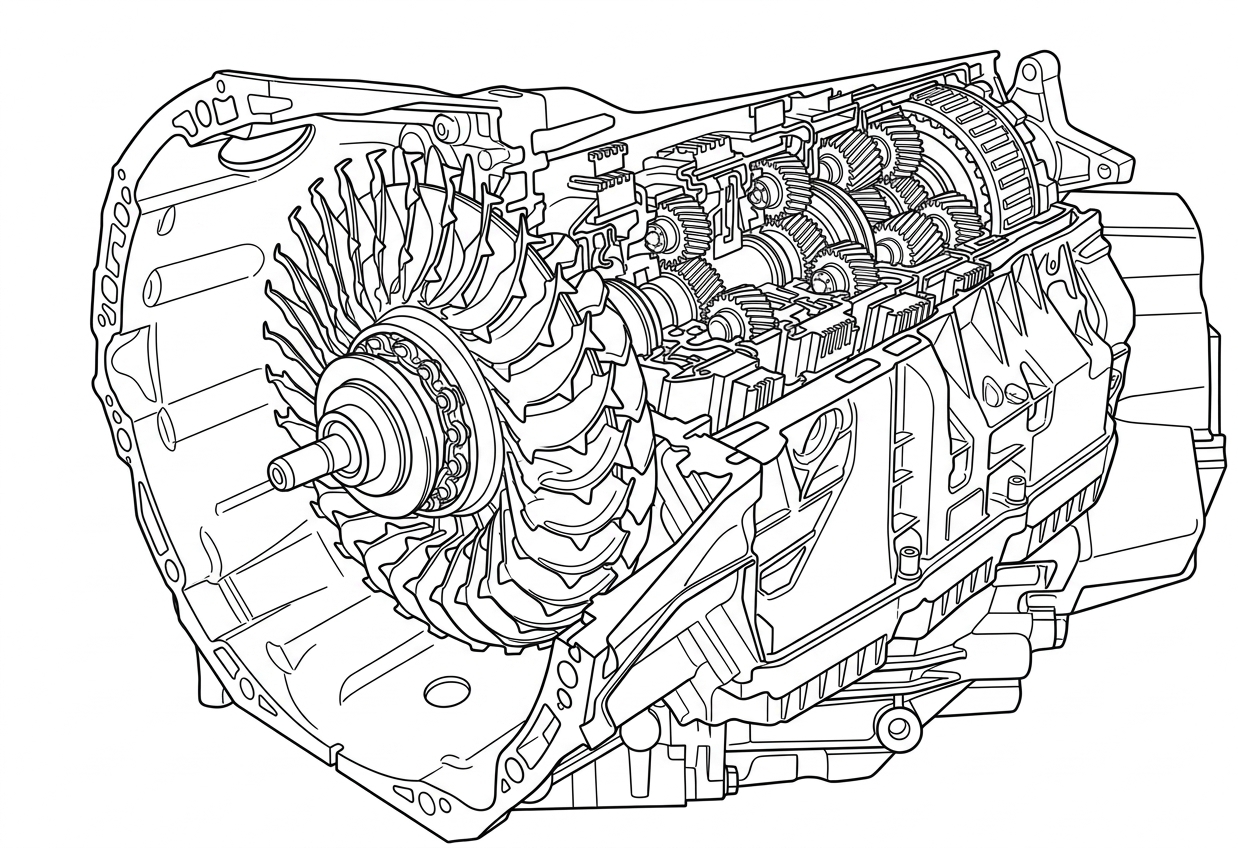

Exploded diagram & parts

Full 725.0 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

1 1 · No. 1 2 2 · No. 2 070 070 · No. 3 295 295 · No. 4 178 178 · No. 5 181 181 · No. 6 331 331 · No. 7 960 960 · No. 8 970 970 · No. 9 862 862 · No. 10 336 336 · No. 11 575-1 575-1 · No. 12 337 337 · No. 13 965 965 · No. 14 985 985 · No. 15 337-1 337-1 · No. 16 975 975 · No. 17 975-1 975-1 · No. 18 985-1 985-1 · No. 19 879 879 · No. 20 147/127 147, 127 · No. 21 106/126 106, 126 · No. 22 780 780 · No. 23 519/310 519, 310 · No. 24 525/205 525, 205 · No. 25 527 527 · No. 26 526 526 · No. 27 776 776 · No. 28 507-4 507-4 · No. 29 887 887 · No. 30 544/750 544, 750 · No. 31 898 898 · No. 32 520-1 520-1 · No. 33 179 179 · No. 34 210 210 · No. 35 330 330 · No. 36 071 071 · No. 37 899 899 · No. 38 520 +2 520, 535, 311 · No. 39 671/896 671, 896 · No. 40 534 534 · No. 41 532 532 · No. 42 314/528 314, 528 · No. 43 44 44 · No. 44 507-9 507-9 · No. 45 326 326 · No. 46 146 146 · No. 47 575 575 · No. 48 878 878 · No. 49 228 228 · No. 50 886 886 · No. 51 570 570 · No. 52 213 213 · No. 53 580 580 · No. 54 216 216 · No. 55 318 318 · No. 56 120AA/121 120AA, 121 · No. 57 120/100 120, 100 · No. 58 861/140 861, 140 · No. 59 765-5 765-5 · No. 60 180 180 · No. 61 209 209 · No. 62 670 670 · No. 63 182 182 · No. 64 231 231 · No. 65 232 232 · No. 66 867 867 · No. 67 571 571 · No. 68 319 319 · No. 69 551 551 · No. 70 329 329 · No. 71 328 328 · No. 72 961 961 · No. 73 961-1 961-1 · No. 74 343 343 · No. 75 971 971 · No. 76 981 981 · No. 77 865 865 · No. 78 233 233 · No. 79 234 234 · No. 80 875 875 · No. 81 123 123 · No. 82 122/102 122, 102 · No. 83 864/142 864, 142 · No. 84 592 592 · No. 85 235 235 · No. 86 237A 237A · No. 87 622 622 · No. 88 237R 237R · No. 89 582 582 · No. 90 883 883 · No. 91 238 238 · No. 92 239 239 · No. 93 612 612 · No. 94 240 240 · No. 95 241 241 · No. 96 242 242 · No. 97 243 243 · No. 98 244 244 · No. 99 614 614 · No. 100 245 245 · No. 101 246 246 · No. 102 596 596 · No. 103 247 247 · No. 104 248 248 · No. 105 249 249 · No. 106 250 250 · No. 107 586 586 · No. 108 251 251 · No. 109 252 252 · No. 110 888 888 · No. 111 584 584 · No. 112 253 253 · No. 113 254 254 · No. 114 255 255 · No. 115 594 594 · No. 116 256 256 · No. 117 257 257 · No. 118 144/873 144, 873 · No. 119 124A/104 124A, 104 · No. 120 125/124AA 125, 124AA · No. 121 874 874 · No. 122 962/972 962, 972 · No. 123 956 956 · No. 124 420 420 · No. 125 791 791 · No. 126 870/152 870, 152 · No. 127 132/112 132, 112 · No. 128 871/133 871, 133 · No. 129 989 989 · No. 130 342 342 · No. 131 979 979 · No. 132 969 969 · No. 133 340 340 · No. 134 341 341 · No. 135 258 258 · No. 136 559 559 · No. 137 148/876 148, 876 · No. 138 128/108 128, 108 · No. 139 760 760 · No. 140 263 263 · No. 141 697 697 · No. 142 890 890 · No. 143 264 264 · No. 144 894 894 · No. 145 074 074 · No. 146 287 287 · No. 147 798 798 · No. 148 995-4 995-4 · No. 149 794 794 · No. 150 494 494 · No. 151 494P 494P · No. 152 484/382 484, 382 · No. 153 356 356 · No. 154 386 386 · No. 155 495AA 495AA · No. 156 356 356 · No. 157 469A 469A · No. 158 469AA 469AA · No. 159 428/740 428, 740 · No. 160 504 504 · No. 161 853 853 · No. 162 163 163 · No. 163 974 974 · No. 164 165 165 · No. 165 964 964 · No. 166 335 335 · No. 167 334 334 · No. 168 994/464 994, 464 · No. 169 995-1 995-1 · No. 170 995-3 995-3 · No. 171 765/300 765, 300 · No. 172 495 495 · No. 173 495/487 495, 487 · No. 174 325A 325A · No. 175 385 385 · No. 176 495A 495A · No. 177 178 178 · No. 178 790 790 · No. 179 459 459 · No. 180 796 796 · No. 181 182 182 · No. 182 789 789 · No. 183 184 184 · No. 184 185 185 · No. 185 371/493 371, 493 · No. 186 698 698 · No. 187 425 425 · No. 188 421 421 · No. 189 426 426 · No. 190 744 744 · No. 191 192 192 · No. 192 422 422 · No. 193 430 430 · No. 194 423 423 · No. 195

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 725.0 in the Go4Trans marketplace.
Sell 725.0 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

27 applications · 2 makes · 1990–2018 Mercedes-Benz 26 · Nissan 1

Make Model Year Drive Engine
Mercedes-Benz CLASSE C 2018 9 Spd RWD V8 4.0L
Mercedes-Benz CLASSE C 2017-2018 9 Spd RWD L4 2.0L
Mercedes-Benz CLASSE E 2014 9 Spd R/AWD V6 3.0L 3.5L
Mercedes-Benz CLASSE S 2014 9 Spd RWD V8 4.0L
Mercedes-Benz CLASSEC COUPÉ 2016 9 Spd R/4WD V6 3.0L
Mercedes-Benz CLS 2018 9 Spd R/4WD L4 2.0L
Mercedes-Benz CLS 2018 9 Spd 4WD V8 4.0L
Mercedes-Benz CLS 2016 9 Spd R/4WD V8 5.5L
Mercedes-Benz CLS 2014-2016 9 Spd RWD L4 2.2L V6 3.0/3.5L
Mercedes-Benz E-CLASS 2016 9 Spd R/4WD V8 4.0L
Mercedes-Benz E-CLASS 2016 9 Spd RWD L4 2.0L
Mercedes-Benz E-CLASS COUPÉ 2014-2016 9 Spd RWD V6 3.0L
Mercedes-Benz G WAGEN 1990-2018 9 Spd 4WD V12 6.0L
Mercedes-Benz GLC 2015-2016 9 Spd R/4WD V6 3.0L
Mercedes-Benz GLC COUPÉ 2016 9 Spd 4WD V6 3.0L
Mercedes-Benz GLC COUPÉ 2016 9 Spd 4WD L4 2.2L
Mercedes-Benz GLE COUPÉ 2015-2016 9 Spd 4WD V6 3.0L V8 4.6/5.5L
Mercedes-Benz ML CLASS 2015-2016 9 Spd 4WD L4 2.2L V6 3.0L
Mercedes-Benz R50 2018 9 Spd 4WD V6 1.6L
Mercedes-Benz S-CLASS 2017-2018 9 Spd RWD V12 6.0L V8 4.0L
Mercedes-Benz S-CLASS 2016 9 Spd RWD V8 4.6L
Mercedes-Benz S-CLASS 2014-2016 9 Spd RWD V8 4.6L
Mercedes-Benz S-CLASS COUPÉ 2014-2016 9 Spd RWD V8 4.0/4.6L
Mercedes-Benz SLC 2014 9 Spd RWD V8 4.0L V12 6.0L
Mercedes-Benz SLK 2014 9 Spd RWD L4 2.0L V6 2.5L
Mercedes-Benz V-CLASS 2017-2018 9 Spd RWD L4.20L
Nissan Titan 2016 9 Spd R/4WD V8 5.8L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

9GTronic
HW9B700
HW9X400
725-000
HW9S500
HW9T400
HW9Y900
HW9S400
725 000
HW9Y500
K9S900
HW9Y400
HW9X500
725.0
HW9X700
HW9Y700
9G-TRONIC
K9X900
HW9B900
HW9A900
M725
HW9T700
K9T900
K9B900
HW9T500
HW9X900
HW9B400
9G-Tronik
HW9B500
HW9A700
HW9A500
HW9S700
HW9S900
HW9T900
725.000
K9Y900
9GTronik
HW9A400
K9A900
JR913E
W9A700
K9A1000
HK9A700
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

No symptoms recorded yet.

Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 9-speed automatic transmission 9G-Tronic (725.0) was developed by the company Mercedes-Benz and was released in 2013, replacing the model 7G-Tronic.

When developing this gearbox, Mercedes-Benz’s transmission specialists concentrated on simplifying the structure of the transmission, while maintaining its size and implementing the solution with 9 gears, minimum number of planetary gear sets and mechanisms of gear shifting. As a result of intensive computer system analysis and synthesis, transmission engineers solved this problem by means of only 4 planetary gear sets and 6 gear shifting mechanisms.

Since 2014, the 9G-Tronic transmission has been installed on cars of E-(including coupe/cabriolet) and CLS Classes, since 2015 – on GLC, GLE (including coupe), and GLS Classes. The 9G-Tronic is considered to be the world’s first 9-speed automatic gearbox in the segment of premium cars. The performance efficiency of this amounts to incredible 92% (this parameter of 7G-Tronic was equal to 85%). The span of gear ratios is equal to 9.15.

Despite two additional gears and the maximum torque up to 1000 Nm, 9G-Tronic requires the same amount of space for positioning as its predecessor. Three speed sensors monitor the operation of the gearbox and provide the TCU with relevant information for efficient gear shifting. Three different modes of operation allow the driver to pre-select an appropriate algorithm of gear shifting. It improves driving comfort and reduces the noise level.

The 9G-Tronic transmission has 3 driving modes:

«Comfort» («C») — for driving with low fuel consumption;

«Sport» («S») — for fast driving style at high engine RPM;

«Manual» («M») — for fast driving and manual gear shifting via the system DIRECT SELECT.

According to representatives of Mercedes-Benz, this transmission is suitable for cars with rear and all-wheel drive, as well as for hybrids and E-motors.

  • MERCEDES BENZ C CLASS L4 1.6L 2.0L 2.2L
  • MERCEDES BENZ CLS L4 2.2L V6 3.5L
  • MERCEDES BENZ E-CLASS L4 2.0L 2.2L V6 3.0L 3.5L
  • MERCEDES BENZ E-CLASS COUPE L4 2.2L
  • MERCEDES BENZ GLC L4 1.6L 2.0L 2.2L V6 3.0L 3.5L
  • MERCEDES BENZ GLC COUPE L4 2.0L 2.2L V6 3.0L
  • MERCEDES BENZ GLE COUPE V6 3.0L
  • MERCEDES BENZ S CLASS V6 3.0L 3.5L
