Home / Transmissions / Volkswagen AG / ZF / 5HP19
Volkswagen AG / ZF Source-verified model

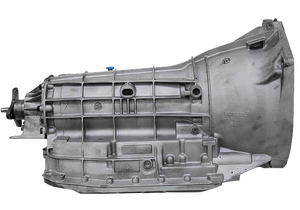

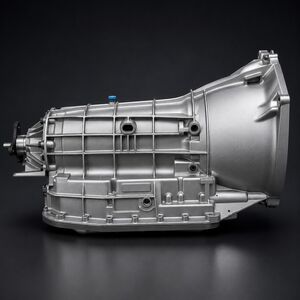

Volkswagen AG / ZF 5HP19 Transmission

The 5-speed automatic transmission ZF5HP19 (with ./FL ../FLA modifications) - is considered to be one of the most popular automatic transmissions in the repair industry. Although this transmission was replaced by no less popular ZF6HP26 - 6HP19, this 5-speed unit is still widely used and repaired.

Speeds 5
Type AT
Drive RWD/AWD/FWD
Max torque 325
ATF capacity (L) 9,7
ATF change (L) 4-5,5
ATF type LT -71141
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
5HP19
8.5/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence8.8
Documentation depth10.0
Knowledge & support7.5

Exploded diagram & parts

Full 5HP19 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 699 699 · No. 2 034 034 · No. 3 311 311 · No. 4 530 530 · No. 5 530 530 · No. 6 544 544 · No. 7 520 520 · No. 8 381 381 · No. 9 036 036 · No. 10 529 529 · No. 11 179 179 · No. 12 181 181 · No. 13 037 037 · No. 14 210 210 · No. 15 211* 211* · No. 16 552 552 · No. 17 333 333 · No. 18 332 332 · No. 19 962 962 · No. 20 972 972 · No. 21 22 22 · No. 22 23 23 · No. 23 982 982 · No. 24 125 125 · No. 25 124/104 124, 104 · No. 26 144 144 · No. 27 873* 873* · No. 28 556 556 · No. 29 336/337 336, 337 · No. 30 966 966 · No. 31 976 976 · No. 32 33 33 · No. 33 34 34 · No. 34 986 986 · No. 35 131 131 · No. 36 130/110 130, 110 · No. 37 150 150 · No. 38 892* 892* · No. 39 229 229 · No. 40 881 881 · No. 41 554 554 · No. 42 334/335 334, 335 · No. 43 964 964 · No. 44 974 974 · No. 45 984 984 · No. 46 334B/129 334B, 129 · No. 47 128/108 128, 108 · No. 48 148 148 · No. 49 380 380 · No. 50 876* 876* · No. 51 550 550 · No. 52 038 038 · No. 53 330/331 330, 331 · No. 54 960 960 · No. 55 382 +2 382, 862, 970 · No. 56 120/121 120, 121 · No. 57 120/100 120, 100 · No. 58 140 140 · No. 59 861* 861* · No. 60 570 570 · No. 61 216/217 216, 217 · No. 62 217 217 · No. 63 217/218 217, 218 · No. 64 050 050 · No. 65 574 574 · No. 66 050 050 · No. 67 235 235 · No. 68 624 624 · No. 69 051 051 · No. 70 584 584 · No. 71 250 250 · No. 72 251 251 · No. 73 251/252 251, 252 · No. 74 594 594 · No. 75 674 674 · No. 76 889 889 · No. 77 253 253 · No. 78 254 254 · No. 79 255 255 · No. 80 626 626 · No. 81 885* 885* · No. 82 154 154 · No. 83 134/114 134, 114 · No. 84 135 135 · No. 85 044 044 · No. 86 178 178 · No. 87 664 664 · No. 88 185 185 · No. 89 044 044 · No. 90 658 658 · No. 91 644 644 · No. 92 760 760 · No. 93 266 266 · No. 94 795 795 · No. 95 897 897 · No. 96 272-1 272-1 · No. 97 271 271 · No. 98 272 272 · No. 99 271 271 · No. 100 272-1 272-1 · No. 101 770/348 770, 348 · No. 102 074 074 · No. 103 841 841 · No. 104 987 987 · No. 105 977 977 · No. 106 967 967 · No. 107 338/339 338, 339 · No. 108 558 558 · No. 109 340/341 340, 341 · No. 110 968 968 · No. 111 978 978 · No. 112 988 988 · No. 113 871 871 · No. 114 136B 136B · No. 115 136/116 136, 116 · No. 116 156 156 · No. 117 870* 870* · No. 118 233 233 · No. 119 551 551 · No. 120 540-1 540-1 · No. 121 493 493 · No. 122 446 446 · No. 123 788 788 · No. 124 788 788 · No. 125 788 788 · No. 126 540-3 540-3 · No. 127 436 436 · No. 128 437 437 · No. 129 843 843 · No. 130 328/329 328, 329 · No. 131 961 961 · No. 132 546 546 · No. 133 971 971 · No. 134 981 981 · No. 135 136 136 · No. 136 123 123 · No. 137 102/122 102, 122 · No. 138 864* 864* · No. 139 219 219 · No. 140 220 220 · No. 141 221 221 · No. 142 868 868 · No. 143 039 039 · No. 144 600 600 · No. 145 590 590 · No. 146 222 222 · No. 147 223 223 · No. 148 224 224 · No. 149 314 314 · No. 150 540-7 540-7 · No. 151 314 314 · No. 152 540-2 540-2 · No. 153 314 314 · No. 154 540-7 540-7 · No. 155 314 314 · No. 156 410 410 · No. 157 431/740 431, 740 · No. 158 435 +3 435, 422, 423, 421 · No. 159 782 782 · No. 160 010 010 · No. 161 580 580 · No. 162 225 225 · No. 163 226 226 · No. 164 227 227 · No. 165 610 610 · No. 166 263 263 · No. 167 264 264 · No. 168 265 265 · No. 169 685 685 · No. 170 895 895 · No. 171 991-5 991-5 · No. 172 991-3 991-3 · No. 173 991-2 991-2 · No. 174 175 175 · No. 175 793 793 · No. 176 994 994 · No. 177 178 178 · No. 178 179 179 · No. 179 995-1 995-1 · No. 180 794 794 · No. 181 794 794 · No. 182 300/765 300, 765 · No. 183 991-4 991-4 · No. 184 492 492 · No. 185 779 779 · No. 186 070 070 · No. 1 699 699 · No. 2 034 034 · No. 3 311 311 · No. 4 530 530 · No. 5 530 530 · No. 6 544 544 · No. 7 520 520 · No. 8 381 381 · No. 9 036 036 · No. 10 529 529 · No. 11 179 179 · No. 12 181 181 · No. 13 037 037 · No. 14 210 210 · No. 15 211* 211* · No. 16 552 552 · No. 17 333 333 · No. 18 332 332 · No. 19 072 072 · No. 20 410 410 · No. 21 299 299 · No. 22 896 896 · No. 23 345 345 · No. 24 771 771 · No. 25 074 074 · No. 26 841 841 · No. 27 798 798 · No. 28 992 992 · No. 29 30 30 · No. 30 962 962 · No. 31 972 972 · No. 32 982 982 · No. 33 125 125 · No. 34 124/104 124, 104 · No. 35 144 144 · No. 36 873* 873* · No. 37 556 556 · No. 38 336/337 336, 337 · No. 39 966 966 · No. 40 976 976 · No. 41 986 986 · No. 42 131 131 · No. 43 130/110 130, 110 · No. 44 150 150 · No. 45 892* 892* · No. 46 229 229 · No. 47 347 347 · No. 48 290* +13 290*, 288, 289, 343, 716, 724, 720, 758, 292, 076, 291, 293*, 838, 076B · No. 49 698 698 · No. 50 770/305 770, 305 · No. 51 298 298 · No. 52 899 899 · No. 53 708 708 · No. 54 446 446 · No. 55 881 881 · No. 56 554 554 · No. 57 334/335 334, 335 · No. 58 964 964 · No. 59 974 974 · No. 60 984 984 · No. 61 334B 334B · No. 62 129 129 · No. 63 128/108 128, 108 · No. 64 148 148 · No. 65 380 380 · No. 66 876* 876* · No. 67 550 550 · No. 68 038 038 · No. 69 330/331 330, 331 · No. 70 960 960 · No. 71 382/970 382, 970 · No. 72 862 862 · No. 73 719 719 · No. 74 820 820 · No. 75 895 895 · No. 76 897 897 · No. 77 296 296 · No. 78 707 707 · No. 79 898 898 · No. 80 297 297 · No. 81 120/121 120, 121 · No. 82 120/100 120, 100 · No. 83 140 140 · No. 84 861* 861* · No. 85 570 570 · No. 86 216/217 216, 217 · No. 87 217 217 · No. 88 217/218 217, 218 · No. 89 050 050 · No. 90 574 574 · No. 91 050 050 · No. 92 235 235 · No. 93 624 624 · No. 94 051 051 · No. 95 584 584 · No. 96 250 250 · No. 97 251 251 · No. 98 251/252 251, 252 · No. 99 594 594 · No. 100 695 695 · No. 101 760 760 · No. 102 730 730 · No. 103 276* 276* · No. 104 274 274 · No. 105 674/889 674, 889 · No. 106 253 253 · No. 107 254 254 · No. 108 883 883 · No. 109 626 626 · No. 110 885* 885* · No. 111 154 154 · No. 112 134/114 134, 114 · No. 113 135 135 · No. 114 044 044 · No. 115 178 178 · No. 116 664 664 · No. 117 185 185 · No. 118 044 044 · No. 119 644 644 · No. 120 658 658 · No. 121 987 987 · No. 122 977 977 · No. 123 967 967 · No. 124 436 436 · No. 125 696 696 · No. 126 735 735 · No. 127 274 274 · No. 128 796 796 · No. 129 894 894 · No. 130 075 075 · No. 131 685 685 · No. 132 737 737 · No. 133 736 736 · No. 134 277* 277* · No. 135 280 280 · No. 136 281 281 · No. 137 712 712 · No. 138 281 281 · No. 139 280 280 · No. 140 338/339 338, 339 · No. 141 558 558 · No. 142 340/341 340, 341 · No. 143 968 968 · No. 144 978 978 · No. 145 988 988 · No. 146 871 871 · No. 147 136B 136B · No. 148 136/116 136, 116 · No. 149 156 156 · No. 150 870* 870* · No. 151 230 230 · No. 152 863 863 · No. 153 043 043 · No. 154 551 551 · No. 155 328/329 328, 329 · No. 156 838 +2 838, 774, 369 · No. 157 385 385 · No. 158 385 385 · No. 159 385 385 · No. 160 385 385 · No. 161 385 385 · No. 162 748/386 748, 386 · No. 163 386 386 · No. 164 386 386 · No. 165 431 431 · No. 166 999 999 · No. 167 435 435 · No. 168 421 421 · No. 169 284* 284* · No. 170 282 282 · No. 171 283 283 · No. 172 714 714 · No. 173 283 283 · No. 174 282 282 · No. 175 759/304 759, 304 · No. 176 740 740 · No. 177 422 422 · No. 178 435 435 · No. 179 435 435 · No. 180 272* 272* · No. 181 278 278 · No. 182 279 279 · No. 183 080 080 · No. 184 710 710 · No. 185 279 279 · No. 186 278 278 · No. 187 081 081 · No. 188 780 780 · No. 189 961 961 · No. 190 546 546 · No. 191 971 971 · No. 192 981 981 · No. 193 123 123 · No. 194 102/122 102, 122 · No. 195 864* 864* · No. 196 219 219 · No. 197 220 220 · No. 198 221 221 · No. 199 868 868 · No. 200 039 039 · No. 201 600/590 600, 590 · No. 202 222 222 · No. 203 223 223 · No. 204 224 224 · No. 205 580 580 · No. 206 225 225 · No. 207 226 226 · No. 208 227 227 · No. 209 610 610 · No. 210 263 263 · No. 211 264 264 · No. 212 300/765 300, 765 · No. 213 010 010 · No. 214 423 423 · No. 215 991-2 991-2 · No. 216 991-4/991-3 991-4, 991-3 · No. 217 994 994 · No. 218 219 219 · No. 219 995-1 995-1 · No. 220 995-2 995-2 · No. 221 507 507 · No. 222 062 062 · No. 223

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 5HP19 in the Go4Trans marketplace.
Sell 5HP19 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

79 applications · 6 makes · 1985–2016 BMW 34 · Audi 21 · Porsche 13 · Volkswagen 8 · Skoda 2

Make Model Year Drive Engine
Audi A4 2003-2007 5 Spd FWD L4 1.8L V6 3.0L
Audi A4 1996-2007 5 Spd FWD L4 1.8L V6 2.8L/ 3.0L
Audi A4 1996-2002 5 Spd FWD L4 1.8L V6 2.8L/ 3.0L
Audi A4 1995-2004 2.4, 2.6, 2.8
Audi A4 Avant 1998-2005 5 Spd AWD L4 1.8L; V6 2.8L 3.0L
Audi A4 CABRIOLET 1996-2002 5 Spd F/AWD L4 1.8 V6 2.4/2.5/3.0L
Audi A4 Quattro Avant 1998-2006 1.8, 2.8, 3.0
Audi A4, Cabriolet, Quattro 2003-2007 5 Spd AWD L4 1.8L; V6 3.0L
Audi A6 1997-2004 5 Spd FWD V6 2.8L 3.0L 2.7L V84.2L
Audi A6 Quattro,A6 Allroad 1998-2004 5 Spd AWD V6 2.8L 3.0L 2.7L
Audi A6 Quattro,A6 Allroad 1998-2004 5 Spd AWD V8 4.2L
Audi A8 1997-2003 5 Spd FWD V8 3.7/4.2L
Audi A8 Quattro 1995 5 Spd AWD V6 2.5L 2.8L 3.7L
Audi ALL ROAD QUATTRO 2002-2005 5 Spd AWD V6 2.7L TURBO/ V8 4.2L
Audi Allroad Quattro 2002-2005 5 Spd AWD V6 2.7L; V8 4.2L
Audi Allroad Quattro 2002-2005 2.7L, 4.2L
Audi S4 2000-2002 5 Spd AWD V6 2.7L
Audi S4 1997-2002 2.7
Audi S4, Avant 2001-2002 5 Spd AWD V6 2.7L; V8 4.2L
Audi S6 Avant, RS6 2004-2006 5 Spd AWD V8 4.2L
Audi S6/RS6 2003-2006 5 Spd AWD V8 4.2L
BMW 3 Series 1997-2004 1.6, 1.8, 1.9, 2.0, 2.5, 2.8, 3.0
BMW 3 Series (E46) 1997-2003 5 Spd RWD L6 2.5L
BMW 320i 2001-2005 2.2
BMW 325i 2003-2005 5 Spd RWD M56 engine
BMW 325i 5 Spd RWD M54 engine
BMW 325i 5 Spd RWD/AWD M54 engine
BMW 325xi/xiT 2001-2005 5 Spd RWD E46
BMW 328i/ci 1999-2000 5 Spd RWD L6 2.8L
BMW 330i,330ci 5 Spd RWD L6 3.0L
BMW 330xi 2001-2005 5 Spd RWD E46
BMW 5 Series 1997-2004 2.5, 2.8, 3.0
BMW 5 Series (E39) 1997-2003 5 Spd RWD L6 2.5L
BMW 524td 1985-1986 2.4
BMW 525i 2004 5 Spd RWD L6 2.5L
BMW 525i 2001-2003 5 Spd RWD L6 2.5L 3.0L
BMW 525i 1989-1990 2.5
BMW 525i, 525xi 2004-2006 6 Spd RWD L6 2.5L 3.0L
BMW 528i 2000 5 Spd RWD L6 2.8L
BMW 530i 2001-2003 5 Spd RWD L6 2.5L 3.0L
BMW 530i 1994-1995 3.0
BMW 530i, 530xi 2004-2006 5 Spd RWD L6 2.5L 3.0L
BMW 7 Series (E38) 1997-2003 5 Spd RWD V8 4.4L
BMW SÉRIE 3 1999-2016 5 Spd RWD L4 2.0L L6 2.2/2.5/3.0L
BMW SÉRIE 5 2002-2003 5 Spd RWD L6 2.5L
BMW X3 2004-2007 5 Spd AWD L6 2.5L/2.9L/3.0L
BMW X3 2004-2006 5 Spd RWD/AWD L6 2.5L 3.0L
BMW X5 2004-2005 5 Spd RWD/AWD L6 3.0L
BMW X5 2000-2003 5 Spd RWD/AWD L6 3.0L
BMW X5 2000-2003 5 Spd AWD L6 3.0L
BMW Z3 ROADSTER 2000-2002 5 Spd R/AWD L6 2.5L/2.8/3.0/3.2L
BMW Z3, Z3 Roadster 2001-2002 5 Spd RWD L6 2.5L/3.0L
BMW Z4 Roadster 2003-2006 5 Spd RWD L6 2.5L/3.0L
BMW Z4 ROADSTER 2002-2005 5 Spd RWD L6 2.2L/2.5L/3.0L
BMW Z4 Roadster 2002-2003 5 Spd RWD L6 2.5L/3.0L
Jaguar S Type 2001-2003 5 Spd RWD V6 2.5L/3.0L
Porsche 911 2000-2002 5 Spd R/AWD V6 3.4L/3.6L
Porsche 911 1998-2005 3.4, 3.6
Porsche 911 Carrera (996) 5 Spd 2WD 3.4L
Porsche 911 Carrera 4 & 4S (996) 1998-2004 5 Spd AWD 3.4L
Porsche 911 Targa (996) 2002-2003 5 Spd 2WD 3.4L
Porsche 986 / Boxster 1996-2009 2.5, 2.7, 2.9, 3.2, 3.4
Porsche 996 1998-2005 3.4, 3.6
Porsche BOXSTER 2000-2008 5 Spd R/AWD V6 2.5/2.7/3.2/3.4L
Porsche Boxter (986) 5 Spd 2WD 2.5L
Porsche Boxter S (986S) 1999-2003 5 Spd 2WD 3.2L
Porsche Cayman 2007-2009 2.7, 2.9
Porsche CAYMAN 2005-2008 5 Spd R/AWD V6 2.7/3.4L
Porsche Cayman S 2006-2009 3.4
Skoda Superb 2002-2008 5 Spd F/AWD L4 1.8L V6 2.8L
Skoda Superb 2002-2008 5 Spd F/AWD L4 1.9L V6 2.5/2.8L
Volkswagen Passat 2002-2004 5 Spd AWD V8 4.0L
Volkswagen Passat 1998-2005 5 Spd FWD L4 1.8L 2.0L; V6 2.8L
Volkswagen Passat 1998-2005 5 Spd FWD 2.5 Tdi
Volkswagen PASSAT 1998-2005 5 Spd FWD/AWD L4 1.8L V6 2.8L V8 4.0L
Volkswagen Passat 1998-2005 4.0
Volkswagen PHAETON 2001-2016 5 Spd AWD V6 3.2L/3.6L
Volkswagen PHAETON 2001-2016 5 Spd AWD W12 6.0L
Volkswagen PHAETON 2001-2004 5 Spd AWD W12 6.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

ZF5HP19FL
01V
ZF 5HP19FL
ECD
ETY
EYK
FNM
ETX
EMM
FEF
DRN
DEW
FAM
EYJ
FEQ
DEY
FAP
FAZ
5HP19FLA
FRU
GBG
1060 040
5HP19 FLA
DRK
DEX
FAX
GAK
FVE
CJT
EZB
ECH
EUA
FAR
1060040
ETN
ECC
FAU
GBH
DPT
DEV
CJR
FAW
FBB
FEG
DST
ECB
EDF
ETM
FAS
FBA
FEJ
FAV
FEP
GBJ
FXL
GBF
FLV
ECG
1060.040
CJS
5HP19
1060000
1060.000
5 HP 19
5-HP-19
1060 000
FAK
A87.02
CJQ
EBU
A86.20
EEK
ETZ
EZS
FED
CJZ
CJY
EBW
DRD
FEV
DEP
A86.00
FRT
DXU
DSS
EFR
ETL
DUM
DUL
FAE
FAF
DRF
GMR
A87.21
FNL
GDE
FAJ
EYF
ETU
FEE
1060030
DES
EZZ
EZY
ETV
EZR
1060 030
DEU
EBZ
EBX
EMA
ECJ
FAD
CJX
ERY
A87.20
EZW
5HP19 FL
DEQ
EBV
FAB
EDE
GML
DPS
ETK
FHV
FAH
A86.05
A87.01
EBY
EMK
DSJ
EZX
5HP19FL
1060.030
1060 060
A96.30
1060.060
1060060
5HP19 HLA
5HP19HLA
5HP19HL
1060 050
1060050
1060.050
5HP19 HL
A96.00
A5S-325Z
A5S 325Z
ZF 5HP19
A5S325Z
ZF5HP19
ZF5HP19FLA
ZF 5HP19FLA
ZF 5HP19HL
ZF5HP19HL
ZF 5HP19HLA
ZF5HP19HLA
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Friction Lining
Early forced lock-up at 3rd speed damages friction lining; one of most frequently repaired units.
!
Pump Cover Bushing Wear
Pump cover bushing is one of the most frequently replaced elements in this transmission.
!
First C Package Friction Discs
Friction discs of the first C package near the pump require replacement in most repair cases.
!
Sealing Rings Wear-Out
Worn sealing rings cause burning of friction packages; always replaced alongside friction discs.
?
Friction Package Burning
Worn sealing rings lead to oil pressure loss, causing friction packages to burn prematurely.
!
Oil Starvation Transmission Damage
Oil starvation negatively impacts overall transmission operability despite its otherwise durable design.
!
EDS-1 EPC Pressure Solenoid
Pressure solenoid is loaded more than others, causing it to exhaust its resource earlier.
!
General Transmission Overhaul Threshold
Transmission requires first overhaul after significantly more than 120,000 miles depending on conditions.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic transmission ZF5HP19 (with ./FL ../FLA modifications) - is considered to be one of the most popular automatic transmissions in the repair industry. Although this transmission was replaced by no less popular ZF6HP26 - 6HP19, this 5-speed unit is still widely used and repaired.

It should be noted that the popularity of this transmission among repair specialists has nothing to do with its quality, on the contrary, this efficient transmission was installed on extremely durable cars. It is the case when good cars get a good transmission. First 5HP19 units were introduced in 1995 on front-wheel and all-wheel drive Audi. These gear shifting solutions were designed on the basis of 4-speed 4HP18 and 5-speed 5HP18 (thus, most of components in these transmissions are identical). The main peculiarity of 5HP19 is higher torque in comparison with 5HP18 and that it can be paired with engines up to 4 litres. The FL version of this transmission was designed for the line-up of FWD models from Audi-Volkswagen. The 5HP19FLA transmission is designed for 4WD cars with V6 engines. The 5HP19 unit found application in rear-driven BMW cars. According to VAG classification, ZF 5HP19 transmission is also known as 01L or 01V (for some vehicles).

Technical issues and repair guidelines

The repair kit of gaskets and seals for BMW is the most popular kit ordered for this transmission. The kit of frictions is also included in a standard order for this transmission.

The operational resource of this transmission before the first overhaul is significantly higher than standard 120,000 miles, but this parameter heavily depends on operating conditions. This reliable transmission can endure operation under severe conditions and heavy loads, but oil starvation will have a negative impact on its operability.

The torque converter of this transmission is one of the most frequently repaired units. This torque converter is one of the first converters with early introduced ( 3-rd speed) forced lock-up mechanism, which damages the friction lining. The pump cover bushing is one of the most frequently replaced elements.

As for friction discs in the 5HP19 transmission, in most cases repair specialists have to replace discs of the first "C" package near the pump. The replacement of friction components is always accompanied by replacement of sealing rings as the wear-out of these rings leads to burning of friction packages.

The pressure solenoid (EDS-1 EPC) is loaded more in comparison with solenoids, therefore it works out its resource earlier.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
E46 ZF 5HP19 Transmission Rebuild Part 1 BMW 330i 325i DIY
50sKid
video
E46 ZF 5HP19 Transmission Rebuild Part 2 BMW 330i 325i DIY
50sKid
video
ZF5HP19 Teardown
Gary Ferraro
video
ZF5HP19 Gear Monitoring Codes
Gary Ferraro
video
ZF5HP19 Valvebody
Gary Ferraro
video
ZF 5HP19 valve body additional information
Jeff Richardson
manual
Sonnax — ZF5HP19 Solenoid Identification
—
