Subaru 5EAT Transmission

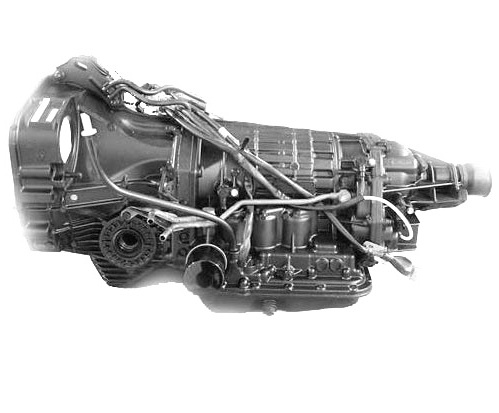

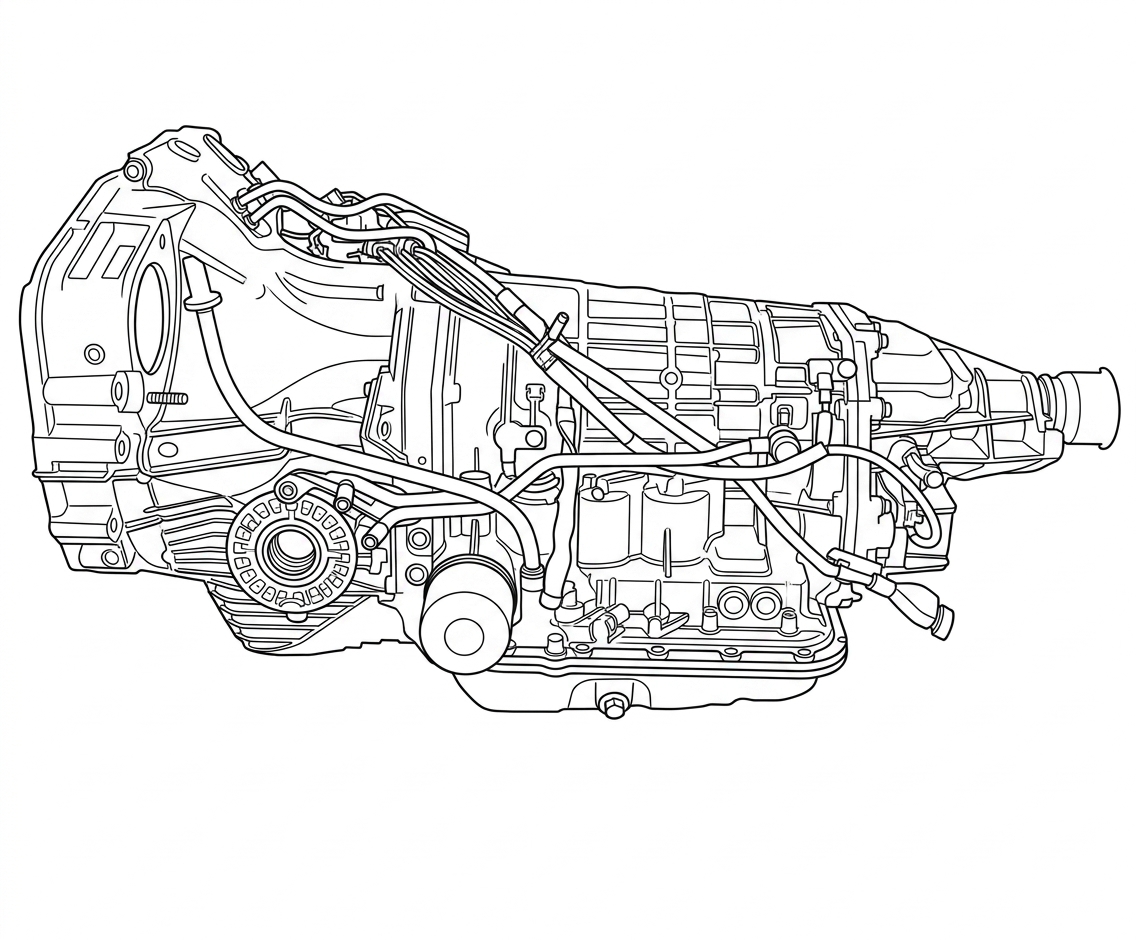

The 5-speed RWD transmission 5EAT was designed in 2003 by Jatco on commission from Subaru for popular models Tribeca, Impreza, Outback, Legacy on a constructive basis of Jatco JR507E , reengineered for the engine room of Subaru.

Speeds 5
Type AT
Drive AWD
Max torque 350
ATF capacity (L) 10
ATF change (L) 5,6
ATF type Subaru ATF HP
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
5EAT
5.7/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence3.0
Documentation depth10.0
Knowledge & support5.8

Exploded diagram & parts

Full 5EAT parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 031 031 · No. 2 750 750 · No. 3 493-1 493-1 · No. 4 862 862 · No. 5 671 671 · No. 6 381 381 · No. 7 381-1 381-1 · No. 8 034 034 · No. 9 034 034 · No. 10 510 510 · No. 11 311 311 · No. 12 530 530 · No. 13 035 035 · No. 14 511 511 · No. 15 209 209 · No. 16 326/327 326, 327 · No. 17 961 961 · No. 18 19 19 · No. 19 981 981 · No. 20 122/102 122, 102 · No. 21 142 142 · No. 22 864 864 · No. 23 211 211 · No. 24 219 219 · No. 25 656 656 · No. 26 27 27 · No. 27 040 040 · No. 28 29 29 · No. 29 214 214 · No. 30 580 580 · No. 31 215 215 · No. 32 217 217 · No. 33 492-1 492-1 · No. 34 786 786 · No. 35 715 +7 715, 292, 720, 291, 343, 725, 727, 076 · No. 36 075 075 · No. 37 075 075 · No. 38 727 727 · No. 39 730 730 · No. 40 375 375 · No. 41 274 274 · No. 42 787 787 · No. 43 735 735 · No. 44 277 277 · No. 45 274 274 · No. 46 237 237 · No. 47 797 797 · No. 48 552 552 · No. 49 177 177 · No. 50 047 047 · No. 51 332/333 332, 333 · No. 52 972/962 972, 962 · No. 53 982 982 · No. 54 874 874 · No. 55 124/104 124, 104 · No. 56 144* 144* · No. 57 873 873 · No. 58 59 59 · No. 59 594 594 · No. 60 232 232 · No. 61 582 582 · No. 62 238 238 · No. 63 239 239 · No. 64 881 881 · No. 65 592 592 · No. 66 584 584 · No. 67 052 052 · No. 68 612 612 · No. 69 183 183 · No. 70 052B 052B · No. 71 251 251 · No. 72 056 056 · No. 73 614 614 · No. 74 658 658 · No. 75 286 286 · No. 76 888/248 888, 248 · No. 77 577 577 · No. 78 882 882 · No. 79 256 256 · No. 80 257 257 · No. 81 258 258 · No. 82 885 885 · No. 83 154 154 · No. 84 134/114 134, 114 · No. 85 886 886 · No. 86 987 987 · No. 87 328/977 328, 977 · No. 88 967 967 · No. 89 329 329 · No. 90 557 557 · No. 91 260 260 · No. 92 146/878 146, 878 · No. 93 126/106 126, 106 · No. 94 879 879 · No. 95 985 985 · No. 96 975 975 · No. 97 336 336 · No. 98 965 965 · No. 99 337/337-1 337, 337-1 · No. 100 555 555 · No. 101 892 892 · No. 102 150 150 · No. 103 130/110 130, 110 · No. 104 857 857 · No. 105 891 891 · No. 106 986 986 · No. 107 976 976 · No. 108 966 966 · No. 109 338/339 338, 339 · No. 110 229 229 · No. 111 883 883 · No. 112 179 179 · No. 113 233*/632 233*, 632 · No. 114 148 148 · No. 115 128 +2 128, 853, 108 · No. 116 226 226 · No. 117 890 890 · No. 118 776 776 · No. 119 639 639 · No. 120 783 783 · No. 121 783 783 · No. 122 783 783 · No. 123 654/285 654, 285 · No. 124 665 665 · No. 125 890/234* 890, 234* · No. 126 579 579 · No. 127 235 235 · No. 128 236 236 · No. 129 152* 152* · No. 130 132/112 132, 112 · No. 131 871 871 · No. 132 989 989 · No. 133 979 979 · No. 134 969 969 · No. 135 340/341 340, 341 · No. 136 559 559 · No. 137 334/335 334, 335 · No. 138 064 064 · No. 139 064 064 · No. 140 263 +2 263, 262, 894 · No. 141 894 894 · No. 142 674 674 · No. 143 062 062 · No. 144 889 889 · No. 145 267 267 · No. 146 158 158 · No. 147 138 +2 138, 159, 118 · No. 148 268 268 · No. 149 678 678 · No. 150 269 269 · No. 151 578 578 · No. 152 270 270 · No. 153 847 847 · No. 154 271/548 271, 548 · No. 155 992 992 · No. 156 991-2 991-2 · No. 157 991-3 991-3 · No. 158 996 996 · No. 159 996-3 996-3 · No. 160 438 438 · No. 161 996-1 996-1 · No. 162 370 370 · No. 163 436 +2 436, 760, 318 · No. 164 276 276 · No. 165 897 897 · No. 166 281 281 · No. 167 712 712 · No. 168 895 895 · No. 169 895 895 · No. 170 282 282 · No. 171 283 283 · No. 172 445 445 · No. 173 994 994 · No. 174 991-6 991-6 · No. 175 995-1 995-1 · No. 176 995-2 995-2 · No. 177 995-3 995-3 · No. 178 423 423 · No. 179 996-2 996-2 · No. 180 428/425 428, 425 · No. 181 433 433 · No. 182 432 432 · No. 183 442 442 · No. 184 421 421 · No. 185 422 422 · No. 186 450 450 · No. 187 996-6 996-6 · No. 188 010 010 · No. 189 877 877 · No. 190 988 988 · No. 191 978 978 · No. 192 978-2 978-2 · No. 193 272 272 · No. 194 968 968 · No. 195 330 330 · No. 196 331 331 · No. 197 066 066 · No. 198 074 074 · No. 199 493 493 · No. 200 446 446 · No. 201 740 740 · No. 202 793 +2 793, 300, 765 · No. 203 317 +3 317, 770, 771, 305 · No. 204 494 494 · No. 205 782 782 · No. 206 492 492 · No. 207 790 790 · No. 208

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 5EAT in the Go4Trans marketplace.
Sell 5EAT parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

13 applications · 1 make · 2005–2016 Subaru 13

Make Model Year Drive Engine
Subaru B9 Tribeca 2006-2007 5 Spd AWD H6. 3.0L
Subaru B9 Tribeca 2005-2013 3.0, 3.6
Subaru EXIGA 2008-2016 5 Spd F/AWD H4 2.0L
Subaru Impreza 2011-2013 5 Spd AWD H4 2.0L/2.5L
Subaru Impreza 2005-2011 2.5
Subaru Legacy 2005-2012 5 Spd AWD H4 2.0/2.5L H6 3.0/3.6L
Subaru Legacy 2005-2010 3.0, 3.6
Subaru Legacy GT 2005-2007 5 Spd AWD H4 2.5L V6 3.0L
Subaru Outback 2005-2013 3.0, 3.6
Subaru Outback 2005-2012 5 Spd AWD H4 2.5L H6 3.0/3.6L
Subaru Outback 2.5XT/3.0R 2005-2007 5 Spd AWD H4 2.5L H6 3.0L
Subaru Tribeca 2006-2014 5 Spd AWD H6 3.0L/3.6L
Subaru Tribeca 2006-2014 3.0, 3.6

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

5EAT
TG5C7
TG5D9
TG5D7
TG5D8
5EAT TG5C
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Lock-Up Friction
Lock-up slipping causes rapid ATF contamination and friction lock-up damage, similar to DSG operation.
!
Solenoid Wear and Clogging
Solenoids wear out due to contaminated fluid; Direct package solenoid most affected due to intensive operation.
!
Valve Body Clogging
Valve body gets clogged as a downstream consequence of fluid contamination from lock-up slipping.
?
Improper Gear Shifting
Caused by solenoid spool burn-out or mechanical wear of valve components; flagged by computer error codes.
!
Sun Gear Shaft Failure
Interaxle planetary gear sun gear shaft prone to failure specifically on vehicles with engines over 3.0L.
!
Metal Grit in Pan
Metal debris accumulates in the oil pan indicating internal wear; inspection required at 120-150k km.
!
Speed Sensor Overheating and Clogging
Speed sensor overheats and clogs with dirt and metal chips originating from torque converter wear.
!
Pump Bushing and Seal Failure
Oil pump bushing and seal are identified soft spots prone to wear requiring replacement during overhaul.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed RWD transmission 5EAT was designed in 2003 by Jatco on commission from Subaru for popular models Tribeca, Impreza, Outback, Legacy on a constructive basis of Jatco JR507E , reengineered for the engine room of Subaru.

Since 2005, the 5EAT unit has been operating on LEGACY model equipped with engines having the capacity from 2 to 3.6 liters. Later this transmission was paired with 3-liter engines H6 on American models of Tribeca and Outback. The Impreza model for the Japanese market was also equipped with this transmission.

Technical issues and repair guidelines

This transmission allows accelerating as DSG by means of the torque converter lock-up slipping, leading to rapid fluid contamination and resulting in damage of the friction lock-up. Consequently solenoids wear out and the valve body gets clogged.Therefore, manufacturers of automatic transmissions assume that it is better to change the fluid with filter after covering 80 thousand kilometers (depending on the driving style) and change it the next time when oil transparency is not good enough. After 120-150 thousand kilometers, it is necessary to check for the presence of metal grit in the pan.

Oil change and first overhauls usually require order of the plastic filter with felt "accordion" connection.Specialists install the external main filter sequentially to metal coarse mesh filter. The filter is located outside of the transmission and access to it is maximally facilitated. The main filter helps to keep the oil clean and reduces the wear of the friction components and aging of solenoids. These measures are recommended for all old transmissions, which have a regular filter with a metal mesh.The repair kit of gaskets and seals/Overhaul kit is usually ordered with the kit of friction components.

There are two types of solenoids which are usually get replaced: solenoid in the Direct package (this solenoid operates more intensively than others) and solenoid of the second type with a cover plate, and the problem is specified by the computer error (The problem may lie in the spooling burn-out resulting in improper gear shifting or wear-out of the valve mechanical part.). The list of typical problems in the 5EAT unit also includes solenoids and the speed sensor overheating and clogging with dirt and metal chips from the torque converter.

The list of soft spots for this transmission also include:

-Pump with bushing and seal.

- Shaft with a sun gear of an interaxle planetary gear for vehicles with engine capacity over 3-liters.

The design of the 5EAT unit is similar to the construction of Jatco’s RE5R05. Many spare parts in these transmission units are interchangeable. But the valve body and solenoids are different.
