Volkswagen AG 09G Transmission

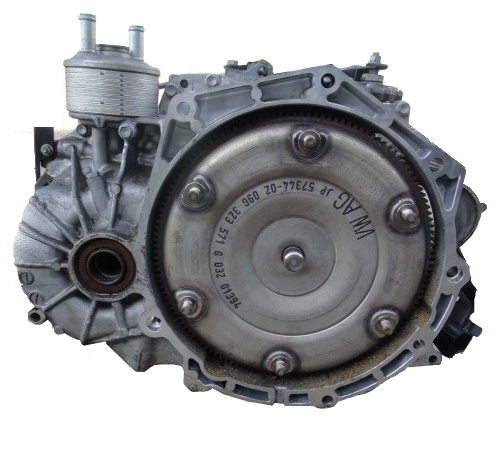

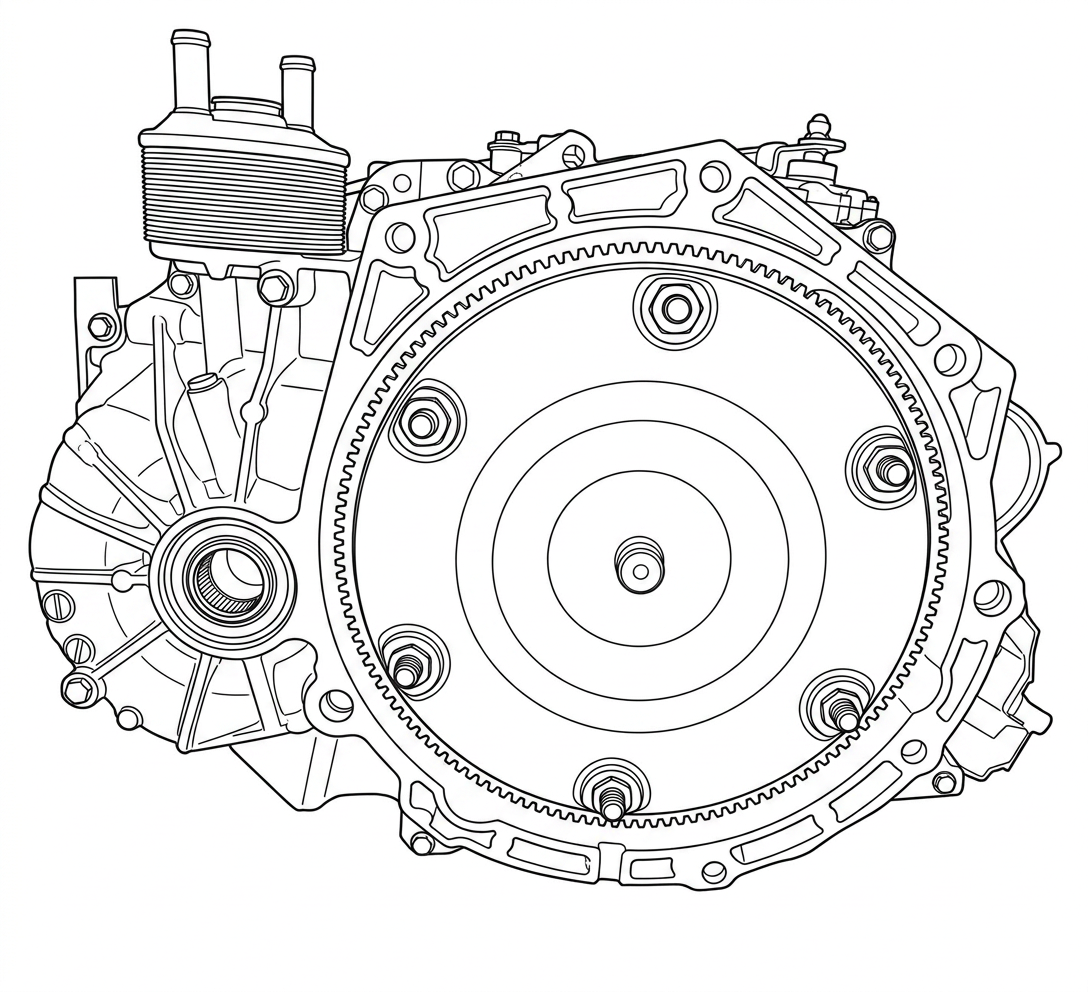

The 09G (TF60-SN - according to Aisin Co classification) is the first 6-speed transmission which has been used since 2003 for virtually all FWD cars of Volkswagen and Audi family (A3, A4 and TT) with engine capacity from 1.4 up to 2.0 liters (Mini Cooper, Skoda Fabia, Polo)

Speeds 6
Type AT
Drive FWD
Max torque 280
ATF capacity (L) 7
ATF change (L) 4
ATF type G 052 025 A2
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
09G
8.3/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence7.8
Documentation depth10.0
Knowledge & support8.6

Exploded diagram & parts

Full 09G parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

998 998 · No. 1 378 378 · No. 2 076 076 · No. 3 280 280 · No. 4 281 281 · No. 5 730 730 · No. 6 712 712 · No. 7 274 274 · No. 8 273 273 · No. 9 276* 276* · No. 10 689 689 · No. 11 750 750 · No. 12 070 070 · No. 13 311 311 · No. 14 034 034 · No. 15 510 510 · No. 16 530 530 · No. 17 530 530 · No. 18 036 036 · No. 19 520179 520179 · No. 20 520179 520179 · No. 21 778 778 · No. 22 310 310 · No. 23 330/331 330, 331 · No. 24 960 960 · No. 25 970 970 · No. 26 546 546 · No. 27 862 862 · No. 28 991-4 991-4 · No. 29 776 776 · No. 30 777 777 · No. 31 291 291 · No. 32 698 698 · No. 33 388 388 · No. 34 292 292 · No. 35 716 716 · No. 36 388-1 388-1 · No. 37 720 720 · No. 38 288 288 · No. 39 289 289 · No. 40 290* 290* · No. 41 991 991 · No. 42 786 786 · No. 43 850 850 · No. 44 141 141 · No. 45 120/100 120, 100 · No. 46 140 140 · No. 47 555 555 · No. 48 046/337 046, 337 · No. 49 336 336 · No. 50 965 965 · No. 51 975 975 · No. 52 985 985 · No. 53 879 879 · No. 54 106/126 106, 126 · No. 55 146 146 · No. 56 878 878 · No. 57 612 612 · No. 58 230 230 · No. 59 582 582 · No. 60 072 072 · No. 61 554 554 · No. 62 232/231 232, 231 · No. 63 181 181 · No. 64 064 064 · No. 65 886 886 · No. 66 977 977 · No. 67 967 967 · No. 68 338 338 · No. 69 339 339 · No. 70 760 760 · No. 71 077 077 · No. 72 238 238 · No. 73 241 241 · No. 74 242 242 · No. 75 592 592 · No. 76 243 243 · No. 77 244 244 · No. 78 873 873 · No. 79 144 144 · No. 80 124/104 124, 104 · No. 81 874 874 · No. 82 982 982 · No. 83 972 972 · No. 84 962 962 · No. 85 332 332 · No. 86 333 333 · No. 87 219 219 · No. 88 552 552 · No. 89 220 220 · No. 90 221 221 · No. 91 624/861 624, 861 · No. 92 622 622 · No. 93 436 436 · No. 94 999 999 · No. 95 926 926 · No. 96 927 927 · No. 97 632 632 · No. 98 278-1 278-1 · No. 99 279 279 · No. 100 278 278 · No. 101 710 710 · No. 102 278 278 · No. 103 279 279 · No. 104 278-1 278-1 · No. 105 898 898 · No. 106 277 277 · No. 107 795 795 · No. 108 889 889 · No. 109 604 604 · No. 110 594 594 · No. 111 887 887 · No. 112 644 644 · No. 113 887 887 · No. 114 254 254 · No. 115 058 058 · No. 116 584 584 · No. 117 057 057 · No. 118 250 250 · No. 119 251/252 251, 252 · No. 120 252 252 · No. 121 252/253 252, 253 · No. 122 994-3 994-3 · No. 123 994-6 994-6 · No. 124 995-1 995-1 · No. 125 995-2 995-2 · No. 126 994-5 994-5 · No. 127 994-2 994-2 · No. 128 995-6 995-6 · No. 129 995-3 995-3 · No. 130 438 438 · No. 131 999 999 · No. 132 428 +4 428, 425, 427, 440, 423 · No. 133 740 740 · No. 134 422 422 · No. 135 421 421 · No. 136 991-3 991-3 · No. 137 991-2 991-2 · No. 138 994 994 · No. 139 446-1 446-1 · No. 140 843-2 843-2 · No. 141 843-1 843-1 · No. 142 010 010 · No. 143 056 056 · No. 144 614 614 · No. 145 056 056 · No. 146 246/247 246, 247 · No. 147 247 247 · No. 148 247/248 247, 248 · No. 149 114/134 114, 134 · No. 150 155 155 · No. 151 876 876 · No. 152 148 148 · No. 153 128/108 128, 108 · No. 154 877 877 · No. 155 984 984 · No. 156 974 974 · No. 157 974-1 974-1 · No. 158 964 964 · No. 159 334/335 334, 335 · No. 160 335 335 · No. 161 446 446 · No. 162 300/765 300, 765 · No. 163 779 779 · No. 164

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 09G in the Go4Trans marketplace.
Sell 09G parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

62 applications · 7 makes · 1997–2018 Volkswagen 37 · Audi 10 · Mini 6 · Skoda 4 · Seat 3

Make Model Year Drive Engine
Audi A3 2015-2018 6 Spd FWD L4 1.4L
Audi A3 2006-2016 2.0
Audi A3 2003-2006 6 Spd FWD/AWD L4 2.0L V6 3.2L
Audi A4 2006-2010 2.0
Audi A4 2005-2007 6 Spd FWD L4 2.0L V6 3.2L
Audi Q3 2015-2017 2.0
Audi S4, Avant 2004-2006 6 Spd AWD V8 4.2L
Audi TT 2003-2006 6 Spd FWD L4 1.8L; V6 3.0L
Audi TT 2003-2006 6 Spd FWD/AWD L4 1.8L
Audi TT 2000-2010 1.8, 2.0, 3.0, 3.2
BMW MINI COOPER 2002-2006 6 Spd FWD L4 1.6L
Mini CLUB VAN 2013-2014 6 Spd FWD L4 2.0L
Mini Clubman 2006-2012 6 Spd FWD L4 1.6L
Mini Cooper 2005-2013 1.6
Mini MINI 2005-2012 6 Spd FWD L4 1.6L
Mini Mini Cooper S 2006-2007 6 Spd FWD L4 1.6L
Mini PACEMAN 2013-2014 6 Spd FWD L4 1.6/2.0L
Saab 9'3 2009-2012 6 Spd FWD L4 2.0L
Seat Altea 2004-2009 1.9, 2.0
Seat Leon 2005-2012 1.4, 2.0
Seat Toledo 2005-2008 2.0
Skoda Fabia 2006 6 Spd FWD 1.6L
Skoda Octavia 2004-2012 1.4, 1.6, 1.8, 2.0
Skoda Rapid/Spaceback 2013-2016 6 Spd FWD L4 1.6L
Skoda Superb 2009-2012 6 Spd F/AWD L4 2.0L V6 3.6L
Volkswagen Beetle 2004-2015 1.8, 1.9, 2.0, 2.5
Volkswagen Beetle 2003-2014 6 Spd FWD 2.5L L4 1.8L/2.0L 1.9 DIE
Volkswagen Bora 2008-2012 6 Spd FWD L4 1.6/2.0L
Volkswagen CC 2010-2013 3.6
Volkswagen CC 2009-2016 2.0, 3.6
Volkswagen Eos 2007-2008 3.2
Volkswagen Eos 2007 6 SPD FWD L4 2.0L V6 3.2L
Volkswagen GLI 2007-2009 2.0
Volkswagen Golf 2007-2016 6 Spd FWD L4 1.6/1.8/2.0L L5 2.5L
Volkswagen Golf 2007-2011 6 Spd FWD L4 2.0L
Volkswagen Golf 2006-2013 2.5
Volkswagen Golf 2006-2007 6 Spd FWD L4 1.9L (Diesel)
Volkswagen Golf 2006-2007 6 Spd FWD L5 2.5L
Volkswagen GTI 2006-2012 1.6, 2.0, 2.5
Volkswagen GTI 2006 6 Spd FWD L4 2.0L
Volkswagen Jetta 2006-2017 1.9, 2.0, 2.5, 2.8
Volkswagen JETTA 1998-2016 6 Spd FWD L5 2.5L L4 1.9L DIESEL L4 2.0
Volkswagen Jetta (New) 2005-2006 6 Spd FWD L4 1.9L (Diesel)
Volkswagen Jetta (New) 2005-2006 6 Spd FWD L5 2.5L
Volkswagen Multivan 2003-2007 6 Spd FWD 2.5LTD, 3.2L VR6
Volkswagen New Beetle 2004-2007 6 Spd FWD L4 1.8LD 1.9LD 2.0LP
Volkswagen NEW BEETLE 1997-2016 6 Spd FWD L4 1.8/2.0L L5 2.5L
Volkswagen Passat 2006-2017 1.8, 2.0
Volkswagen Passat 2006-2013 3.6
Volkswagen PASSAT 2006-2008 6 Spd F/AWD V6 3.6L
Volkswagen Passat 2006-2007 6 Spd FWD L4 2.0L
Volkswagen Passat 2006-2007 6 Spd FWD/AWD V6 3.6L
Volkswagen PASSAT 2005-2012 6 Spd FWD L4 2.0L V6 3.6L
Volkswagen POLO 2002-2014 6 Spd FWD L4 1.4L/1.6L
Volkswagen Rabbit 2006-2013 2.5
Volkswagen Tiguan 2009-2017 2.0
Volkswagen TIGUAN 2009-2012 6 Spd FWD L4 1.8L
Volkswagen Tiguan 2008-2012 1.8
Volkswagen TIGUAN 2008-2009 6 Spd F/AWD L4 2.0L
Volkswagen TIGUAN 2007-2016 6 Spd F/4WD L4 1.8/2.0L
Volkswagen Touran 2003-2008 1.6, 1.9
Volkswagen TOURAN 2003-2006 6 Spd FWD L4 1.6L/1.9L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

GKC
JUA
KGL
KGQ
GHE
JUG
JUJ
MAM
JTV
TF 60SN
GKB
HTQ
HLP
QDJ
HXJ
JZV
NTJ
GJY
HRN
JTW
09G
KGT
JTZ
KLQ
AQ250-6F
KGN
GSY
HVW
QDM
SCW
TF-60SN+
HTK
TF60 SN+
GXY
AQ 250
HXK
KGM
TF60-SN+
KGR
FXA
TF-60SN
HFZ
JUF
KGK
HTN
KPH
QNQ
AQ160-6F
MFZ
LDH
AQ 160
JUD
QNZ
PDW
KGJ
JTY
QCE
KGV
QEM
HFS
JUH
SCU
HFX
QBT
QNY
KGS
JUC
TF60SN
FUH
KGU
JUB
GGZ
HFY
MAN
GJZ
KBV
HFR
TF60SN+
FUJ
QPA
HTM
HGA
PLS
HRM
QAW
GJX
PAL
HTP
HMD
HFT
KGH
HTU
JUN
SGU
AQ450
HQD
HQE
MKD
HTY
MYY
HTZ
JBG
KFE
QNT
09M
JVZ
QNS
QNU
JUP
QNW
SGV
AQ 450
KFD
MYZ
JWA
QNR
QNV
GA6F21AW
GA6F21WA
AW TF 60SN
AISIN TF-60SN
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
K2 Piston and Retainer Failure
K2 (C2) clutch pack piston/retainer pair fails frequently; K1 and K3 retainers also affected, requiring replacement.
!
Torque Converter ATF Contamination
Lockup clutch slippage generates friction lining debris contaminating ATF with hard sticky powder, degrading fluid.
!
Valve Body Solenoid Wear
Solenoids and valves wear or clog causing abnormal operation; rebushing with repair kit required.
?
4-5-6 Speed Shift Problems
Valve body malfunction manifests as erratic or failed shifts in 4th, 5th, and 6th gears.
?
DTC Codes P0734 P0735 P0729
Error codes P0734, P0735, P0729 indicate worn or clogged valve body solenoids and valves.
?
Torque Converter Slippage From 3rd Gear
Stage 1 failure: torque converter friction activates with slippage from 3rd gear before RPM synchronization occurs.
!
Transmission Pump Bushing Wear
Uneven friction lining wear causes vibrations leading to axle deformation, surface damage, and bushing cranking in pump.
!
Sun Gear and Rear Cover Bushings
Sun gear, rear cover, pump, and K3 (C3) package bushings are most deformed; full 5-piece kit replacement needed.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 09G (TF60-SN - according to Aisin Co classification) is the first 6-speed transmission which has been used since 2003 for virtually all FWD cars of Volkswagen and Audi family (A3, A4 and TT) with engine capacity from 1.4 up to 2.0 liters (Mini Cooper, Skoda Fabia, Polo)

The 09G is designed for torque up to 280 Nm.This solution is the successor of 5-speed AW55-50. It competes with the German transmission ZF 6HP19-/21 and considered to be more durable and relatively cheap in repair.

Technical issues and repair guidelines

The 09K and 09M sub-modifications were released after testing and upgrade of the 09G transmission. They were used together with engines with the capacity equal up to 3.5 liters (TF-62SN -61SN, Passat, Superb, Transporter). Many other modifications of this transmission, which differ mainly in electric components and the valve body construction, can be encountered in the repair shops. Peculiarities of the TF60SN transmission are typical for most of 6-speed transmissions and are associated with fast ATF contamination by the friction lining of the torque converter which operates with slipping of the lockup clutch, and when the engine operates under unusually high temperature. The torque converter is rebuilt during each overhaul.

Typical repair procedures for the 09G (TF-61SN \TF-60SN) transmission

Typical overhaul of the 09G transmission involves reassembly and replacement of following spare parts:

  • A set of 4 problematic pistons consisting of a piston / retainer pair for a problematic package K2 (C2) and retainers of clutches K1 and K3 is almost always changed together with seals and gaskets (overhaul kit). It is recommended to replace friction clutches together when the K2 package burns out completely and the rest of friction linings are stained with burnt ATF
  • Abnormal operation of the TF60-SN valve body often manifests itself in problems with 4-5-6 speeds. Error codes - P0734, P0735 or P0729 signal that solenoids and valves of the valve body are worn / clogged. The solenoids are rebushed with the help of the Bushings Repair Kit.
  • The transmission pump is the next stage in the repair process. The axle deformation, surface damage and bushing cranking are caused by an uneven wear out of friction lining and related thereto vibrations. The tool kit of bushings (5 pieces) also gets replaced. The most deformed bushings are: bushings of sun gear, rear cover, pump, and package K3 (C3).

The typical malfunction can be described as follows:

1-st stage. The torque converter friction gets actuated with slippage starting from the 3-rd gear, without waiting for the levelling of the transmission and engine shaft RPM. The friction element gets damaged and contaminates ATF with hard and sticky powder.

2-nd stage. Plungers and valves get blocked and give less oil pressure to one of the packages, and as a result, worn parts have leakages, oil overflows, critical decrease of pressure in the clutch packs.

One of the most complicated cases is the wearout of the valve body and/or one of its irreplaceable components. Then it is required to change the entire valve body. Another reason the valve body failure is the replacement of solenoids which exhausted their performance potential. Preliminary, it is required to check the wiring and electrics contacts. It is rare that problems are caused by the shaft speed sensors ISS and OSS, they are cleaned and the ATF is washed off. The replacement of pump and semi-axle seals is also performed quite frequently.

The pump bushing (46.9x43.9x14.8) is replaced, if the wear-out reaches 0.10 mm. First of all, friction components and clutch steel discs K2 4-5-6 (C2) are examined for wear. Clearances in clutch packages affect the quality of switching and hard parts wear-out. It is required to change the Piston K2 (C2) and the retainer. The retainer K1 is also replaced quite frequently. The cause of this problem is solved by replacing the repair clutch of the rear cover. It is more rarely that you have to replace spare parts of the K3 package. In many cases, the clutch drum wear-out leads to some kicks (impact) while shifting gears. The factory clearance (gap) is 1.4 mm. When the clearance (gap) increases up to 1.8 mm, then kicks become noticeable. Such friction components are replaced to stop the wearout chain reaction.

Problems with the rear planetary gear are mainly explained by slipping of insufficiently lubricated bushings. The torque converter is one of the typical problems for 6-speed automatic transmissions. It works with a wide “slippage mode”. The pressure for blocking is provided not by simple electric valve, but by the PWM solenoid. This mode of operation increases the car efficiency, but enormously speeds up the process of wear-out for the torque converter friction lining.
