A540E Pinion 87730F (16 Teeth)
Catalog name:

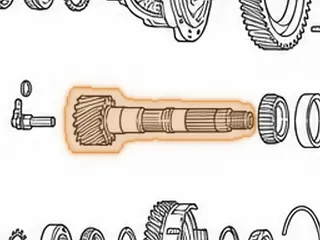

Pinion, A540 (16 Teeth) 3 Grooves Next To End (1.350” Wide Gear)
Part # 87730F
Type:
Gear
Transmissions:
A540E, A541E, A55
Size:
16 Teeth; 1.350” Wide Gear
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 87730F | WIT | ✓ catalog |
| 41211-32061 | OEM | ✓ catalog |
Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| A540E | 730 | A540E |
Other parts in A540E position 730:
- 87730 Pinion, A540 (16 Teeth) 3 Groove Next To End (1.500” Wide Gear)
- 87730A Pinion, A540 (17 Teeth) 3 Groove
- 87730B Pinion, A540 (15 Teeth) 3 Groove, One Next To Bearing
- 87730BA Pinion, A540 (15 Teeth) 2 Grooves Next To Bearing
- 87730C Pinion, A540 (15 Teeth) 4 Groove (1.530” Gear Length)
- 87730CA Pinion, A540 (15 Teeth) 4 Groove (1.380” Gear Length)
- 87730D Pinion, A540 (16 Teeth) 1 Groove Next To Bearing
- 87730E Pinion, A540 (14 Teeth) 2 Groove (1.500” Gear Length)
- 87730EA Pinion, A540 (14 Teeth) 2 Groove (1.405” Gear Length)
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
