RE7R01A B1 Brake Clutch Piston 283961A (8 Legs)
Catalog name:
Piston, RE7R01A B1 Brake Clutch (8 Legs)(16 Spring Pockets) (7 1/2”OD)(6 1/2”ID) (1.585”Tall) 2008-Up
Part # 283961A
Type:
Clutch, piston, spring
Transmissions:
Years:
2008-Up
Size:
7 1/2”OD; 6 1/2”ID; 1.585”Tall
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 283961A | WIT | ✓ catalog |
Where it fits

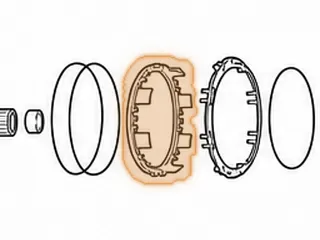

| Diagram | Position | Transmission page |
|---|---|---|
| RE7R01A | 961 | RE7R01A |
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
