A761 Bearing W/Race 117232B (.320”Thick, 1.605”OD, .842”ID)
Catalog name:
Bearing W/Race, A761 Forward Drum To Inner Sprag Race (.320”Thick, 1.605”OD, .842”ID) 2004-Up
Part # 117232B
Type:
Bearing, drum, sprag
Transmissions:
A750E, A750F, A761, TB-50LS, TB-61SN
Years:
2004-Up
Size:
.320”Thick, 1.605”OD, .842”ID
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 117232B | WIT | ✓ catalog |

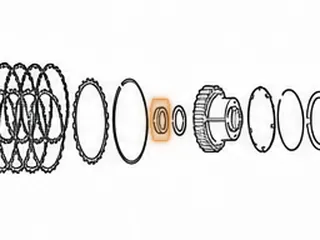

Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| A761 | 232 | — |
| TB-50LS | 232 | — |
| TB-61SN | 232 | — |
Other parts in A761 position 232:
- 117232A Bearing W/Race, A750 Forward Drum To Forward Hub (.320”Thick, 1.605”OD, .850”ID) (W/4 Notches) 2003-Up
Other parts in TB-50LS position 232:
- 117232A Bearing W/Race, A750 Forward Drum To Forward Hub (.320”Thick, 1.605”OD, .850”ID) (W/4 Notches) 2003-Up
Other parts in TB-61SN position 232:
- 117232A Bearing W/Race, A750 Forward Drum To Forward Hub (.320”Thick, 1.605”OD, .850”ID) (W/4 Notches) 2003-Up
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
