Transmission general data

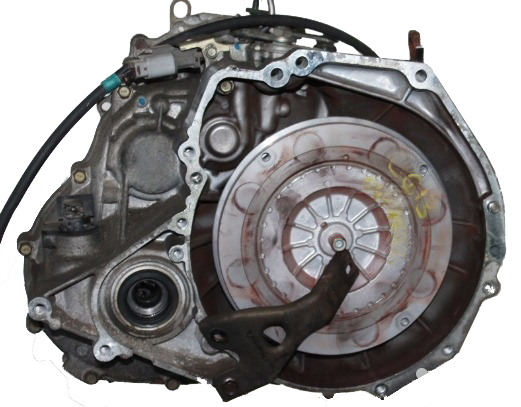

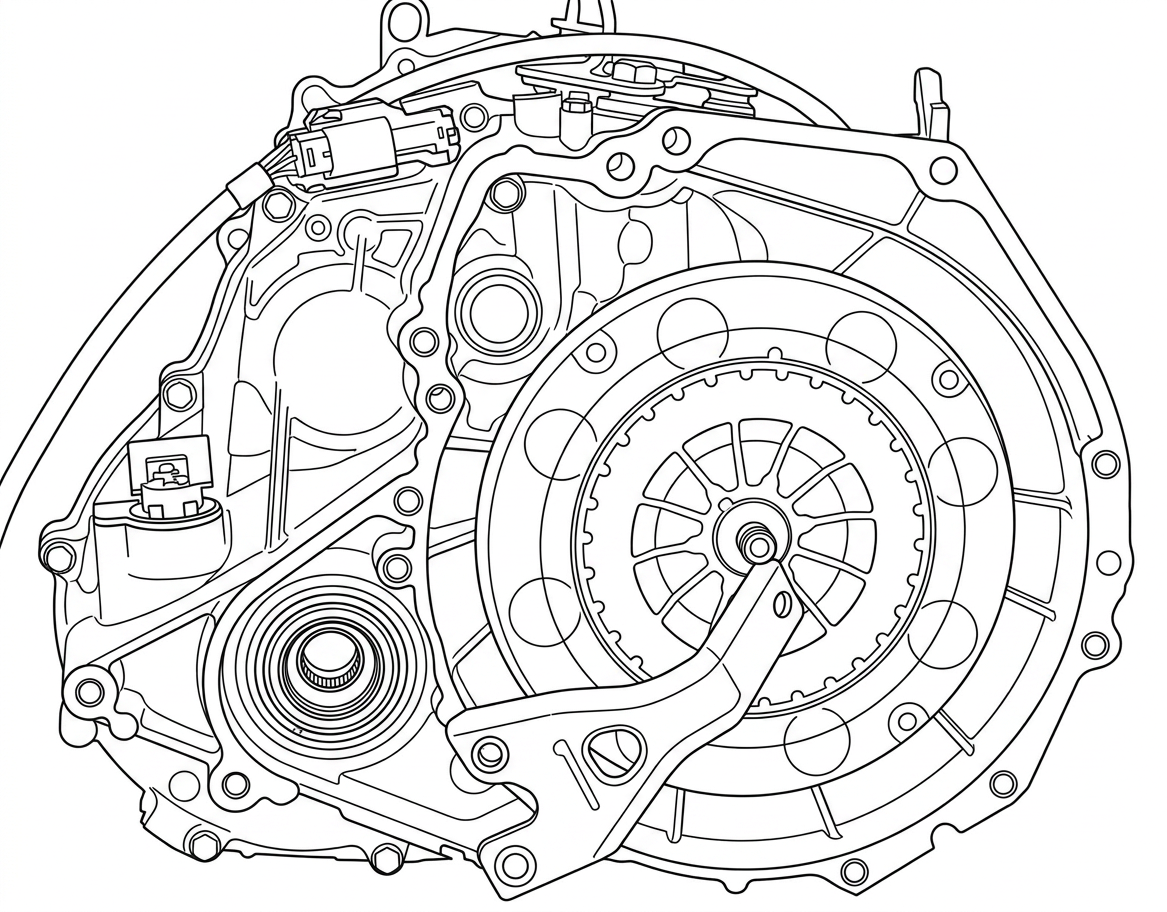

Jatco CVT RE0F05A (also known as NCVT) is commonly installed on small cars with engines having the capacity up to 1500 cm3. In terms of control, this transmission is fully hydraulic, i.e it includes the block of hydraulic valves like in standard automatic transmissions, but the transmission operation is performed thanks to movement of the main pulley.
| Number of gears | Transmission Type | Drive | Torque (Nm) | ATF (full capacity) L | ATF (change) L | ATF type |
|---|---|---|---|---|---|---|
| ∞ | CVT | FWD | 135 | 3,2 | 3 | D Fluid N-CVT |
The main problem of this transmission lies in increase or decrease of the gear ratio, like an emergency mode (2-nd gear). The repair of this transmission should be performed by professionals on a special bench.
