MB1 Transmission parts, repair guidelines, problems, manuals
Transmission general data

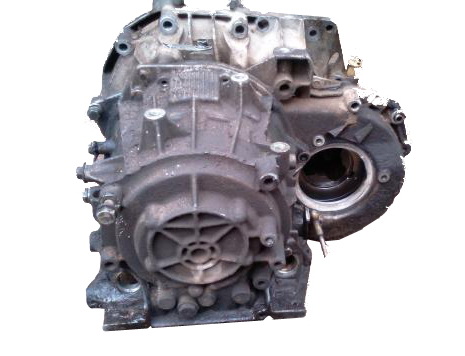

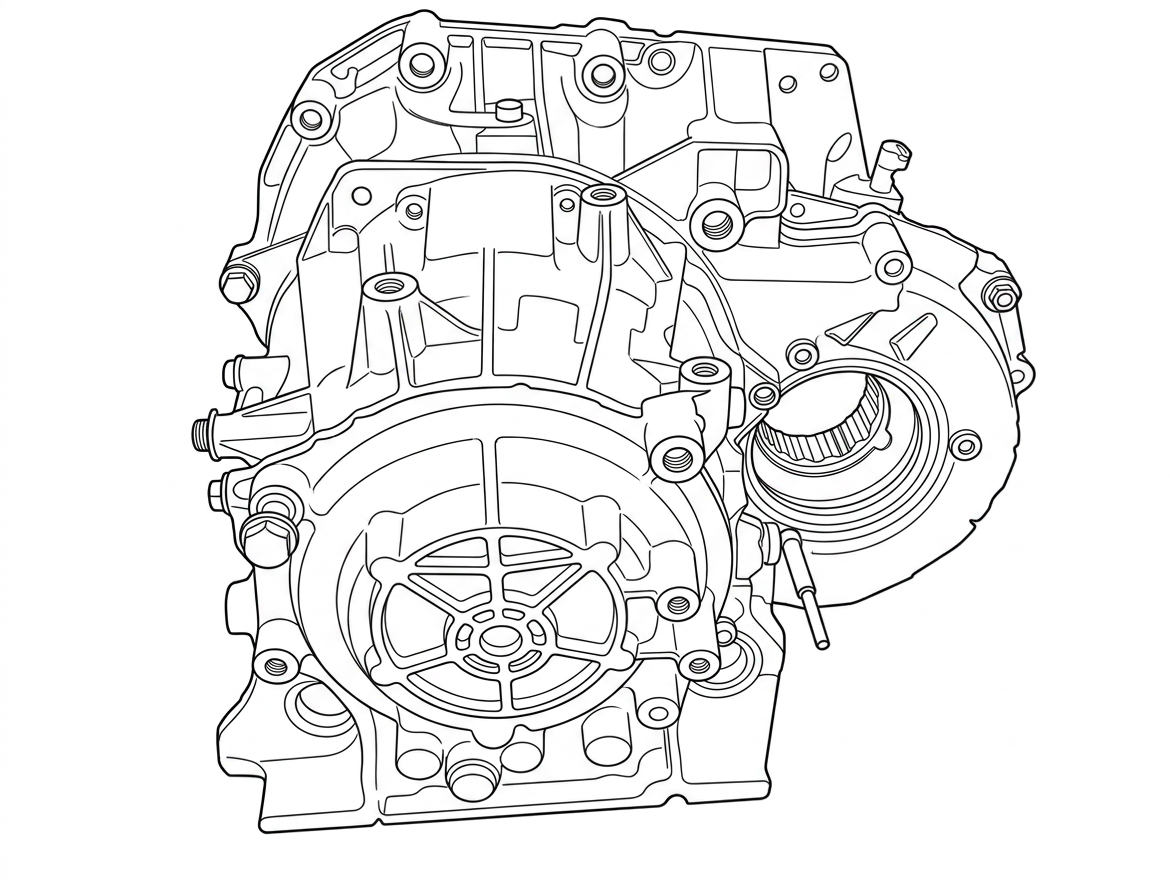

The 3-speed automatic transmission Renault MB1 was
released in the early 1980-s. This transmission was used for many Renault
vehicles, such as Renault 5, 9, 11, 19, Clio and Twingo.
This transmission has 3 forward gears and 1 reverse gear which are combined in the uniform unit with the drive gear and electronically-controlled differential. The oil pump is activated by the engine shaft via the torque converter and transmits the oil under pressure to the gearbox, where it is used as a lubricant and for controlling actuators.
| Number of gears | Transmission Type | Drive | Torque (Nm) | ATF (full capacity) L | ATF (change) L | ATF type |
|---|---|---|---|---|---|---|
| 3 | AT | FWD | 150 | 5,1 | 3,5 | Dexron III |
Technical issues and repair guidelines
The most widespread malfunctions of MB1:
• Gear fails to switch on. Any malfunction of solenoid-controlled valves of the hydraulic distributor switches the automatic transmission into emergency mode.
• Oil leakages. In many cases car owners are bothered by ATF leakages. Usually the oil leaks at the junction of the motor and the automatic transmission.
• Critical breakdowns. Low oil level and the pressure loss caused by the valve breakdown lead to burn-out of friction plates.
• Shifting failure. A poor valve body breaks before reaching 100 thousand kilometers. This problem has the following symptoms: jerks, kicks and failure of some gears.
According to transmission repair specialists the resource of this transmission is equal to 100 - 150 thousand kilometers, but it is very unlikely that this transmission will cover such distance without any repairs.
Which cars run with this gearbox?
| Brand | Model | Year | Type | Engine |
|---|---|---|---|---|
| Renault | R19 | 00-01 | 3 SP FWD | L4 1.4L |
