Transmission general data

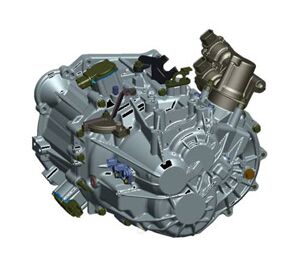

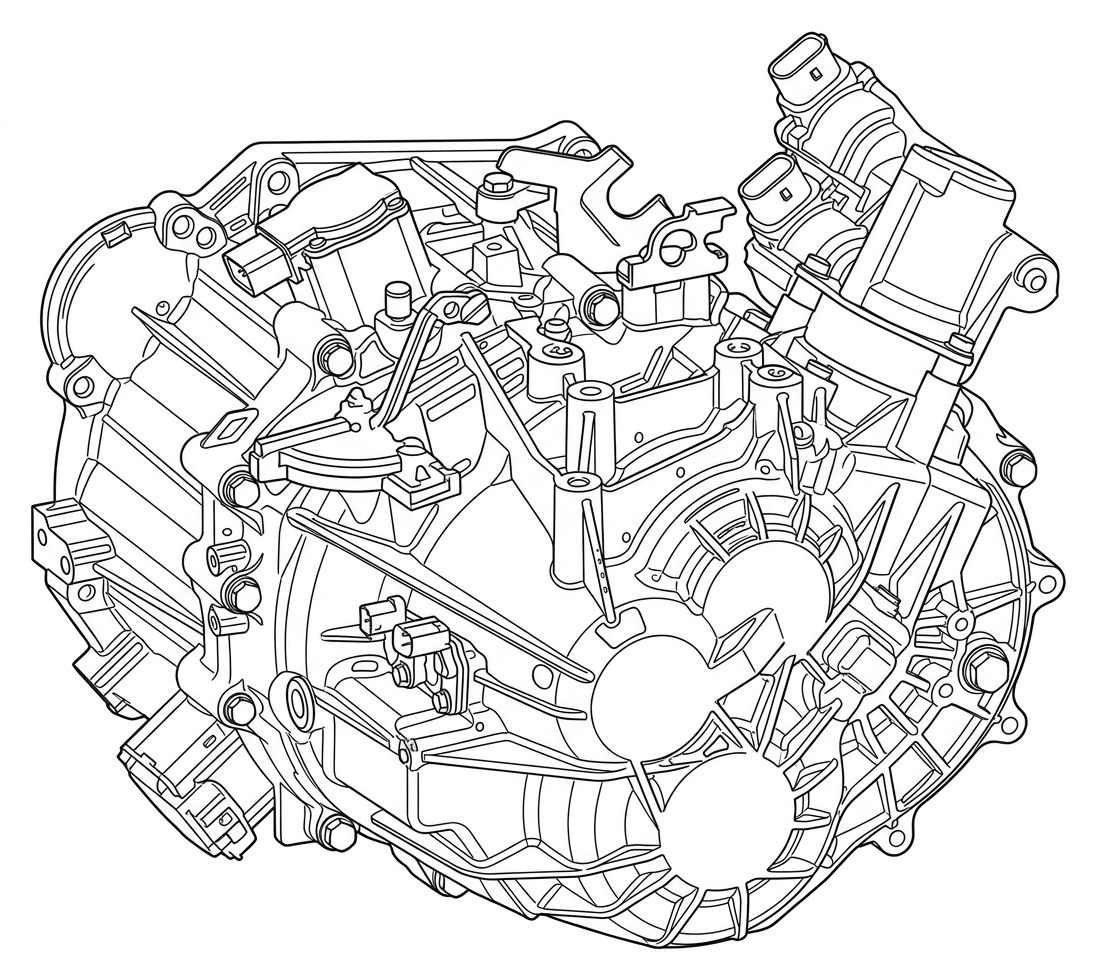

The 6-speed automated transmission HYUNDAI-KIA D6GF1 has been produced since 2012. In fact, this transmission is adaptation of the automated transmission produced by LuK. This transmission is coupled with 2.0 liter engines. The maximum torque transmitting capacity reaches up to 270 Nm. This transmission was mainly installed in Kia Ceed JD (2012-2018).
| Number of gears | Transmission Type | Drive | Torque (Nm) | ATF (full capacity) L | ATF (change) L | ATF type |
|---|---|---|---|---|---|---|
| 6 | DCT | FWD | 270 | 1,9 | 1,9 | SAE 75W/85, API GL-4 |
Main problems:
- For some time after its release, the transmission had some malfunctions, but these issues were fixed;
- Manu drivers complain about jerks and delays while shifting gears;
- Some drivers had to deal with failures of even or odd gears;
- Sometimes the transmission gets stuck on some particular gear and fails to shift;
- Some car owners had to replace the clutch when the mileage reached 50 thousand kilometers;
- Price of original spare parts for this transmission is very high
Which cars run with this gearbox?
| Brand | Model | Year | Type | Engine |
|---|---|---|---|---|
| Hyundai | VELOSTER | 11-16 | 6 SP FWD | L4 1.6L |
| KIA | CEE'D | 12-16 | 6 SP FWD | L4 1.6L |
