Detent Spring, RE0F10E/F10J Linkage 2013-Up
Part # 323991-2A
Type:
Spring
Transmissions:
JF015E, JF017E, RE0F10J
Years:
2013-Up
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 323991-2A | WIT | ✓ catalog |

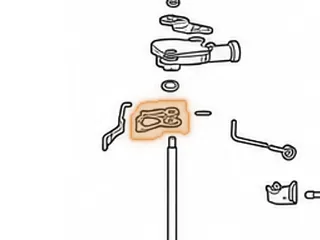

Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| JF015E | 991 | JF015E |
| JF017E | 991 | — |
| RE0F10J | 991 | — |
Other parts in JF015E position 991:
- 3239911A Lever, RE0F10A (JF011E) (Nissan/Dodge) Internal Linkage (2.240” Long)(.125”Thick) 2007-Up
- 3239913A Rooster Comb,RE0F11A (JF015E) (5 Detents)(.475”ID Hole)(.755”Thick) 2013-16
- 3239914A Shaft, RE0F11A (JF015E) Linkage (14” Long)(.470”OD) 2013-16
- 3239915A Pin, RE0F11A (JF015E) Holds Linkage Shaft In Case (1.395”Long)(.115”OD) 2013-16
- 3239916A Pin, RE0F10A (JF011E) (Nissan/Dodge) Holds Rooster Comb To Shaft (1” Long)(.160”OD) 2007-Up
Other parts in JF017E position 991:
- 3239911A Lever, RE0F10A (JF011E) (Nissan/Dodge) Internal Linkage (2.240” Long)(.125”Thick) 2007-Up
- 3339913A Rooster Comb, RE0F10D (JF016E) (5 Detents)(.475”Hole) (.680”Thick)(3 Holes)(2.868”Long) 2013-Up
- 3339914A Shaft, RE0F10D (JF016E) Linkage (15”Long)(1 Groove)(1 Hole) (.450”/.470”OD) 2013-Up
- 3339915A Pin, RE0F10D (JF016E) Holds Shaft To Case (Solid)(.155”OD)(2.280”Long) 2013-Up
- 3239916A Pin, RE0F10A (JF011E) (Nissan/Dodge) Holds Rooster Comb To Shaft (1” Long)(.160”OD) 2007-Up
Other parts in RE0F10J position 991:
- 3239911A Lever, RE0F10A (JF011E) (Nissan/Dodge) Internal Linkage (2.240” Long)(.125”Thick) 2007-Up
- 3339913A Rooster Comb, RE0F10D (JF016E) (5 Detents)(.475”Hole) (.680”Thick)(3 Holes)(2.868”Long) 2013-Up
- 3339914A Shaft, RE0F10D (JF016E) Linkage (15”Long)(1 Groove)(1 Hole) (.450”/.470”OD) 2013-Up
- 3339915A Pin, RE0F10D (JF016E) Holds Shaft To Case (Solid)(.155”OD)(2.280”Long) 2013-Up
- 3239916A Pin, RE0F10A (JF011E) (Nissan/Dodge) Holds Rooster Comb To Shaft (1” Long)(.160”OD) 2007-Up
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
